Spring事务配置的五种方式

以前看过事务，没去具体的学，今天面试又遇到这个问题，这是在网上看到的一篇好文章，加了一点自己的见解，分享给大家

Spring配置文件中关于事务配置总是由三个组成部分，分别是DataSource、TransactionManager和代理机制这三部分，无论哪种配置方式，一般变化的只是代理机制这部分。

    DataSource、TransactionManager这两部分只是会根据数据访问方式有所变化，比如使用Hibernate进行数据访问时，DataSource实际为SessionFactory，TransactionManager的实现为HibernateTransactionManager。

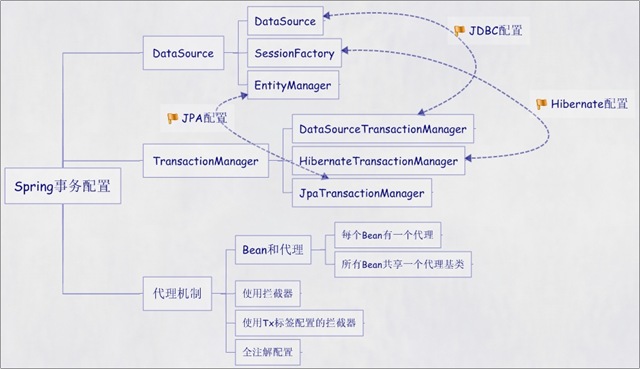

    具体如下图：



 根据代理机制的不同，总结了五种Spring事务的配置方式，配置文件如下：

    第一种方式：每个Bean都有一个代理

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
           http://www.springframework.org/schema/context
           http://www.springframework.org/schema/context/spring-context-2.5.xsd
           http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd">

    <bean id="sessionFactory"
            class="org.springframework.orm.hibernate3.LocalSessionFactoryBean">
        <property name="configLocation" value="classpath:hibernate.cfg.xml" />
        <property name="configurationClass" value="org.hibernate.cfg.AnnotationConfiguration" />
    </bean>

    <!-- 定义事务管理器（声明式的事务） -->
    <bean id="transactionManager"
        class="org.springframework.orm.hibernate3.HibernateTransactionManager">
        <property name="sessionFactory" ref="sessionFactory" />
    </bean>

    <!-- 配置DAO -->
    <bean id="userDaoTarget" class="com.bluesky.spring.dao.UserDaoImpl">
        <property name="sessionFactory" ref="sessionFactory" />
    </bean>

    <bean id="userDao"
        class="org.springframework.transaction.interceptor.TransactionProxyFactoryBean">
           <!-- 配置事务管理器 -->
           <property name="transactionManager" ref="transactionManager" />
        <property name="target" ref="userDaoTarget" />
         <property name="proxyInterfaces" value="com.bluesky.spring.dao.GeneratorDao" />
        <!-- 配置事务属性 -->
        <property name="transactionAttributes">
            <props>
                <prop key="*">PROPAGATION_REQUIRED</prop>
            </props>
        </property>
    </bean>
</beans>

第二种方式：所有Bean共享一个代理基类



<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
           http://www.springframework.org/schema/context
           http://www.springframework.org/schema/context/spring-context-2.5.xsd
           http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd">

    <bean id="sessionFactory"
            class="org.springframework.orm.hibernate3.LocalSessionFactoryBean">
        <property name="configLocation" value="classpath:hibernate.cfg.xml" />
        <property name="configurationClass" value="org.hibernate.cfg.AnnotationConfiguration" />
    </bean>

    <!-- 定义事务管理器（声明式的事务） -->
    <bean id="transactionManager"
        class="org.springframework.orm.hibernate3.HibernateTransactionManager">
        <property name="sessionFactory" ref="sessionFactory" />
    </bean>

    <bean id="transactionBase"
            class="org.springframework.transaction.interceptor.TransactionProxyFactoryBean"
            lazy-init="true" abstract="true">
        <!-- 配置事务管理器 -->
        <property name="transactionManager" ref="transactionManager" />
        <!-- 配置事务属性 -->
        <property name="transactionAttributes">
            <props>
                <prop key="*">PROPAGATION_REQUIRED</prop>
            </props>
        </property>
    </bean>

    <!-- 配置DAO -->
    <bean id="userDaoTarget" class="com.bluesky.spring.dao.UserDaoImpl">
        <property name="sessionFactory" ref="sessionFactory" />
    </bean>

    <bean id="userDao" parent="transactionBase" >
        <property name="target" ref="userDaoTarget" />
    </bean>
</beans>

第三种方式：使用拦截器

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
           http://www.springframework.org/schema/context
           http://www.springframework.org/schema/context/spring-context-2.5.xsd
           http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd">

    <bean id="sessionFactory"
            class="org.springframework.orm.hibernate3.LocalSessionFactoryBean">
        <property name="configLocation" value="classpath:hibernate.cfg.xml" />
        <property name="configurationClass" value="org.hibernate.cfg.AnnotationConfiguration" />
    </bean>

    <!-- 定义事务管理器（声明式的事务） -->
    <bean id="transactionManager"
        class="org.springframework.orm.hibernate3.HibernateTransactionManager">
        <property name="sessionFactory" ref="sessionFactory" />
    </bean>

    <bean id="transactionInterceptor"
        class="org.springframework.transaction.interceptor.TransactionInterceptor">
        <property name="transactionManager" ref="transactionManager" />
        <!-- 配置事务属性 -->
        <property name="transactionAttributes">
            <props>
                <prop key="*">PROPAGATION_REQUIRED</prop>
            </props>
        </property>
    </bean>

    <bean class="org.springframework.aop.framework.autoproxy.BeanNameAutoProxyCreator">
        <property name="beanNames">
            <list>
                <value>*Dao</value>
            </list>
        </property>
        <property name="interceptorNames">
            <list>
                <value>transactionInterceptor</value>
            </list>
        </property>
    </bean>

    <!-- 配置DAO -->
    <bean id="userDao" class="com.bluesky.spring.dao.UserDaoImpl">
        <property name="sessionFactory" ref="sessionFactory" />
    </bean>
</beans>



第四种方式：使用tx标签配置的拦截器

<? xml version="1.0" encoding="UTF-8" ?>
< beans  xmlns ="http://www.springframework.org/schema/beans"
    xmlns:xsi ="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context ="http://www.springframework.org/schema/context"
    xmlns:aop ="http://www.springframework.org/schema/aop"
    xmlns:tx ="http://www.springframework.org/schema/tx"
    xsi:schemaLocation ="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
           http://www.springframework.org/schema/context
           http://www.springframework.org/schema/context/spring-context-2.5.xsd
           http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd
           http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd" >

     < context:annotation-config  />
     < context:component-scan  base-package ="com.bluesky"   />

     < bean  id ="sessionFactory"
            class ="org.springframework.orm.hibernate3.LocalSessionFactoryBean" >
         < property  name ="configLocation"  value ="classpath:hibernate.cfg.xml"   />
         < property  name ="configurationClass"  value ="org.hibernate.cfg.AnnotationConfiguration"   />
     </ bean >

     <!--  定义事务管理器（声明式的事务）  -->
     < bean  id ="transactionManager"
        class ="org.springframework.orm.hibernate3.HibernateTransactionManager" >
         < property  name ="sessionFactory"  ref ="sessionFactory"   />
     </ bean >
     <!--tx中属性method定于对于哪些方法定义什么样的规则，像以get开头的读取方法我们一般不加事务，事务也会影响性能，

     read-only定为只能读（其实可以不加），而其他的方法都要加事务-->
     < tx:advice  id ="txAdvice"  transaction-manager ="transactionManager" >
         < tx:attributes >
             < tx:method  name ="*"  propagation ="REQUIRED"   />

   <tx:method name="get*" read-only="true" propagation="NOT_SUPPORTED" />
         </ tx:attributes >
     </ tx:advice >
    <!--aop中的变量定义事务的处理对象，在哪个层次的类加事务 -->
     < aop:config >
         < aop:pointcut  id ="interceptorPointCuts"
            expression ="execution(* com.bluesky.spring.dao.*.*(..))"   />
         < aop:advisor  advice-ref ="txAdvice"
            pointcut-ref ="interceptorPointCuts"   />
     </ aop:config >
</ beans >

第五种方式：全注解

<? xml version="1.0" encoding="UTF-8" ?>
< beans  xmlns ="http://www.springframework.org/schema/beans"
    xmlns:xsi ="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context ="http://www.springframework.org/schema/context"
    xmlns:aop ="http://www.springframework.org/schema/aop"
    xmlns:tx ="http://www.springframework.org/schema/tx"
    xsi:schemaLocation ="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
           http://www.springframework.org/schema/context
           http://www.springframework.org/schema/context/spring-context-2.5.xsd
           http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd
           http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd" >

     < context:annotation-config  />
     < context:component-scan  base-package ="com.bluesky"   />

     < tx:annotation-driven  transaction-manager ="transactionManager" />

     < bean  id ="sessionFactory"
            class ="org.springframework.orm.hibernate3.LocalSessionFactoryBean" >
         < property  name ="configLocation"  value ="classpath:hibernate.cfg.xml"   />
         < property  name ="configurationClass"  value ="org.hibernate.cfg.AnnotationConfiguration"   />
     </ bean >

     <!--  定义事务管理器（声明式的事务）  -->
     < bean  id ="transactionManager"
        class ="org.springframework.orm.hibernate3.HibernateTransactionManager" >
         < property  name ="sessionFactory"  ref ="sessionFactory"   />
     </ bean >

</ beans >

此时在DAO上需加上@Transactional注解，如下：

package  com.bluesky.spring.dao;

import  java.util.List;

import  org.hibernate.SessionFactory;
import  org.springframework.beans.factory.annotation.Autowired;
import  org.springframework.orm.hibernate3.support.HibernateDaoSupport;
import  org.springframework.stereotype.Component;

import  com.bluesky.spring.domain.User;

@Transactional
@Component( " userDao " )
public   class  UserDaoImpl  extends  HibernateDaoSupport  implements  UserDao {

     public  List < User >  listUsers() {
         return   this .getSession().createQuery( " from User " ).list();
    }


}
