[转]单据套打WINFORM实现，带预览功能

本文转自：https://blog.csdn.net/lyflcear/article/details/22795053

昨天公司要打单子而不是以前的手写

为了实现这样的功能上网搜索了一下

http://blog.csdn.net/fwj380891124/article/details/8071801

这篇文章来入门，不过发现无法实现套打功能，把所有的信息都打出来了

 对代码进行了一定的调整，并且可以预览，去除了预览页面的打印功能

下面是我写的程序

1.      新建立一个WINFORM项目

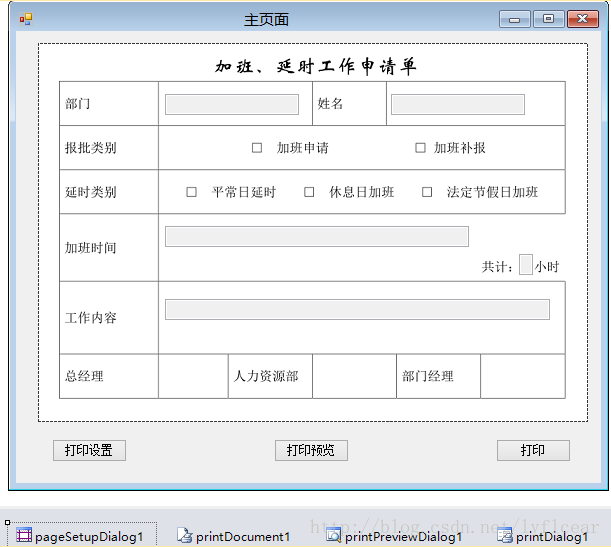

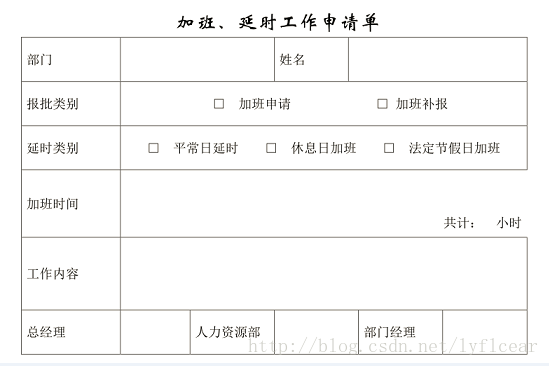

2.      添加一个panel 做为要打印的内容展示，背景设置为上面的图片

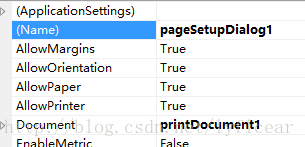

3.      增加printDocument1,printDialog1,printPreviewDialog1,pageSetupDialog1  Document设置为

4.      增加三个按钮，及几个textbox





private voidbutton1_Click(object sender, EventArgs e)
        {
            this.pageSetupDialog1.ShowDialog();
        }

        privatevoid button2_Click(objectsender,EventArgs e)
        {
            //注意指定其Document(获取或设置要预览的文档)属性
            this.printPreviewDialog1.Document=this.printDocument1;
            //ShowDialog方法：将窗体显示为模式对话框，并将当前活动窗口设置为它的所有者
            this.printPreviewDialog1.PrintPreviewControl.Zoom= 1.0;
            //将打印按钮重新设置
            ToolStriptool = this.printPreviewDialog1.Controls["toolStrip1"]asToolStrip;
            if(tool != null)
            {
                intindexPrint = tool.Items.IndexOfKey("printToolStripButton");
                if(indexPrint != -1)
                {
                 tool.Items[indexPrint].Visible = false;
                }
            }
            this.printPreviewDialog1.ShowDialog();
        }

        privatevoid button3_Click(objectsender,EventArgs e)
        {
            PrintDialogpdia = new PrintDialog();
             PrintDocumentpdoc =newPrintDocument();
            pdoc.PrintPage += newPrintPageEventHandler(printDocument_PrintPage);
            if(pdia.ShowDialog() ==DialogResult.OK)
            {
                pdoc.Print();
            }
        }

        privatevoid printDocument_PrintPage(object sender, System.Drawing.Printing.PrintPageEventArgs e)
        {
            Fontfont = new Font("宋体", 12);
            Brushbru = Brushes.Black;
            Imagebitmap = new Bitmap(panel1.BackgroundImage.Width,panel1.BackgroundImage.Height);
            Graphicsg = e.Graphics;  //先建立画布
            g.DrawImage(bitmap, 0, 0);
            intx = 0;//调整位置信息
            inty = 0;
            foreach(Control iteminpanel1.Controls)
            {
                if(item is TextBox)
                {
                    Controltx = (itemasControl);
                    g.DrawString(tx.Text,font,bru, tx.Left + x, tx.Top + y);
                }
            }
        }

        privatevoid printDocument1_PrintPage(object sender, System.Drawing.Printing.PrintPageEventArgs e)
        {
            Fontfont = new Font("宋体", 12);
            Brushbru = Brushes.Black;
            Graphicsg = e.Graphics;  //先建立画布
            intx = 0;
            inty = 0;
            g.DrawImage(panel1.BackgroundImage,0, 0);
            foreach(Control iteminpanel1.Controls)
            {
                if(item is TextBox)
                {
                    Controltx = (itemasControl);
                    g.DrawString(tx.Text, font,bru, tx.Left + x, tx.Top + y);
                }
            }
        }

 为了方便大家改写可去下载项目文件及源代码
