单路电机
#include <Servo.h> Servo myservo; // 定义Servo对象来控制 int pos = 0; // 角度存储变量 void setup() { myservo.attach(9); // 控制线连接数字9 } void loop() { for (pos = 0; pos <= 180; pos ++) { // 0°到180° // in steps of 1 degree myservo.write(pos); // 舵机角度写入 delay(5); // 等待转动到指定角度 } for (pos = 180; pos >= 0; pos --) { // 从180°到0° myservo.write(pos); // 舵机角度写入 delay(5); // 等待转动到指定角度 } }
额外说明: 对于360度舵机 不再是 0-180控制角度,90度停止 0一个方向最大速度转,180另一个方向最大速度转
myservo.write(80); //前转 myservo.write(90); //停止 myservo.write(90); //后转
串口获取消息
#include <Servo.h> Servo myservo4; Servo myservo5; Servo myservo6; void go4(){ myservo4.write(0); delay(2000); myservo4.write(90); delay(1000); } void go5(){ myservo5.write(0); delay(1000); myservo5.write(90); delay(1000); myservo5.write(180); delay(1000); myservo5.write(90); delay(1000); myservo5.write(0); delay(1000); } void go6(){ myservo6.write(0); delay(1000); myservo6.write(90); delay(1000); myservo6.write(180); delay(1000); myservo6.write(90); delay(1000); myservo6.write(0); delay(1000); } void do_motor(String comdata){ if(comdata=="motor1"){ go4(); } else if(comdata=="motor2"){ go5(); } else if(comdata=="motor3"){ go6(); } else{} } void setup() { //硬串口 Serial.begin(9600); myservo4.attach(4); myservo5.attach(5); myservo6.attach(6); myservo4.write(90);//S舵机不一样 90代表停止 myservo5.write(0);//普通舵机 初始化0位置 myservo6.write(0);//普通舵机 初始化0位置 } String comdata; void loop() { if(Serial.available()>0){ comdata = Serial.readString(); Serial.println(comdata); do_motor(comdata); comdata = ""; } }
16路电机

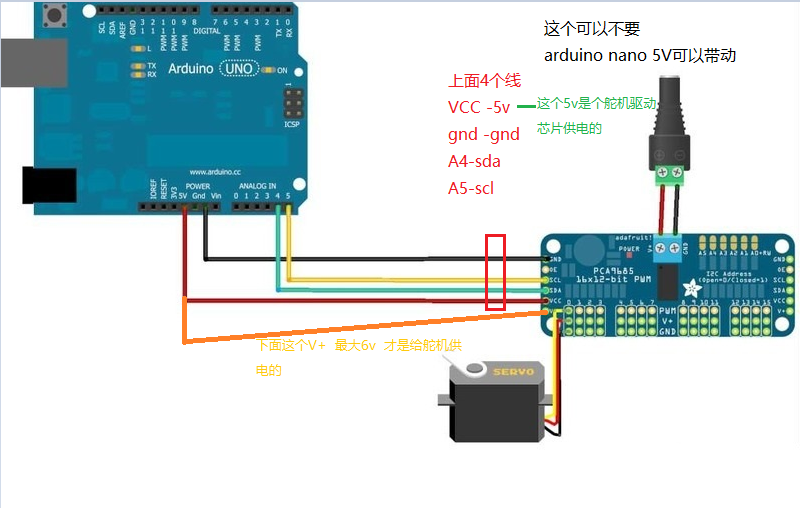

由于Arduino的驱动能力有限,当需要控制多个舵机时,需要外接电源以及使用专用的舵机控制板。
https://item.taobao.com/item.htm?spm=a1z09.2.0.0.435e2e8dKDHquW&id=536890985912&_u=21qf7bf5b2a1
无论是电脑USB供电还是专门12v-2A供电 都可以

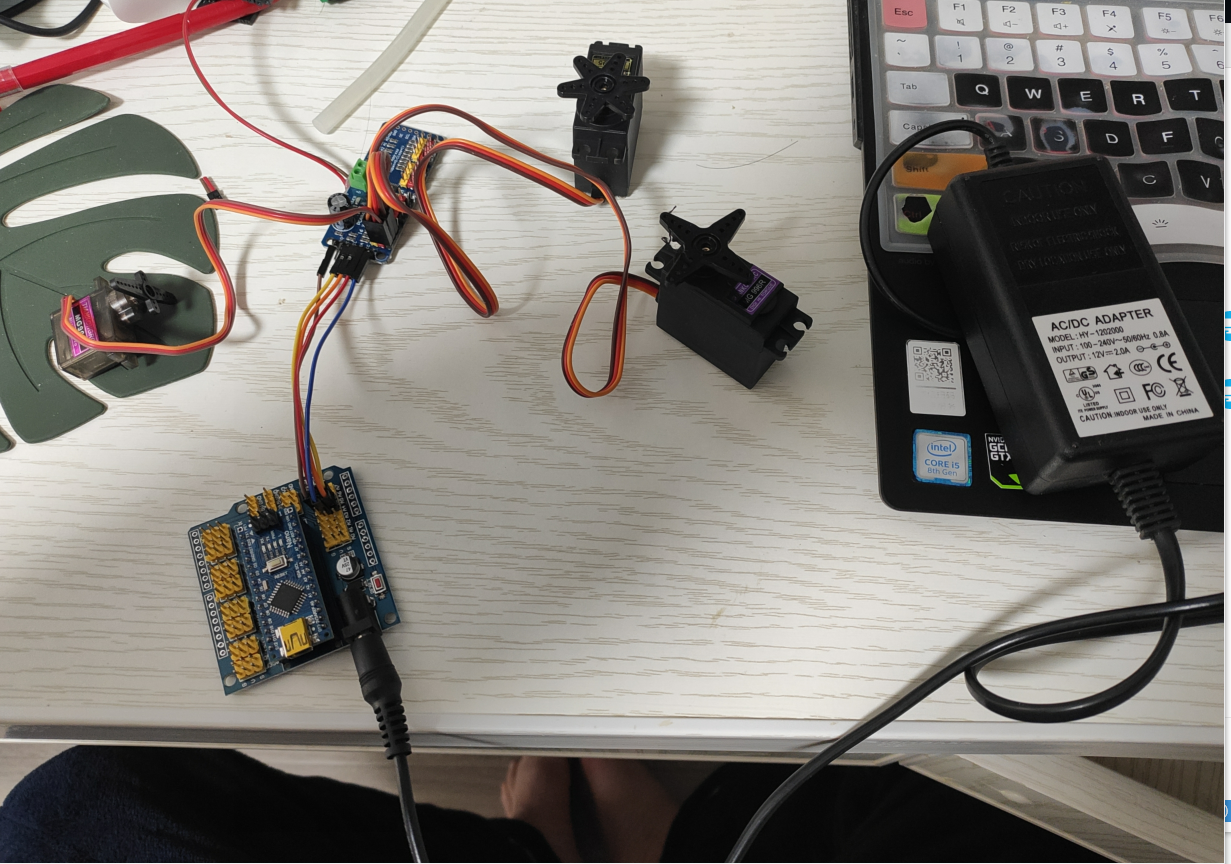

板子可以级练控制多个
安装库
/*************************************************** This is an example for our Adafruit 16-channel PWM & Servo driver Servo test - this will drive 8 servos, one after the other on the first 8 pins of the PCA9685 Pick one up today in the adafruit shop! ------> http://www.adafruit.com/products/815 These drivers use I2C to communicate, 2 pins are required to interface. Adafruit invests time and resources providing this open source code, please support Adafruit and open-source hardware by purchasing products from Adafruit! Written by Limor Fried/Ladyada for Adafruit Industries. BSD license, all text above must be included in any redistribution ****************************************************/ #include <Wire.h> #include <Adafruit_PWMServoDriver.h> // called this way, it uses the default address 0x40 Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver(); // you can also call it with a different address you want //Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver(0x41); // you can also call it with a different address and I2C interface //Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver(0x40, Wire); //根据您的伺服品牌,最小和最大脉冲宽度可能会有所不同 调整它 #define SERVOMIN 150 // This is the 'minimum' pulse length count (out of 4096) #define SERVOMAX 600 // This is the 'maximum' pulse length count (out of 4096) #define SERVO_FREQ 50 // Analog servos run at ~50 Hz updates // our servo # counter uint8_t servonum = 0; void setup() { Serial.begin(9600); Serial.println("8 channel Servo test!"); pwm.begin(); //理论上内部振荡器是25MHz,但实际上不是 //非常精确。你可以调整这个数字直到 //你得到了你期望的频率! pwm.setOscillatorFrequency(27000000); // The int.osc. is closer to 27MHz pwm.setPWMFreq(SERVO_FREQ); // Analog servos run at ~50 Hz updates delay(10); } void loop() { Serial.println(servonum); for (uint16_t pulselen = SERVOMIN; pulselen < SERVOMAX; pulselen++) { pwm.setPWM(servonum, 0, pulselen); } delay(500); for (uint16_t pulselen = SERVOMAX; pulselen > SERVOMIN; pulselen--) { pwm.setPWM(servonum, 0, pulselen); } delay(500); servonum++; if (servonum > 3) servonum = 0; // Testing the first 8 servo channels }
/*************************************************** This is an example for our Adafruit 16-channel PWM & Servo driver Servo test - this will drive 8 servos, one after the other on the first 8 pins of the PCA9685 Pick one up today in the adafruit shop! ------> http://www.adafruit.com/products/815 These drivers use I2C to communicate, 2 pins are required to interface. Adafruit invests time and resources providing this open source code, please support Adafruit and open-source hardware by purchasing products from Adafruit! Written by Limor Fried/Ladyada for Adafruit Industries. BSD license, all text above must be included in any redistribution ****************************************************/ #include <Wire.h> #include <Adafruit_PWMServoDriver.h> // called this way, it uses the default address 0x40 Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver(); // you can also call it with a different address you want //Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver(0x41); // you can also call it with a different address and I2C interface //Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver(0x40, Wire); // Depending on your servo make, the pulse width min and max may vary, you // want these to be as small/large as possible without hitting the hard stop // for max range. You'll have to tweak them as necessary to match the servos you // have! #define SERVOMIN 150 // This is the 'minimum' pulse length count (out of 4096) #define SERVOMAX 600 // This is the 'maximum' pulse length count (out of 4096) #define USMIN 600 // This is the rounded 'minimum' microsecond length based on the minimum pulse of 150 #define USMAX 2400 // This is the rounded 'maximum' microsecond length based on the maximum pulse of 600 #define SERVO_FREQ 50 // Analog servos run at ~50 Hz updates // our servo # counter uint8_t servonum = 0; void setup() { Serial.begin(9600); Serial.println("8 channel Servo test!"); pwm.begin(); // In theory the internal oscillator is 25MHz but it really isn't // that precise. You can 'calibrate' by tweaking this number till // you get the frequency you're expecting! pwm.setOscillatorFrequency(27000000); // The int.osc. is closer to 27MHz pwm.setPWMFreq(SERVO_FREQ); // Analog servos run at ~50 Hz updates delay(10); } // You can use this function if you'd like to set the pulse length in seconds // e.g. setServoPulse(0, 0.001) is a ~1 millisecond pulse width. It's not precise! void setServoPulse(uint8_t n, double pulse) { double pulselength; pulselength = 1000000; // 1,000,000 us per second pulselength /= SERVO_FREQ; // Analog servos run at ~60 Hz updates Serial.print(pulselength); Serial.println(" us per period"); pulselength /= 4096; // 12 bits of resolution Serial.print(pulselength); Serial.println(" us per bit"); pulse *= 1000000; // convert input seconds to us pulse /= pulselength; Serial.println(pulse); pwm.setPWM(n, 0, pulse); } void loop() { // Drive each servo one at a time using setPWM() Serial.println(servonum); for (uint16_t pulselen = SERVOMIN; pulselen < SERVOMAX; pulselen++) { pwm.setPWM(servonum, 0, pulselen); } delay(500); for (uint16_t pulselen = SERVOMAX; pulselen > SERVOMIN; pulselen--) { pwm.setPWM(servonum, 0, pulselen); } delay(500); // Drive each servo one at a time using writeMicroseconds(), it's not precise due to calculation rounding! // The writeMicroseconds() function is used to mimic the Arduino Servo library writeMicroseconds() behavior. for (uint16_t microsec = USMIN; microsec < USMAX; microsec++) { pwm.writeMicroseconds(servonum, microsec); } delay(500); for (uint16_t microsec = USMAX; microsec > USMIN; microsec--) { pwm.writeMicroseconds(servonum, microsec); } delay(500); servonum++; if (servonum > 3) servonum = 0; // Testing the first 8 servo channels }
不使用扩展版
#include <Servo.h> Servo myservo; // create servo object to control a servo Servo myservo1; int pos = 0; // variable to store the servo position void setup() { Serial.begin(9600); myservo.attach(9); // attaches the servo on pin 9 to the servo object myservo.write(90); myservo1.attach(7); delay(15); } void loop() { char ch = Serial.read(); switch(ch){ case 's': { myservo.write(80); delay(1000); Serial.println("N is inputed"); myservo.write(90); myservo1.write(0); delay(1000); break; } case 'n': { myservo.write(100); delay(1000); Serial.println("S is inputed"); myservo.write(90); myservo1.write(180); delay(1000); break; } } }
