參考Netty API
A list of ChannelHandlers which handles or intercepts inbound events and outbount operations of aChannel.ChannelPipeline
implements an advanced form of theIntercepting Filter pattern to give a user full control over how an event is handled and how theChannelHandlers
in a pipeline interact with each other.
Creation of a pipeline
Each channel has its own pipeline and it is created automatically when a new channel is created.How an event flows in a pipeline
The following diagram describes how I/O events are processed by ChannelHandlers in aChannelPipeline typically. An I/O event is handled
by either aChannelInboundHandler or aChannelOutboundHandler and be forwarded to its closest handler by calling the event propagation methods
defined inChannelHandlerContext, such asChannelHandlerContext.fireChannelRead(Object) andChannelHandlerContext.write(Object).
I/O Request
via Channel or
ChannelHandlerContext
|
+---------------------------------------------------+---------------+
| ChannelPipeline | |
| |/ |
| +---------------------+ +-----------+----------+ |
| | Inbound Handler N | | Outbound Handler 1 | |
| +----------+----------+ +-----------+----------+ |
| /| | |
| | |/ |
| +----------+----------+ +-----------+----------+ |
| | Inbound Handler N-1 | | Outbound Handler 2 | |
| +----------+----------+ +-----------+----------+ |
| /| . |
| . . |
| ChannelHandlerContext.fireIN_EVT() ChannelHandlerContext.OUT_EVT()|
| [ method call] [method call] |
| . . |
| . |/ |
| +----------+----------+ +-----------+----------+ |
| | Inbound Handler 2 | | Outbound Handler M-1 | |
| +----------+----------+ +-----------+----------+ |
| /| | |
| | |/ |
| +----------+----------+ +-----------+----------+ |
| | Inbound Handler 1 | | Outbound Handler M | |
| +----------+----------+ +-----------+----------+ |
| /| | |
+---------------+-----------------------------------+---------------+
| |/
+---------------+-----------------------------------+---------------+
| | | |
| [ Socket.read() ] [ Socket.write() ] |
| |
| Netty Internal I/O Threads (Transport Implementation) |
+-------------------------------------------------------------------+
Figure 1
An inbound event is handled by the inbound handlers in the bottom-up direction as shown on the left side of the diagram. An inbound handler usually handles the inbound data generated by the I/O thread on the bottom of the diagram. The inbound data is often
read from a remote peer via the actual input operation such as SocketChannel.read(ByteBuffer). If an inbound event goes beyond the top inbound handler, it is discarded silently, or logged if it needs
your attention.
An outbound event is handled by the outbound handler in the top-down direction as shown on the right side of the diagram. An outbound handler usually generates or transforms the outbound traffic such as write requests. If an outbound event goes beyond the
bottom outbound handler, it is handled by an I/O thread associated with the
Channel. The I/O thread often performs the actual output operation such asSocketChannel.write(ByteBuffer).
For example, let us assume that we created the following pipeline:
ChannelPipeline p = ...;
p.addLast("1", new InboundHandlerA());
p.addLast("2", new InboundHandlerB());
p.addLast("3", new OutboundHandlerA());
p.addLast("4", new OutboundHandlerB());
p.addLast("5", new InboundOutboundHandlerX());
In the example above, the class whose name starts with Inbound means it is an inbound handler. The class whose name starts withOutbound means it is a outbound handler.
In the given example configuration, the handler evaluation order is 1, 2, 3, 4, 5 when an event goes inbound. When an event goes outbound, the order is 5, 4, 3, 2, 1. On top of this principle,ChannelPipeline
skips the evaluation of certain handlers to shorten the stack depth:
- 3 and 4 don't implement
ChannelInboundHandler, and therefore the actual evaluation order of an inbound event will be: 1, 2, and 5. - 1 and 2 implement
ChannelOutboundHandler, and therefore the actual evaluation order of a outbound event will be: 5, 4, and 3. - If 5 implements both
ChannelInboundHandlerandChannelOutboundHandler, the evaluation order of an inbound and a outbound event could be 125 and 543 respectively.
Forwarding an event to the next handler
As you might noticed in the diagram shows, a handler has to invoke the event propagation methods inChannelHandlerContext to forward an event to its next handler. Those methods include:
- Inbound event propagation methods:
ChannelHandlerContext.fireChannelRegistered()ChannelHandlerContext.fireChannelActive()ChannelHandlerContext.fireChannelRead(Object)ChannelHandlerContext.fireChannelReadComplete()ChannelHandlerContext.fireExceptionCaught(Throwable)ChannelHandlerContext.fireUserEventTriggered(Object)ChannelHandlerContext.fireChannelWritabilityChanged()ChannelHandlerContext.fireChannelInactive()ChannelHandlerContext.fireChannelUnregistered()
- Outbound event propagation methods:
ChannelHandlerContext.bind(SocketAddress, ChannelPromise)ChannelHandlerContext.connect(SocketAddress, SocketAddress, ChannelPromise)ChannelHandlerContext.write(Object, ChannelPromise)ChannelHandlerContext.flush()ChannelHandlerContext.read()ChannelHandlerContext.disconnect(ChannelPromise)ChannelHandlerContext.close(ChannelPromise)ChannelHandlerContext.deregister(ChannelPromise)
public class MyInboundHandler extendsChannelInboundHandlerAdapter{@Overridepublic void channelActive(ChannelHandlerContextctx) { System.out.println("Connected!"); ctx.fireChannelActive(); } } public clas MyOutboundHandler extendsChannelOutboundHandlerAdapter{@Overridepublic void close(ChannelHandlerContextctx,ChannelPromisepromise) { System.out.println("Closing .."); ctx.close(promise); } }
Building a pipeline
A user is supposed to have one or more ChannelHandlers in a pipeline to receive I/O events (e.g. read) and to request I/O operations (e.g. write and close). For example, a typical server will have
the following handlers in each channel's pipeline, but your mileage may vary depending on the complexity and characteristics of the protocol and business logic:
- Protocol Decoder - translates binary data (e.g.
ByteBuf) into a Java object. - Protocol Encoder - translates a Java object into binary data.
- Business Logic Handler - performs the actual business logic (e.g. database access).
static finalEventExecutorGroupgroup = newDefaultEventExecutorGroup(16); ...ChannelPipelinepipeline = ch.pipeline(); pipeline.addLast("decoder", new MyProtocolDecoder()); pipeline.addLast("encoder", new MyProtocolEncoder()); // Tell the pipeline to run MyBusinessLogicHandler's event handler methods // in a different thread than an I/O thread so that the I/O thread is not blocked by // a time-consuming task. // If your business logic is fully asynchronous or finished very quickly, you don't // need to specify a group. pipeline.addLast(group, "handler", new MyBusinessLogicHandler());
Thread safety
A ChannelHandler can be added or removed at any time because aChannelPipeline is thread safe. For example, you can insert an encryption
handler when sensitive information is about to be exchanged, and remove it after the exchange.
—————>>>>>>>>>>>>>>>>>>华丽的分界线<<<<<<<<<<<<<<<<<—————————————
Figure1 变形：
+-------------------------------------------------------------------+
| IN |
| | |
| | |
| [(Socket)read] |
| | |
| | |
| |/ |
| +----------+----------+ |
| | Inbound Handler 1 | |
| +----------+----------+ |
| | |
| |/ |
| +----------+----------+ |
| | Inbound Handler 2 | |
| +----------+----------+ |
| . |
| . |
| ./ |
| ChannelHandlerContext.FireIN_EVT |
| [ method call] |
| . |
| . |
| ./ |
| +----------+----------+ |
| | Inbound Handler N-1 | |
| +----------+----------+ |
| |/ |
| | |
| +----------+----------+ |
| | Inbound Handler N | |
| +----------+----------+ |
| | |
| |/ |
| | |
+---------------------------------+---------------------------------+
| | |
| | |
| Application |
| | |
| | |
+---------------------------------+---------------------------------+
| | |
| |/ |
| +-----------+----------+ |
| | Outbound Handler 1 | |
| +-----------+----------+ |
| | |
| |/
| +-----------+----------+ |
| | Outbound Handler 2 | |
| +-----------+----------+ |
| . |
| . |
| ./ |
| ChannelHandlerContext.OUT_EVT() |
| [ method call] |
| . |
| . |
| ./ |
| +-----------+----------+ |
| | Outbound Handler M-1 | |
| +-----------+----------+ |
| | |
| |/ |
| +-----------+----------+ |
| | Outbound Handler M | |
| +-----------+----------+ |
| | |
| |/ |
| [(Socket)write] |
| | |
| | |
| |/ |
| | |
| OUT |
+---------------+-----------------------------------+---------------+
责任链模式：
在阎宏博士的《JAVA与模式》一书中开头是这样描写叙述责任链（Chain of Responsibility）模式的：
责任链模式是一种对象的行为模式。在责任链模式里，非常多对象由每个对象对其下家的引用而连接起来形成一条链。请求在这个链上传递，直到链上的某一个对象决定处理此请求。发出这个请求的client并不知道链上的哪一个对象终于处理这个请求，这使得系统能够在不影响client的情况下动态地又一次组织和分配责任。
责任链模式涉及到的角色例如以下所看到的：
● 抽象处理者(Handler)角色：定义出一个处理请求的接口。
假设须要，接口能够定义 出一个方法以设定和返回对下家的引用。

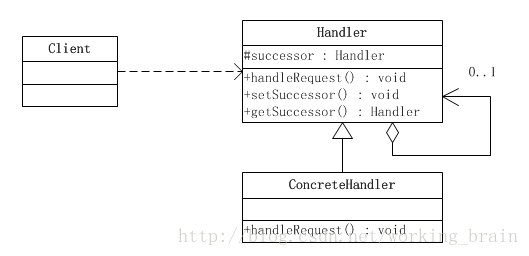

这个角色通常由一个Java抽象类或者Java接口实现。上图中Handler类的聚合关系给出了详细子类对下家的引用，抽象方法handleRequest()规范了子类处理请求的操作。
● 详细处理者(ConcreteHandler)角色：详细处理者接到请求后，能够选择将请求处理掉，或者将请求传给下家。
因为详细处理者持有对下家的引用，因此。假设须要。详细处理者能够訪问下家。
Java website development中的filter也是责任链模式！參考文章：http://www.cnblogs.com/java-my-life/archive/2012/05/28/2516865.html；
