安装 Hyperledger Explorer及翻译中文

Hyperledger Explorer

Hyperledger Explorer is a simple, powerful, easy-to-use, highly maintainable, open source browser for viewing activity on the underlying blockchain network.

Directory Structure

├── app                    fabric GRPC interface
├── db             the mysql script and help class
├── explorer_client        Web Ui
├── first-network   Basic fabric network setup
├── listener               websocket listener
├── metrics                metrics about tx count per minute and block count per minute
├── service                the service
├── socket         push real time data to front end
├── timer                  Timer to post information periodically
└── utils                  Various utility scripts

Requirements

Following are the software dependencies required to install and run hyperledger explorer

nodejs 6.9.x (Note that v7.x is not yet supported)
mysql 5.7 or greater

Hyperledger Explorer works with Hyperledger Fabric 1.0. Install the following software dependencies to manage fabric network.

docker 17.06.2-ce [https://www.docker.com/community-edition]
docker-compose 1.14.0 [https://docs.docker.com/compose/]

Clone Repository

Clone this repository to get the latest using the following command.

git clone https://github.com/hyperledger/blockchain-explorer.git
cd blockchain-explorer

Database setup

Run the database setup scripts located under db/fabricexplorer.sql

mysql -u -p < db/fabricexplorer.sql

Fabric network setup

Setup your own network using Build your network tutorial from Fabric. Once you setup the network, please modify the values in config.json accordingly.

Running blockchain-explorer

On another terminal,

cd blockchain-explorer
Modify config.json to update network-config
Change “fabric-path” to your fabric network path, example “/home/user1/workspace/fabric-samples” for the following keys: “tls_cacerts”, “key”, “cert”.
Final path for key “tls_cacerts” will be “/home/user1/workspace/fabric-samples/first-network/crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt”
Modify config.json to update one of the channel
- mysql host, username, password details

  “channel”: “mychannel”,
  “mysql”:{
  “host”:”127.0.0.1”,
  “database”:”fabricexplorer”,
  “username”:”root”,
  “passwd”:”123456”
  }

If you are connecting to a non TLS fabric peer, please modify the

protocol (grpcs->grpc) and port (9051-> 9050) in the peer url and remove the tls_cacerts. Depending on this key, the application decides whether to go TLS or non TLS route.

npm install
./start.sh

Launch the URL http://localhost:8080 on a browser.

重要的要修改第二步，在config.json中fabric-path改为实际的路径

常见问题集

在ubuntu18下运行正常的blockchain-explorer 可以通过打包复制到新机器centos7下避免容易出问题npm install 的地方

TypeError: Cannot read property ‘on’ of undefined 问题

[root@localhost blockchain-explorer]# ./start.sh /opt/gopath/src/github.com/hyperledger/blockchain-explorer/main.js:74 server.on('connection', connection => { ^ TypeError: Cannot read property 'on' of undefined at Object.<anonymous> (/opt/gopath/src/github.com/hyperledger/blockchain-explorer/main.js:74:8) at Module._compile (module.js:652:30) at Object.Module._extensions..js (module.js:663:10) at Module.load (module.js:565:32) at tryModuleLoad (module.js:505:12) at Function.Module._load (module.js:497:3) at Function.Module.runMain (module.js:693:10) at startup (bootstrap_node.js:191:16) at bootstrap_node.js:612:3
暂时没找到原因 npm install 通过淘宝镜像安装的正常，初步猜测1.npm install 淘宝的问题，2.fabric的config.json配置问题，再看看

运行在 fabric-samples下的fabcar上引起的问题

[root@localhost blockchain-explorer]# ./start.sh
postgres://hppoc:password@127.0.0.1:5432/fabricexplorer
(node:4774) UnhandledPromiseRejectionWarning: Error: ENOENT: no such file or directory, scandir '/opt/gopath/src/github.com/hyperledger/fabric-samples/basic-network/crypto-config/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp/keystore'
    at Object.fs.readdirSync (fs.js:904:18)
    at Object.readAllFiles (/opt/gopath/src/github.com/hyperledger/blockchain-explorer/app/helper.js:25:18)
    at Platform.setAdminForClient (/opt/gopath/src/github.com/hyperledger/blockchain-explorer/app/platform/fabric/Platform.js:78:37)
    at Platform.initialize (/opt/gopath/src/github.com/hyperledger/blockchain-explorer/app/platform/fabric/Platform.js:146:18)
    at <anonymous>
(node:4774) UnhandledPromiseRejectionWarning: Unhandled promise rejection. This error originated either by throwing inside of an async function without a catch block, or by rejecting a promise which was not handled with .catch(). (rejection id: 3)
(node:4774) [DEP0018] DeprecationWarning: Unhandled promise rejections are deprecated. In the future, promise rejections that are not handled will terminate the Node.js process with a non-zero exit code.
^CReceived kill signal, shutting down gracefully
Closed out remaining connections

删除fabric的config.json中多余的证书，主意标点符号，别删多了少了，不然会出现 TypeError: Cannot read property ‘on’ of undefined 问题

[root@localhost blockchain-explorer]# ./start.sh
/opt/gopath/src/github.com/hyperledger/blockchain-explorer/main.js:74
server.on('connection', connection => {
       ^

TypeError: Cannot read property 'on' of undefined
    at Object.<anonymous> (/opt/gopath/src/github.com/hyperledger/blockchain-explorer/main.js:74:8)
    at Module._compile (module.js:652:30)
    at Object.Module._extensions..js (module.js:663:10)
    at Module.load (module.js:565:32)
    at tryModuleLoad (module.js:505:12)
    at Function.Module._load (module.js:497:3)
    at Function.Module.runMain (module.js:693:10)
    at startup (bootstrap_node.js:191:16)
    at bootstrap_node.js:612:3

forEach 问题（https://github.com/hyperledger/blockchain-explorer/blob/release-3.5/TROUBLESHOOT.md）

[root@localhost blockchain-explorer]# ./start.sh
postgres://hppoc:password@127.0.0.1:5432/fabricexplorer
E0903 03:29:13.267101332    4851 ssl_transport_security.cc:989] Handshake failed with fatal error SSL_ERROR_SSL: error:1408F10B:SSL routines:SSL3_GET_RECORD:wrong version number.
E0903 03:29:14.269565151    4851 ssl_transport_security.cc:989] Handshake failed with fatal error SSL_ERROR_SSL: error:1408F10B:SSL routines:SSL3_GET_RECORD:wrong version number.
E0903 03:29:16.173519478    4851 ssl_transport_security.cc:989] Handshake failed with fatal error SSL_ERROR_SSL: error:1408F10B:SSL routines:SSL3_GET_RECORD:wrong version number.
error: [Remote.js]: Error: Failed to connect before the deadline
error: [client-utils.js]: sendPeersProposal - Promise is rejected: Error: Failed to connect before the deadline
    at checkState (/opt/gopath/src/github.com/hyperledger/blockchain-explorer/node_modules/grpc/src/client.js:838:16)
(node:4851) UnhandledPromiseRejectionWarning: TypeError: Cannot read property 'forEach' of undefined
    at Platform.setChannels (/opt/gopath/src/github.com/hyperledger/blockchain-explorer/app/platform/fabric/Platform.js:192:26)
    at <anonymous>
    at process._tickCallback (internal/process/next_tick.js:188:7)
(node:4851) UnhandledPromiseRejectionWarning: Unhandled promise rejection. This error originated either by throwing inside of an async function without a catch block, or by rejecting a promise which was not handled with .catch(). (rejection id: 1)
(node:4851) [DEP0018] DeprecationWarning: Unhandled promise rejections are deprecated. In the future, promise rejections that are not handled will terminate the Node.js process with a non-zero exit code.
E0903 03:29:18.679853789    4851 ssl_transport_security.cc:989] Handshake failed with fatal error SSL_ERROR_SSL: error:1408F10B:SSL routines:SSL3_GET_RECORD:wrong version number.
^CReceived kill signal, shutting down gracefully
Closed out remaining connections

参考官方的说明，大概就是把config.json中的grpcs 改为grpc就行

最后，版本容易引起问题，release-3.5 使用postgrsql db

db error { error: Ident authentication failed for user “hppoc”

1）. 运行下面的命令编辑pg_hba.conf文件 sudo vim /etc/postgresql/9.1/main/pg_hba.conf

2）. 将

 # Database administrative login by Unix domain socket

local     all      postgres        peer

改为

# Database administrative login by Unix domain socket

local     all     postgres         trust

入乡随俗

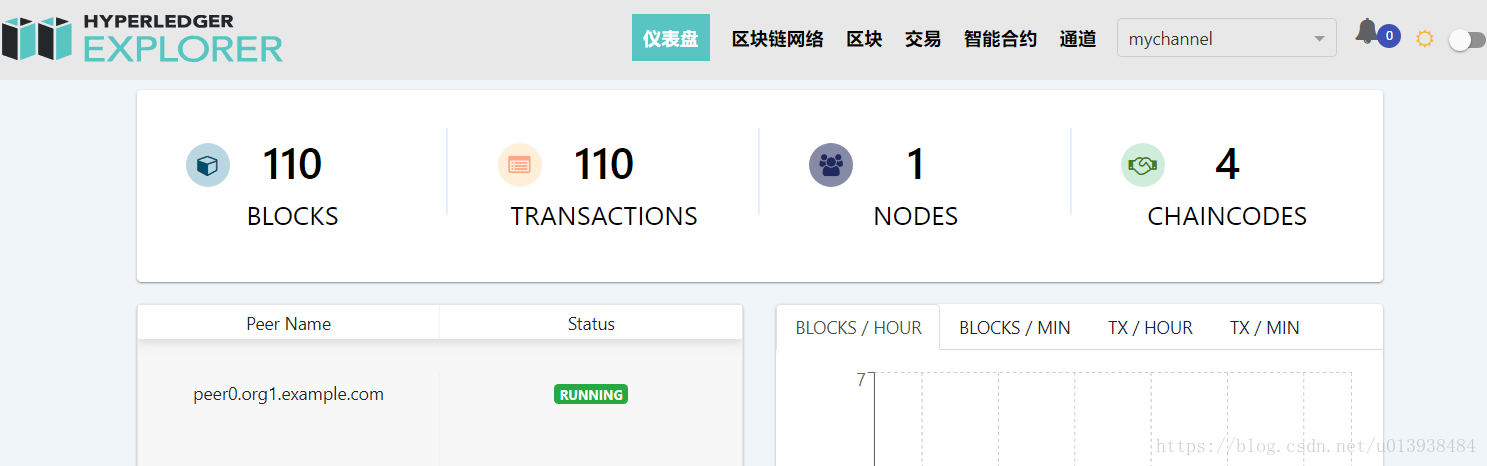

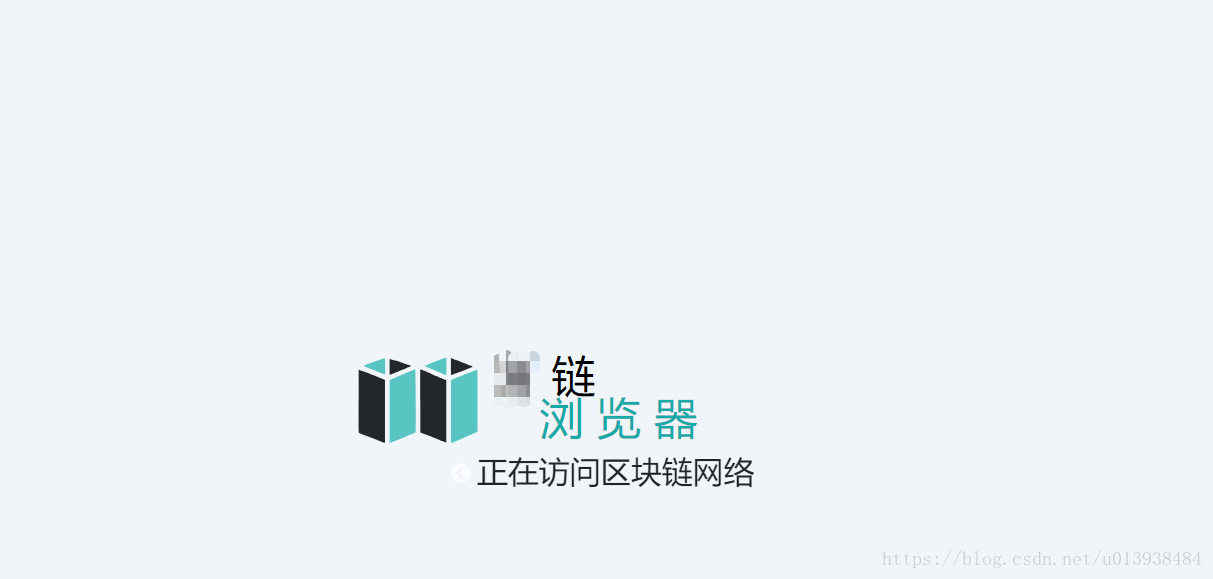

这里写图片描述

这里写图片描述

初步修改为中文，注意事项：
修改文件为blockchain-explorerclientsrccomponentsHeader 和blockchain-explorerclientsrccomponentsView 等其它的
修改后在blockchain-explorer/client 执行npm run build 才行

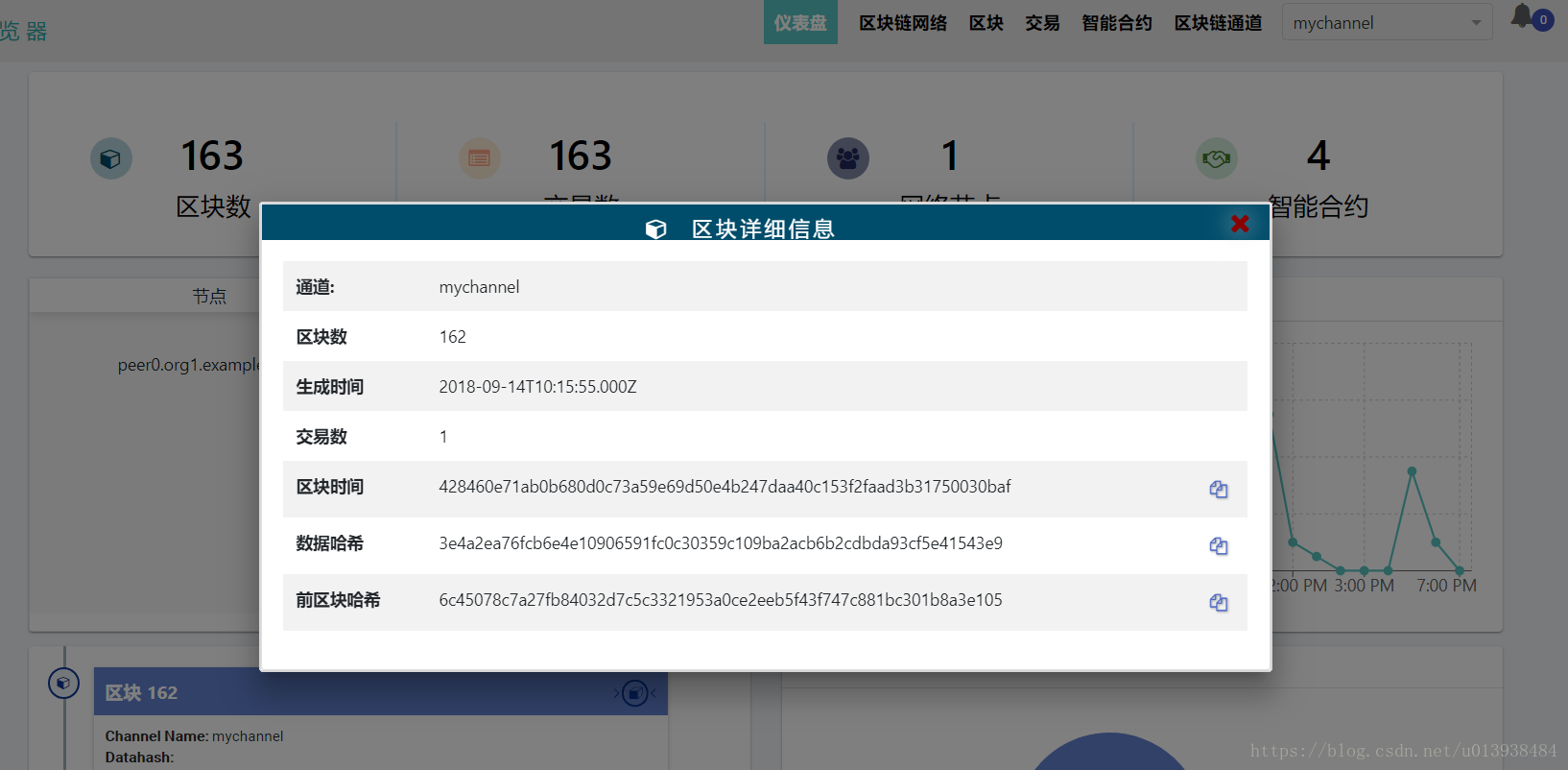

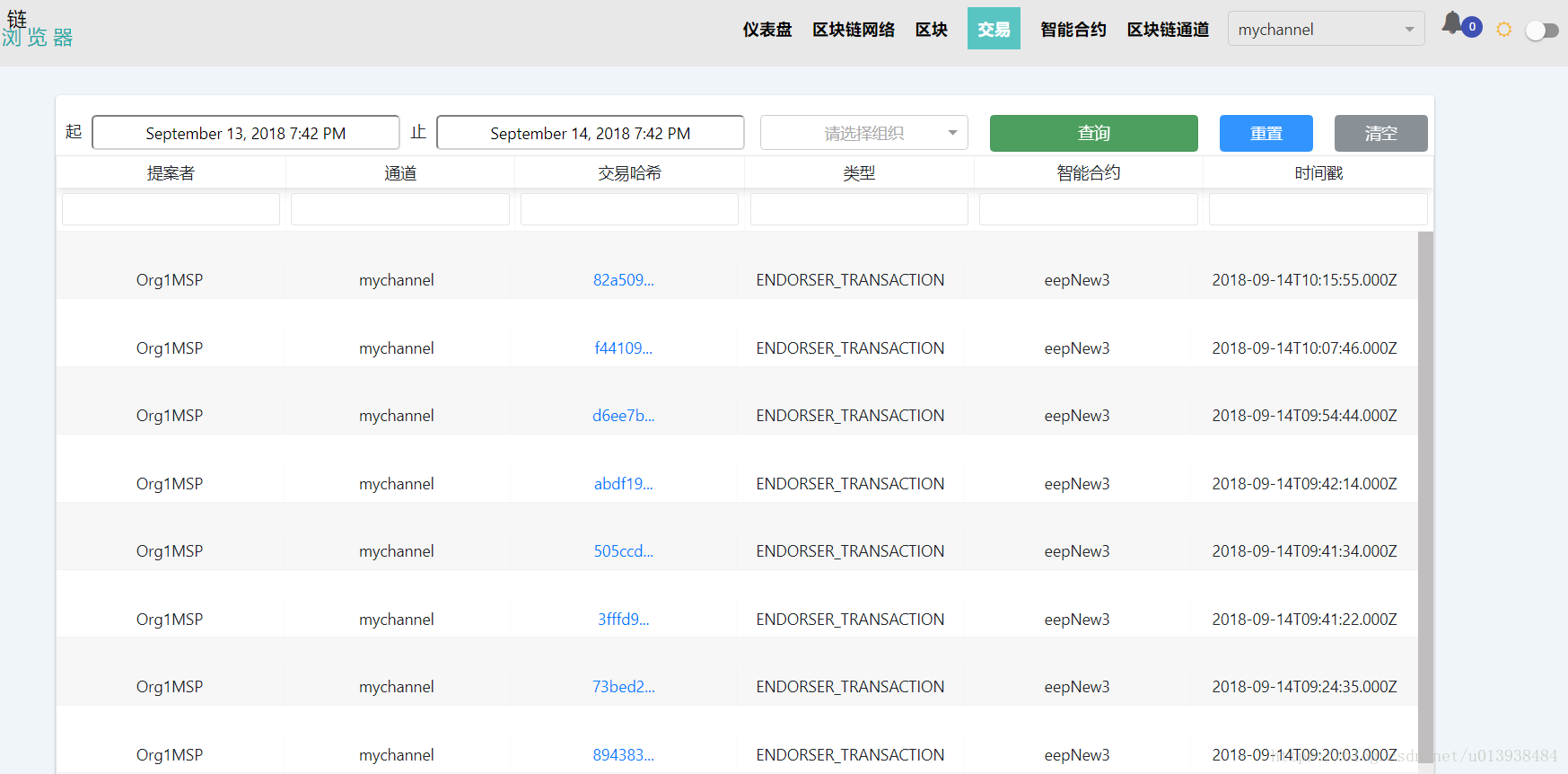

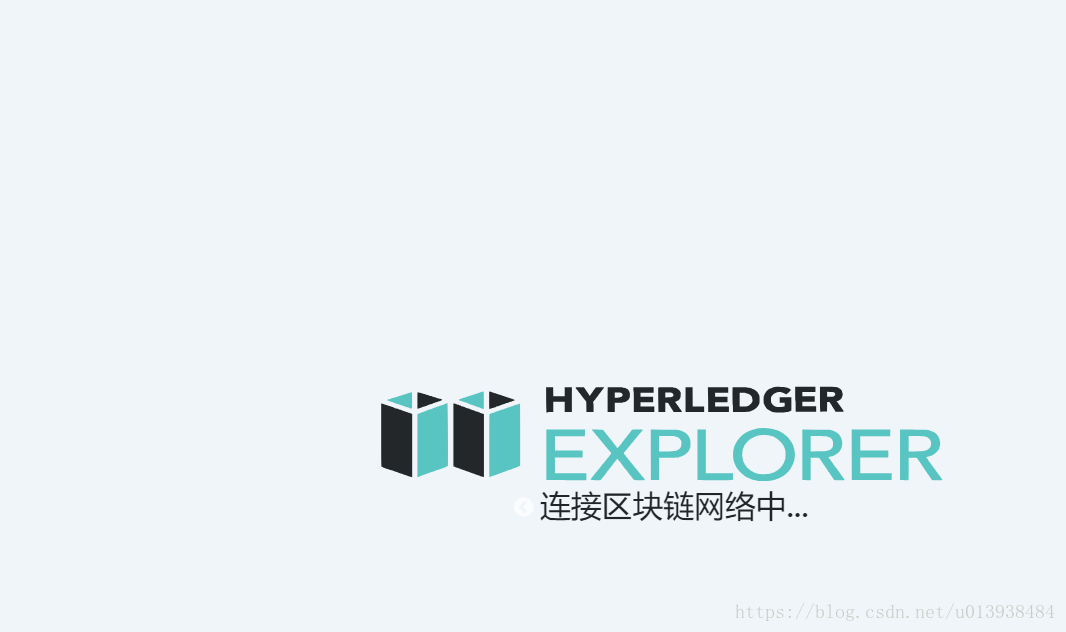

断断续续两天，终于完成了blockchain-explorer 90%的汉化，大致效果如下：
