CUDA+OpenGL混合编程

CUDA+OpenGL混合编程示例：

#include <stdio.h>
#include <stdlib.h>
#include "GLglew.h"
#include "GLglut.h"
#include <cuda_runtime.h>
#include <cuda.h>
#include <cuda_gl_interop.h>

#define GET_PROC_ADDRESS(str) wglGetProcAddress(str)
#define DIM 512

PFNGLBINDBUFFERARBPROC    glBindBuffer = NULL;
PFNGLDELETEBUFFERSARBPROC glDeleteBuffers = NULL;
PFNGLGENBUFFERSARBPROC    glGenBuffers = NULL;
PFNGLBUFFERDATAARBPROC    glBufferData = NULL;

GLuint bufferObj;
cudaGraphicsResource *resource;

__global__ void cudaGLKernel(uchar4 *ptr)
{
	int x = threadIdx.x + blockIdx.x * blockDim.x;
	int y = threadIdx.y + blockIdx.y * blockDim.y;
	int offset = x + y * blockDim.x * gridDim.x;

	/*float fx = x / (float)DIM - 0.5f;
	float fy = y / (float)DIM - 0.5f;*/

	unsigned char green = 255 * sinf(x*y);
	unsigned char red = 255 * cosf(offset*offset);
	unsigned char blue = 255 * cosf(offset*x*y);

	ptr[offset].x = red;
	ptr[offset].y = green;
	ptr[offset].z = blue;
	ptr[offset].w = 255;
}

void drawFunc(void)
{
	glDrawPixels(DIM, DIM, GL_RGBA, GL_UNSIGNED_BYTE, 0);
	glutSwapBuffers();
}

static void keyFunc(unsigned char key, int x, int y)
{
	switch (key) {
	case 27:
		cudaGraphicsUnregisterResource(resource);
		glBindBuffer(GL_PIXEL_UNPACK_BUFFER_ARB, 0);
		glDeleteBuffers(1, &bufferObj);
		exit(0);
	}
}

int main(int argc, char* argv[])
{
	// 定义一个设备属性对象prop
	cudaDeviceProp prop;
	int dev;

	memset(&prop, 0, sizeof(cudaDeviceProp));

	//限定设备计算功能集的版本号
	prop.major = 1;
	prop.minor = 0;

	//选择在计算功能集的版本号为1.0的GPU设备上运行
	cudaChooseDevice(&dev, &prop);

	//选定GL程序运行的设备
	cudaGLSetGLDevice(dev);

	//OpenGL环境初始化
	glutInit(&argc, argv);
	glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGBA);
	glutInitWindowSize(DIM, DIM);
	glutCreateWindow("CUDA+OpenGL");

	glBindBuffer = (PFNGLBINDBUFFERARBPROC)GET_PROC_ADDRESS("glBindBuffer");
	glDeleteBuffers = (PFNGLDELETEBUFFERSARBPROC)GET_PROC_ADDRESS("glDeleteBuffers");
	glGenBuffers = (PFNGLGENBUFFERSARBPROC)GET_PROC_ADDRESS("glGenBuffers");
	glBufferData = (PFNGLBUFFERDATAARBPROC)GET_PROC_ADDRESS("glBufferData");

	glGenBuffers(1, &bufferObj);
	glBindBuffer(GL_PIXEL_UNPACK_BUFFER_ARB, bufferObj);
	glBufferData(GL_PIXEL_UNPACK_BUFFER_ARB, DIM*DIM * 4, NULL, GL_DYNAMIC_DRAW_ARB);

	cudaGraphicsGLRegisterBuffer(&resource, bufferObj, cudaGraphicsMapFlagsNone);

	uchar4* devPtr;
	size_t size;
	cudaGraphicsMapResources(1, &resource, NULL);
	cudaGraphicsResourceGetMappedPointer((void**)&devPtr, &size, resource);

	dim3 grids(DIM / 16, DIM / 16);
	dim3 threads(16, 16);
	cudaGLKernel << <grids, threads >> > (devPtr);

	cudaGraphicsUnmapResources(1, &resource, NULL);
	glutKeyboardFunc(keyFunc);
	glutDisplayFunc(drawFunc);
	glutMainLoop();
	return 0;
}

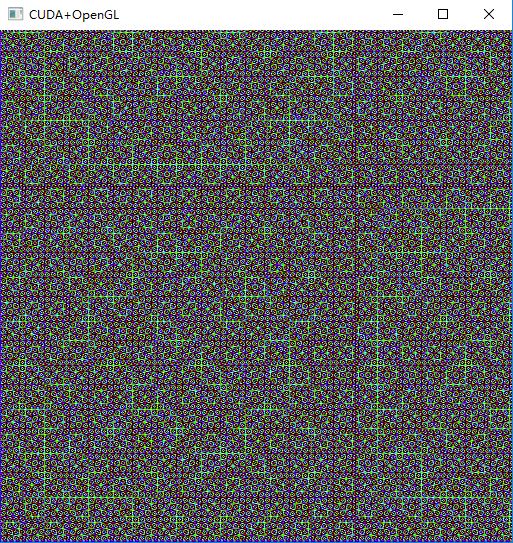

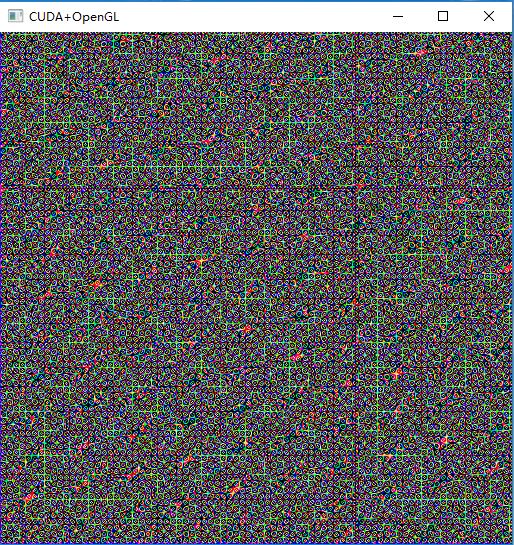

在GPU上根据线程索引的正余弦函数生成数据，并把这些数据绑定到OpenGL声明的一个顶点缓冲对象VBO（VBO其实就是显存上的一个存储区域，可以保持大量的顶点属性信息）上，再由OpenGL根据该VBO数据把图像绘制出来，运行效果：
