  • 使用nodejs运行SAP Fiori应用

    (1) download and install NodeJS in your local laptop:https://nodejs.org/en/download/
    Type node -v to ensure it works correctly:

    (2) install and configure Grunt. Grunt is a JavaScript task runner which can finish repetitive task for you. In this tutorial, I use it to launch local NodeJS server automatically. Installation could be done via command line: npm install -g grunt-cli

    Once done, you can see the following output:

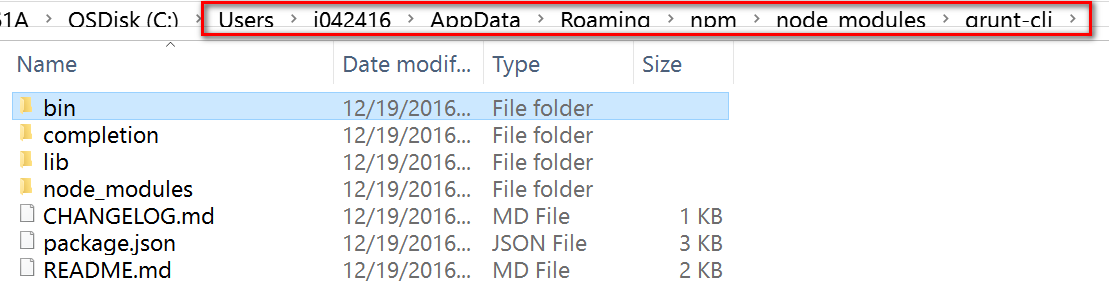

    Check the folder listed in the console, you can see lots of stuffs regarding Grunt have been automatically downloaded.

    (3) Go to the root folder of your Fiori application, type npm init. There will be a tutorial which can guide you to generate package.json file.

    Add the following part to your package.json file:

    "devDependencies": {
      "grunt": "^0.4.5",
      "grunt-connect-proxy": "^0.2.0",
      "grunt-contrib-connect": "^0.9.0",
      "load-grunt-tasks": "^3.4.1"
      }


    I attach the complete package.json file of my Fiori project for your reference.

    {
      "name": "simplefiori",
      "version": "1.0.0",
      "description": "Jerry's test Fiori project",
      "main": "index.html",
      "scripts": {
        "test": "echo "Error: no test specified" && exit 1"
      },
      "repository": {
        "type": "git",
        "url": "git+https://github.com/i042416/simpleFiori.git"
      },
      "keywords": [
        "local"
      ],
      "author": "i042416",
      "license": "ISC",
      "bugs": {
        "url": "https://github.com/i042416/simpleFiori/issues"
      },
      "homepage": "https://github.com/i042416/simpleFiori#readme",

      "devDependencies": {
      "grunt": "^0.4.5",
      "grunt-connect-proxy": "^0.2.0",
      "grunt-contrib-connect": "^0.9.0",
      "load-grunt-tasks": "^3.4.1"
      }
    }

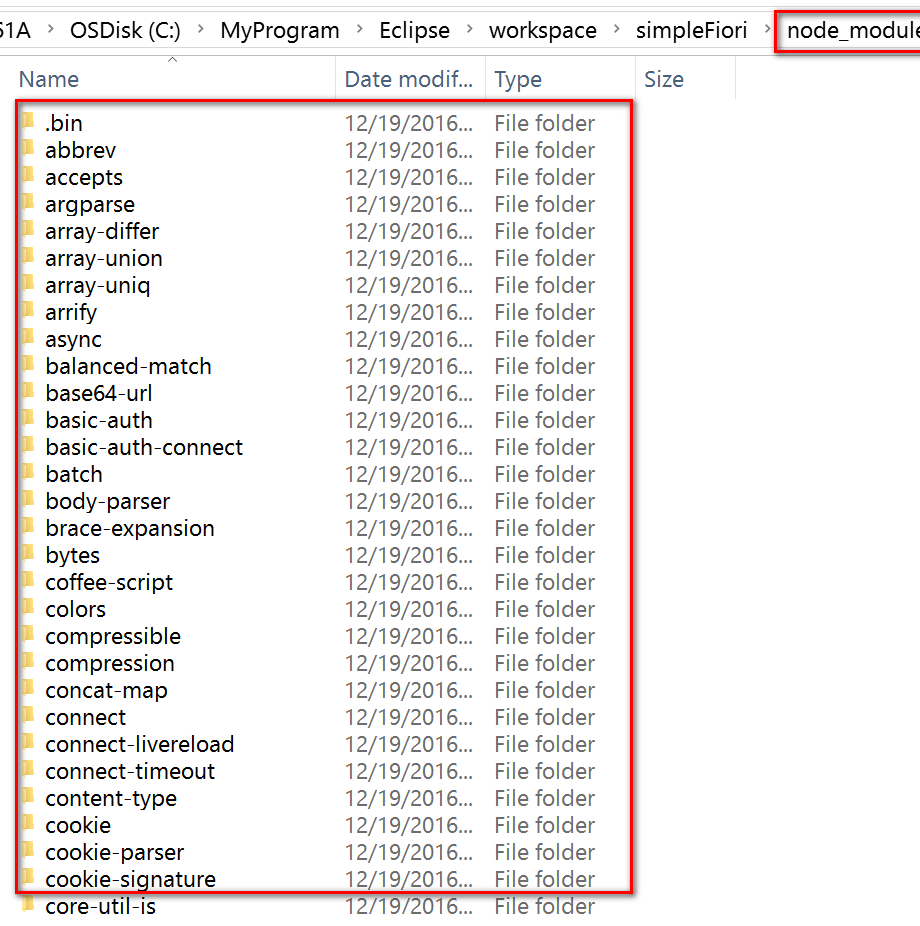

    (4) Type npm install in your Fiori project root folder. Once done, there will be a folder node_module generated which contains lots of necessary module:

    (5) Create a file named Gruntfile.js in the root directory of your project. This file works as a task descriptor which tells Grunt how to launch NodeJS server and the task detail it should perform.

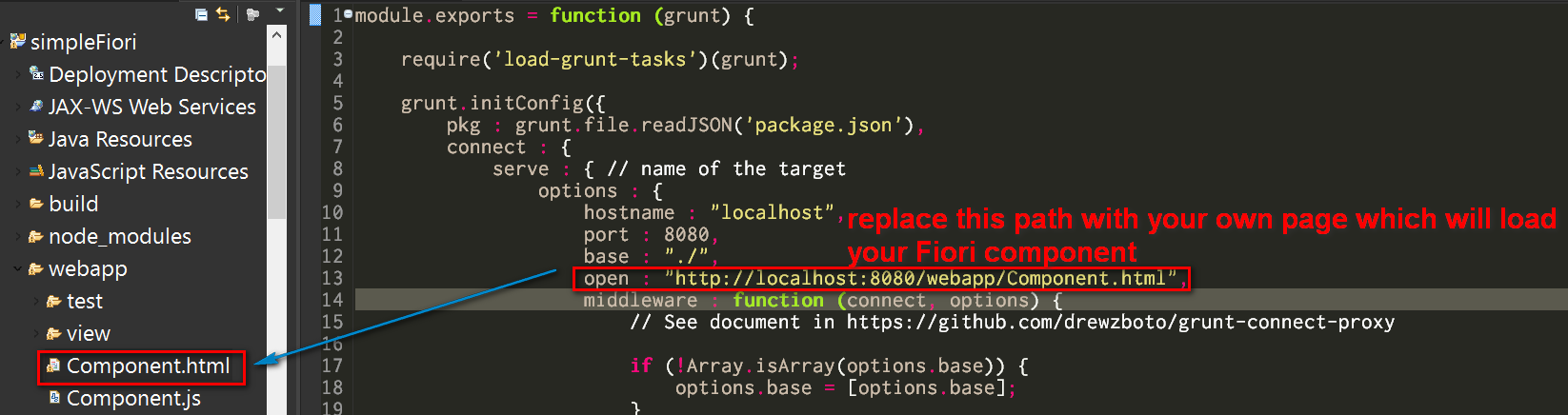

    Here below is my Gruntfile.js:

    module.exports = function (grunt) {

        require('load-grunt-tasks')(grunt);

        grunt.initConfig({
            pkg : grunt.file.readJSON('package.json'),
            connect : {
                serve : { // name of the target
                    options : {
                        hostname : "localhost",
                        port : 8080,
                        base : "./",
                        open : "http://localhost:8080/webapp/Component.html",
                        middleware : function (connect, options) {
                            // See document in https://github.com/drewzboto/grunt-connect-proxy

                            if (!Array.isArray(options.base)) {
                                options.base = [options.base];
                            }

                            var middlewares = [require('grunt-connect-proxy/lib/utils').proxyRequest];

                            options.base.forEach(function (base) {
                                middlewares.push(connect.static(base));
                            });

                            var directory = options.directory || options.base[options.base.length - 1];
                            middlewares.push(connect.directory(directory));

                            return middlewares;
                        }
                    }
                },

                proxies : [
                           {
                        context : '/resources',
                        host : 'vesapui5.dhcp.wdf.sap.corp',
                        port : 8080,
                        https : false,
                        rewrite : {
                            '^/resources' : '/sapui5-dist-1.40/resources'
                        }
                    }
                ]
            },
            eslint : {
                target : ["webapp/**/*.js"]
            }
        });

        grunt.registerTask('serve', ['configureProxies:serve', 'connect:serve:keepalive']);

    };


    Here below is my Component.html:

    <!DOCTYPE HTML>
    <html>

    <head>
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <title>Jerry's test Fiori page</title>

    <script src="/resources/sap-ui-core.js" id="sap-ui-bootstrap"
    	data-sap-ui-libs="sap.m, sap.ushell, sap.ui.comp"
    	data-sap-ui-theme="sap_bluecrystal">

    </script>

    <script>
    	jQuery.sap.registerModulePath("JerryTest", './');
    	sap.ui.getCore().attachInit(function() {
    		new sap.m.Shell({
    			app : new sap.ui.core.ComponentContainer({
    				name : "JerryTest"
    			})
    		}).placeAt("content");
    	});
    </script>
    </head>

    <body class="sapUiBody" role="application">
    	<div id="content"></div>
    </body>

    </html>


    (6) Now everything is done. Type command line grunt serve, and you should see the following output: local server is working and the html file you specified in Gruntfile.js is automatically opened:

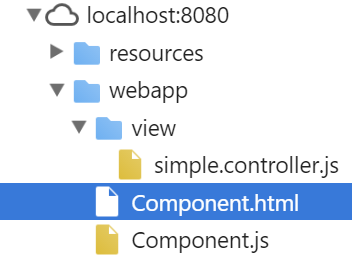

    The Fiori application runs correctly in Chrome now:

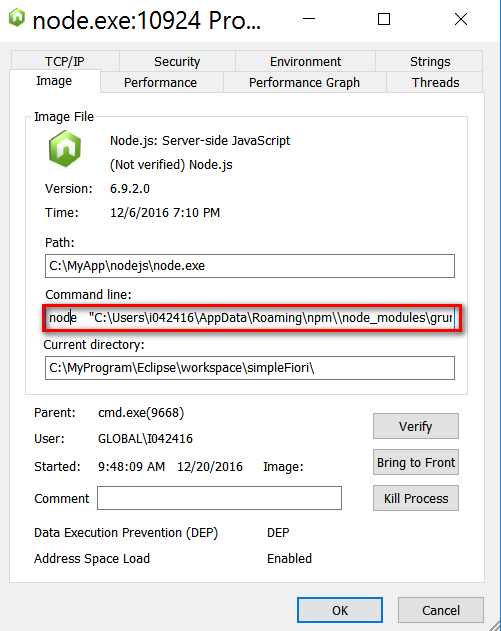

    Please notice that this grunt serve is just a short cut, the complete path could be got from task manager: node “C:Usersi042416AppDataRoaming pm ode_modulesgrunt-cliingrunt” serve
