2.搭建Flume

搭建Flume

搭建Flume1.下载解压(官网)2.配置flume3.配置环境变量4.进行文件传输配置slave5.Flume部署示例(CSDN)4.1 Avro(以下还没操作修改)4.2 Spool4.3 其它

1.下载解压(官网)

1. 在/opt目录下新建目录flume

2. 将下载好的apache-flume-1.9.0-bin.tar.gz，利用Xftp6上传到/opt/flume目录下

3. 利用命令：tar -xvf apache-flume-1.9.0-bin.tar.gz



2.配置flume

1. 进⼊flume的conf⽬录下，拷⻉flume-env.sh.template然后重命名为flume-env.sh

   cp flume-env.sh.template flume-env.sh
   chmod 777 flume-env.sh
   vim flume-env.sh

2. 进⼊flume-env.sh中配置java jdk路径

   export JAVA_HOME=/opt/java/jdk1.8.0_261

3.配置环境变量

1. 在/opt目录下

   vim .bash_profile

   # Flume
   export FLUME_HOME=/opt/flume/export FLUME_HOME=/opt/flume/apache-flume-1.9.0-bin
   export PATH=$PATH:$FLUME_HOME/bin

   source .bash_profile

2. 在flume-env.sh文件中配置

   # Flume
   export FLUME_HOME=/opt/flume/export FLUME_HOME=/opt/flume/apache-flume-1.9.0-bin
   export PATH=$PATH:$FLUME_HOME/bin

3. 版本验证

   flume-ng version

   ps:（/etc/profile中我也添加了代码段中的配置)#刷新配置source /etc/profile

4.进行文件传输配置slave

scp -r /opt/flume/apache-flume-1.9.0-bin slave1:/opt/flume/
scp -r /opt/flume/apache-flume-1.9.0-bin slave2:/opt/flume/

按照上诉步骤在slave1、slave2进行操作

5.Flume部署示例(CSDN)

4.1 Avro(以下还没操作修改)

Flume可以通过Avro监听某个端口并捕获传输的数据，具体示例如下：

// 创建一个Flume配置文件

$ cd app/cdh/flume-1.6.0-cdh5.7.1

$ mkdir example

$ cp conf/flume-conf.properties.template example/netcat.conf



// 配置netcat.conf用于实时获取另一终端输入的数据

$ vim example/netcat.conf

# Name the components on this agent

a1.sources = r1

a1.sinks = k1

a1.channels = c1

# Describe/configure the source

a1.sources.r1.type = netcat

a1.sources.r1.bind = localhost

a1.sources.r1.port = 44444

# Describe the sink

a1.sinks.k1.type = logger

# Use a channel that buffers events in memory

a1.channels.c1.type = memory

a1.channels.c1.capacity = 1000

a1.channels.c1.transactionCapacity = 100

# Bind the source and sink to the channel

a1.sources.r1.channels = c1

a1.sinks.k1.channel = c1



// 运行FlumeAgent，监听本机的44444端口

$ flume-ng agent -c conf -f example/netcat.conf -n a1 -Dflume.root.logger=INFO,console



// 打开另一终端，通过telnet登录localhost的44444，输入测试数据

$ telnet localhost 44444



// 查看flume收集数据情况

4.2 Spool

Spool用于监测配置的目录下新增的文件，并将文件中的数据读取出来。需要注意两点：拷贝到spool目录下的文件不可以再打开编辑、spool目录下不可包含相应的子目录。具体示例如下：

// 创建两个Flume配置文件

$ cd app/cdh/flume-1.6.0-cdh5.7.1

$ cp conf/flume-conf.properties.template example/spool1.conf

$ cp conf/flume-conf.properties.template example/spool2.conf



// 配置spool1.conf用于监控目录avro_data的文件，将文件内容发送到本地60000端口

$ vim example/spool1.conf

# Namethe components

local1.sources= r1

local1.sinks= k1

local1.channels= c1

# Source

local1.sources.r1.type= spooldir

local1.sources.r1.spoolDir= /home/hadoop/avro_data

# Sink

local1.sinks.k1.type= avro

local1.sinks.k1.hostname= localhost

local1.sinks.k1.port= 60000

#Channel

local1.channels.c1.type= memory

# Bindthe source and sink to the channel

local1.sources.r1.channels= c1

local1.sinks.k1.channel= c1



// 配置spool2.conf用于从本地60000端口获取数据并写入HDFS

# Namethe components

a1.sources= r1

a1.sinks= k1

a1.channels= c1

# Source

a1.sources.r1.type= avro

a1.sources.r1.channels= c1

a1.sources.r1.bind= localhost

a1.sources.r1.port= 60000

# Sink

a1.sinks.k1.type= hdfs

a1.sinks.k1.hdfs.path= hdfs://localhost:9000/user/wcbdd/flumeData

a1.sinks.k1.rollInterval= 0

a1.sinks.k1.hdfs.writeFormat= Text

a1.sinks.k1.hdfs.fileType= DataStream

# Channel

a1.channels.c1.type= memory

a1.channels.c1.capacity= 10000

# Bind the source and sink to the channel

a1.sources.r1.channels= c1

a1.sinks.k1.channel= c1



// 分别打开两个终端，运行如下命令启动两个Flume Agent

$ flume-ng agent -c conf -f example/spool2.conf -n a1

$ flume-ng agent -c conf -f example/spool1.conf -n local1

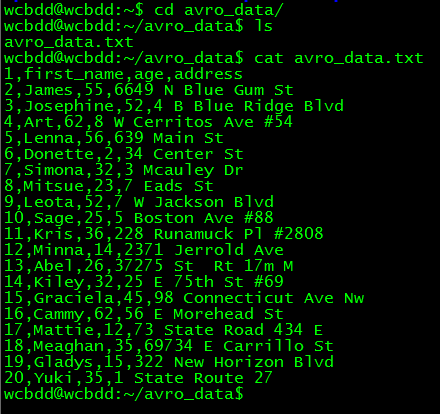

// 查看本地文件系统中需要监控的avro_data目录内容

$ cd avro_data

$ cat avro_data.txt

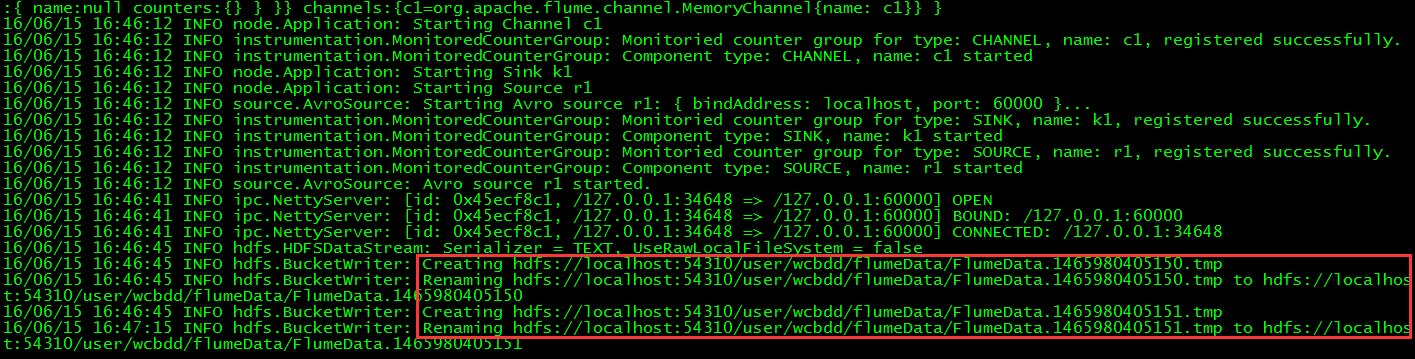

// 查看写HDFS的Agent，检查是否捕获了数据别写入HDFS

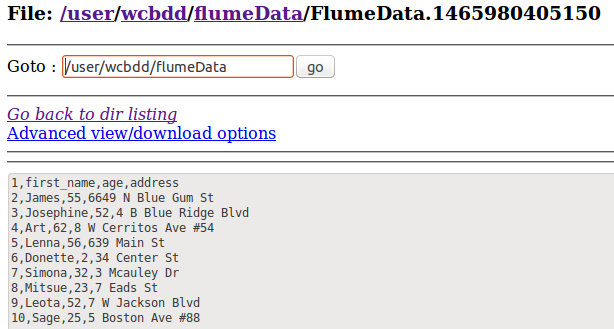

// 通过WEB UI查看HDFS中的文件

4.3 其它

Flume内置了大量的Source，其中Avro Source、Thrift Source、Spooling Directory Source、Kafka Source具有较好的性能和较广泛的使用场景。下面是Source的一些参考资料：
