Delphi插件管理框架的简单实现

1 前言
1.1 插件技术

许多软件采用“插件”（PlugIns）来扩展其功能，比如PhotoShop所支持的各类滤镜就是插件；我们所熟知的Winamp，也有许多皮肤以及可视效果插件。再有微软的windows media player，以及QQ，冲浪软件Opera……采用插件技术的软件数不胜数，而各个软件的具体实现方式也是五花八门，各有特点。

插件技术的出发点主要是为了使软件能够灵活地进行扩展功能，而不需要对主程序（框架程序）进行重新编译和发布。它的原理相当简单。软件的功能由框架程序和插件来决定。在框架程序和插件之间具有一个特定的接口，它们两者须通过这个接口来传递数据或控制信息，以实现软件功能。因此，只要符合该接口的程序（或其他功能实体），就称为该框架程序的插件。

插件实体一般分为两种，一种是包含逻辑的程序，比如动态库、Exe程序等；另一种则是一组配置信息。前一种方式多见于作图软件，媒体播放软件，适合实现复杂的功能；后一种方式多用于实现软件的Skin（皮肤）功能，以及其他一些不需要进行复杂运算的功能模块（有许多游戏软件的关卡也是采用此种方式实现，比如阿达软件的连连看）。

本篇给出在实现Dll插件方式框架程序的过程中，对Dll进行管理的框架程序及使用例子，作为读者进行插件程序设计的基础。具体而言，框架程序需要完成插件的装载、功能调用以及卸载三类功能。
1.2 其实…

其实每个控制面板程序，都是操作系统的插件。因为每个.cpl文件就是实现了特定接口的Dll。Windows的服务程序也是如此，它也只是在原有程序的基础上处理了特定的windows消息而已。

其实从广义上讲，每个运行在操作系统上的程序都是操作系统这个软件的“插件”。

其实在Delphi中，已经有一个插件管理的框架，那就是bpl。采用bpl组件包的方式也可以轻松实现功能的插件化扩展。只是该方式有个缺点：不支持其他开发工具（如vb、vc++）进行插件开发。
2 插件框架（untDllManager）
2.1 概述

untDllManager单元中定义了两个基础的类：

TDll：所有Dll类的父类，提供了装载、卸载的相关操作；

TDllManager：Dll类的容器类。支持删除元素方式卸载Dll实体。

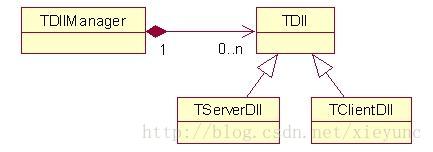

以下为类图：

2.2 实现代码

unit untDllManager;

interface
uses
  Windows, Classes, SysUtils, Forms;

type

  EDllError = Class(Exception);

  TDllClass = Class of TDll;
  TDll = Class;

  TDllEvent = procedure(Sender: TObject; ADll: TDll) of Object;

  { TDllManager
    o 提供对 Dll 的管理功能；
    o Add 时自动创建 TDll 对象，但不尝试装载；
    o Delete 时自动销毁 TDll 对象；
  }

  TDllManager = Class(TList)
  private
    FLock: TRTLCriticalSection;
    FDllClass: TDllClass;
    FOnDllLoad: TDllEvent;
    FOnDllBeforeUnLoaded: TDllEvent;
    function GetDlls(const Index: Integer): TDll;
    function GetDllsByName(const FileName: String): TDll;
  protected
    procedure Notify(Ptr: Pointer; Action: TListNotification); override;
  public
    constructor Create;
    destructor Destroy; override;
    function Add(const FileName: String): Integer; overload;
    function IndexOf(const FileName: String): Integer; overload;
    function Remove(const FileName: String): Integer; overload;
    procedure Lock;
    procedure UnLock;
    property DllClass: TDllClass read FDllClass write FDllClass;
    property Dlls[const Index: Integer]: TDll read GetDlls; default;
    property DllsByName[const FileName: String]: TDll read GetDllsByName;
    property OnDllLoaded: TDllEvent read FOnDllLoad write FOnDllLoad;
    property OnDllBeforeUnLoaded: TDllEvent read FOnDllBeforeUnLoaded write FOnDllBeforeUnLoaded;
  end;

  { TDll
    o 代表一个 Dll, Windows.HModule
    o 销毁时自动在 Owner 中删除自身；
    o 子类可通过覆盖override DoDllLoaded, 以及DoDllUnLoaded进行功能扩展;
  }

  TDll = Class(TObject)
  private
    FOwner: TDllManager;
    FModule: HMODULE;
    FFileName: String;
    FPermit: Boolean;
    procedure SetFileName(const Value: String);
    function GetLoaded: Boolean;
    procedure SetLoaded(const Value: Boolean);
    procedure SetPermit(const Value: Boolean);
  protected
    procedure DoDllLoaded; virtual;
    procedure DoBeforeDllUnLoaded; virtual;
    procedure DoDllUnLoaded; virtual;
    procedure DoFileNameChange; virtual;
    procedure DoPermitChange; virtual;
  public
    constructor Create; virtual;
    destructor Destroy; override;
    function GetProcAddress(const Order: Longint): FARPROC; overload;
    function GetProcAddress(const ProcName: String): FARPROC; overload;
    property FileName: String read FFileName write SetFileName;
    property Loaded: Boolean read GetLoaded write SetLoaded;
    property Owner: TDllManager read FOwner;
    property Permit: Boolean read FPermit write SetPermit;
  end;

implementation

{ TDll }

constructor TDll.Create;
begin
  FOwner := nil;
  FFileName := '';
  FModule := 0;
  FPermit := True;
end;

destructor TDll.Destroy;
var
  Manager: TDllManager;
begin
  Loaded := False;
  if FOwner <> nil then
  begin
    //在拥有者中删除自身
    Manager := FOwner;
    //未防止在 TDllManager中重复删除，因此需要将
    //FOwner设置为 nil; <-- 此段代码和 TDllManager.Notify 需要配合
    //才能确保正确。
    FOwner := nil;
    Manager.Remove(Self);
  end;
  inherited;
end;

function TDll.GetLoaded: Boolean;
begin
  result := FModule <> 0;
end;

function TDll.GetProcAddress(const Order: Longint): FARPROC;
begin
  if Loaded then
    result := Windows.GetProcAddress(FModule, Pointer(Order))
  else
    raise EDllError.CreateFmt('Do Load before GetProcAddress of "%u"', [DWORD(Order)]);
end;

function TDll.GetProcAddress(const ProcName: String): FARPROC;
begin
  if Loaded then
    result := Windows.GetProcAddress(FModule, PChar(ProcName))
  else
    raise EDllError.CreateFmt('Do Load before GetProcAddress of "%s"', [ProcName]);
end;

procedure TDll.SetLoaded(const Value: Boolean);
begin
  if Loaded <> Value then
  begin
    if not Value then
    begin
      Assert(FModule <> 0);
      DoBeforeDllUnLoaded;
      try
        FreeLibrary(FModule);
        FModule := 0;
      except
        Application.HandleException(Self);
      end;
      DoDllUnLoaded;
    end
    else
    begin
      FModule := LoadLibrary(PChar(FFileName));
      try
        Win32Check(FModule <> 0);
        DoDllLoaded;
      except
        On E: Exception do
        begin
          if FModule <> 0 then
          begin
            FreeLibrary(FModule);
            FModule := 0;
          end;
          raise EDllError.CreateFmt('LoadLibrary Error: %s', [E.Message]);
        end;
      end;
    end;
  end;
end;

procedure TDll.SetFileName(const Value: String);
begin
  if Loaded then
    raise EDllError.CreateFmt('Do Unload before load another Module named: "%s"',
      [Value]);
  if FFileName <> Value then
  begin
    FFileName := Value;
    DoFileNameChange;
  end;
end;

procedure TDll.DoFileNameChange;
begin
  // do nonthing.
end;

procedure TDll.DoDllLoaded;
begin
  if Assigned(FOwner) and Assigned(FOwner.OnDllLoaded) then
    FOwner.OnDllLoaded(FOwner, Self);
end;

procedure TDll.DoDllUnLoaded;
begin
  //do nonthing.
end;

procedure TDll.DoPermitChange;
begin
  //do nonthing.
end;

procedure TDll.SetPermit(const Value: Boolean);
begin
  if FPermit <> Value then
  begin
    FPermit := Value;
    DoPermitChange;
  end;
end;

procedure TDll.DoBeforeDllUnLoaded;
begin
  if Assigned(FOwner) and Assigned(FOwner.OnDllBeforeUnLoaded) then
    FOwner.OnDllBeforeUnLoaded(FOwner, Self);
end;

{ TDllManager }

function TDllManager.Add(const FileName: String): Integer;
var
  Dll: TDll;
begin
  result := -1;
  Lock;
  try
    if DllsByName[FileName] = nil then
    begin
      Dll := FDllClass.Create;
      Dll.FileName := FileName;
      result := Add(Dll);
    end
    else
      result := -1;
  finally
    UnLock;
  end;
end;

constructor TDllManager.Create;
begin
  FDllClass := TDll;
  InitializeCriticalSection(FLock);
end;

destructor TDllManager.Destroy;
begin
  DeleteCriticalSection(FLock);
  inherited;
end;

function TDllManager.GetDlls(const Index: Integer): TDll;
begin
  Lock;
  try
    if (Index >=0) and (Index <= Count - 1) then
      result := Items[Index]
    else
      raise EDllError.CreateFmt('Error Index of GetDlls, Value: %d, Total Count: %d', [Index, Count]);
  finally
    UnLock;
  end;
end;

function TDllManager.GetDllsByName(const FileName: String): TDll;
var
  I: Integer;
begin
  Lock;
  try
    I := IndexOf(FileName);
    if I >= 0 then
      result := Dlls[I]
    else
      result := nil;
  finally
    UnLock;
  end;
end;

function TDllManager.IndexOf(const FileName: String): Integer;
var
  I: Integer;
begin
  result := -1;
  Lock;
  try
    for I := 0 to Count - 1 do
      if CompareText(FileName, Dlls[I].FileName) = 0 then
      begin
        result := I;
        break;
      end;
  finally
    UnLock;
  end;
end;

procedure TDllManager.Lock;
begin
  OutputDebugString(Pchar('TRLock DM' + IntToStr(GetCurrentThreadId) + ':' + IntToStr(DWORD(Self))));
  EnterCriticalSection(FLock);
  OutputDebugString(Pchar('Locked DM' + IntToStr(GetCurrentThreadId) + ':' + IntToStr(DWORD(Self))));
end;

procedure TDllManager.Notify(Ptr: Pointer; Action: TListNotification);
begin
  if Action = lnDeleted then
  begin
    //若TDll(Ptr).Owner和Self不同，则
    //表明由 TDll.Destroy 触发；
    if TDll(Ptr).Owner = Self then
    begin
      //防止FOwner设置为nil之后相关事件不能触发
      TDll(Ptr).DoBeforeDllUnLoaded;
      TDll(Ptr).FOwner := nil;
      TDll(Ptr).Free;
    end;
  end
  else
  if Action = lnAdded then
    TDll(Ptr).FOwner := Self;
  inherited;
end;

function TDllManager.Remove(const FileName: String): Integer;
var
  I: Integer;
begin
  result := -1;
  Lock;
  try
    I := IndexOf(FileName);
    if I >= 0 then
      result := Remove(Dlls[I])
    else
      result := -1;
  finally
    UnLock;
  end;
end;

procedure TDllManager.UnLock;
begin
  LeaveCriticalSection(FLock);
  OutputDebugString(Pchar('UnLock DM' + IntToStr(GetCurrentThreadId) + ':' + IntToStr(DWORD(Self))));
end;

end.

3 使用举例
3.1 类图

3.2 客户端组件

从TDll派生出TClientDll；

根据真实的动态库接口添加相关属性；
3.2.1 组件定义

unit untClientDll;
interface
uses
  Windows, Classes, SysUtils, untDllManager, untProcDefine;
type
  EClientDllError = Class(Exception);

  { TClientDll
    o 继承自 TDll;
    o 自动获取 ClientInitialize 地址并保存在 ClientInitialize 属性中；
    o 自动获取 ClientInsertTrigger 地址并保存在 ClientInsertTrigger 属性中；
  }

  TClientDll = Class(TDll)
  private
    FClientInitialize: TClientInitialize;
    FClientInsertTrigger: TClientInsertTrigger;
    FClientGetDescription: TClientGetDescription;
    FClientSetup: TClientSetup;
    FDescription: String;
    FUseTrigger: Bool;
  protected
    procedure DoDllLoaded; override;
    procedure DoDllUnLoaded; override;
  public
    constructor Create; override;
    property ClientGetDescription: TClientGetDescription read FClientGetDescription;
    property ClientInitialize: TClientInitialize read FClientInitialize;
    property ClientInsertTrigger: TClientInsertTrigger read FClientInsertTrigger;
    property ClientSetup: TClientSetup read FClientSetup;
    property Description: String read FDescription write FDescription;
    property UseTrigger: Bool read FUseTrigger write FUseTrigger;
  end;

implementation

{ TClientDll }

constructor TClientDll.Create;
begin
  inherited;
  FClientInitialize := nil;
  FClientInsertTrigger := nil;
  FClientGetDescription := nil;
  FClientSetup := nil;
end;

procedure TClientDll.DoDllLoaded;
begin
  FClientInitialize := GetProcAddress(csClientInitialize);
  if not Assigned(FClientInitialize) then
    raise EClientDllError.Create('No found of Proc "ClientInitialize".');
  FClientInsertTrigger := GetProcAddress(csClientInsertTrigger);
  if not Assigned(FClientInsertTrigger) then
    raise EClientDllError.Create('No found of Proc "ClientInsertTrigger".');
  //可选接口，即使不存在也不报错。
  FClientGetDescription := GetProcAddress(csClientGetDescription);
  FClientSetup := GetProcAddress(csClientSetup);
  inherited;
end;

procedure TClientDll.DoDllUnLoaded;
begin
  inherited;
  FClientInitialize := nil;
  FClientInsertTrigger := nil;
  FClientGetDescription := nil;
  FClientSetup := nil;
end;
end.

3.2.2 组件使用

procedure TXXXXServer.LoadClientDll(const FileName: String);
//功能：加载一个ClientDll，并将相关数据传递进去
var
  Index: Integer;
  Description: String;
  UseTrigger: Bool;
  AClientDll: TClientDll;
begin
  Index := FClientDlls.Add(FileName);
  if Index < 0 then
    raise EXXXXError.CreateFmt('ClientDll "%s" 之前已经装载.', [FileName]);
  //尝试读取地址
  try
    FClientDlls[Index].Loaded := True;
  finally
    if not FClientDlls[Index].Loaded then
      FClientDlls[Index].Free;
  end;
  //初始化该Client，同时将相关信息传入
  UseTrigger := False;
  AClientDll := TClientDll(FClientDlls[Index]);
  if Assigned(AClientDll.ClientSetup) then
    AClientDll.ClientSetup(mscAppPath + 'Client/', False);
end;

3.3 服务端组件
3.3.1 组件定义

unit untServerDll;
interface
uses
  Windows, Classes, SysUtils, untDllManager, untProcDefine;
type
  EServerDllError = Class(Exception);
  { TServerDll
    o 继承自 TDll;
    o 自动获取 QueryInterface 地址并保存在QueryInterface属性中；
  }
  TServerDll = Class(TDll)
  private
    FFunctions: TObject;
    FQueryInterface: TProcQueryInterface;
  protected
    procedure DoDllLoaded; override;
    procedure DoDllUnLoaded; override;
  public
    procedure RefreshAllFunctionsPermit;
    property Functions: TObject read FFunctions write FFunctions;
    property QueryInterface: TProcQueryInterface read FQueryInterface;
  end;
implementation
uses
  untFunctionProc;
{ TServerDll }
procedure TServerDll.DoDllLoaded;
begin
  FQueryInterface := GetProcAddress(csQueryInterface);
  if not Assigned(FQueryInterface) then
    raise EServerDllError.Create('No found of "QueryInterface" Proc.');
  inherited; //此句需要放在后面
end;

procedure TServerDll.DoDllUnLoaded;
begin
  inherited;
  FQueryInterface := nil;
end;

procedure TServerDll.RefreshAllFunctionsPermit;
var
  I: Integer;
begin
  Assert(FFunctions <> nil);
  for I := 0 to TFunctionList(FFunctions).Count - 1 do
    if TFunction(TFunctionList(FFunctions)[I]).Dll = Self then
      TFunction(TFunctionList(FFunctions)[I]).Permit := Permit;
end;
end.

3.3.2 组件使用

略。
