安卓学习之二--布局



1.线性布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:gravity="center"
    tools:context=".MainActivity">


    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:orientation="horizontal">

        <TextView
            android:id="@+id/textView6"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
android:textSize="20dp"
            android:text="用户名" />

        <EditText
            android:id="@+id/editText9"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:ems="10"
            android:layout_marginLeft="10dp"
            android:hint="请输入用户名"
            android:inputType="textPersonName" />
    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:orientation="horizontal">

        <TextView
            android:id="@+id/textView7"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textSize="20dp"

            android:text="密码" />

        <EditText
            android:id="@+id/editText11"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:ems="10"
            android:layout_marginLeft="10dp"
            android:hint="请输入密码"
            android:inputType="textPassword" />

    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:orientation="horizontal">

        <Button
            android:id="@+id/button5"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="登录" />

        <Button
            android:id="@+id/button6"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="注册" />
    </LinearLayout>
</LinearLayout>

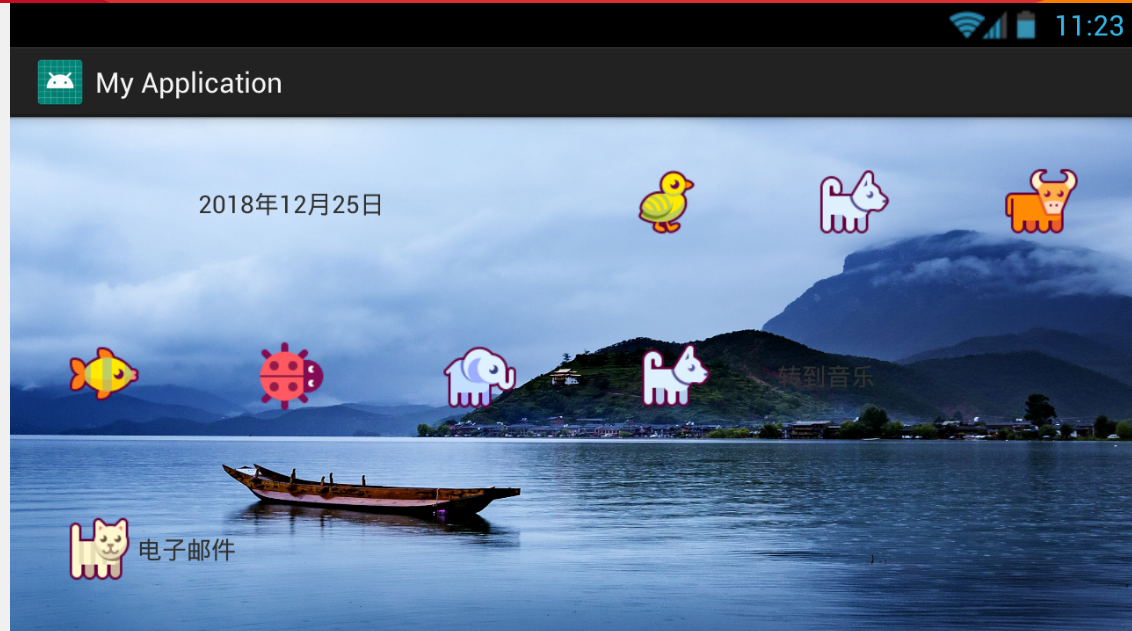

 2.表格布局



<?xml version="1.0" encoding="utf-8"?>
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:gravity="center"
    android:background="@mipmap/background"
    tools:context=".MainActivity">


    <TableRow
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_weight="1">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:gravity="center"
            android:orientation="vertical">

            <TextView
                android:id="@+id/textView9"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="2018年12月25日" />
        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:gravity="center"
            android:orientation="horizontal">

            <ImageView
                android:id="@+id/imageView"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:src="@mipmap/little_animal_02" />

            <ImageView
                android:id="@+id/imageView3"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:src="@mipmap/little_animal_10" />

            <ImageView
                android:id="@+id/imageView2"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:src="@mipmap/little_animal_04" />
        </LinearLayout>
    </TableRow>

    <TableRow
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_weight="1" >

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:gravity="center"
            android:orientation="horizontal">

            <ImageView
                android:id="@+id/imageView6"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:src="@mipmap/little_animal_16" />

            <ImageView
                android:id="@+id/imageView4"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:src="@mipmap/little_animal_19" />

            <ImageView
                android:id="@+id/imageView5"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:src="@mipmap/little_animal_14" />
        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:gravity="center"
            android:orientation="horizontal">

            <ImageView
                android:id="@+id/imageView7"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:src="@mipmap/little_animal_10" />

            <TextView
                android:id="@+id/textView10"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="2"
                android:text="转到音乐" />
        </LinearLayout>
    </TableRow>

    <TableRow
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_weight="1"
        android:gravity="left">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:gravity="left|center_vertical"
            android:orientation="horizontal">

            <ImageView
                android:id="@+id/imageView8"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:layout_marginLeft="30dp"
                android:src="@mipmap/little_animal_06" />

            <TextView
                android:id="@+id/textView11"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:text="电子邮件" />
        </LinearLayout>
    </TableRow>
</TableLayout>

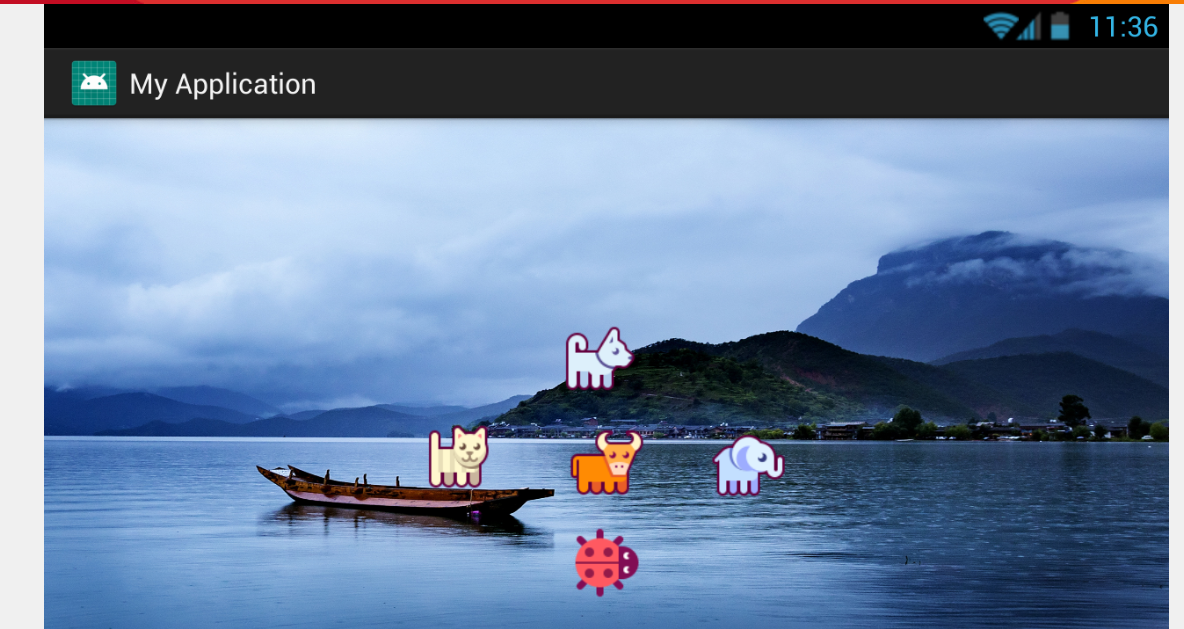

 3.约束布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:gravity="center"
    android:background="@mipmap/background"
    tools:context=".MainActivity">


    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_weight="2"
        android:orientation="horizontal">

    </LinearLayout>

    <android.support.constraint.ConstraintLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_weight="1">

        <ImageView
            android:id="@+id/imageView12"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginStart="8dp"
            android:layout_marginLeft="8dp"
            android:layout_marginEnd="8dp"
            android:layout_marginRight="8dp"
            android:src="@mipmap/little_animal_14"
            app:layout_constraintBottom_toBottomOf="@+id/imageView9"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintHorizontal_bias="0.125"
            app:layout_constraintStart_toEndOf="@+id/imageView9"
            app:layout_constraintTop_toTopOf="@+id/imageView9"
            app:layout_constraintVertical_bias="0.0" />

        <ImageView
            android:id="@+id/imageView11"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="8dp"
            android:layout_marginEnd="8dp"
            android:layout_marginRight="8dp"
            android:layout_marginBottom="8dp"
            android:src="@mipmap/little_animal_10"
            app:layout_constraintBottom_toTopOf="@+id/imageView9"
            app:layout_constraintEnd_toEndOf="@+id/imageView9"
            app:layout_constraintStart_toStartOf="@+id/imageView9"
            app:layout_constraintTop_toTopOf="parent" />

        <ImageView
            android:id="@+id/imageView9"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginStart="8dp"
            android:layout_marginLeft="8dp"
            android:layout_marginTop="8dp"
            android:layout_marginEnd="8dp"
            android:layout_marginRight="8dp"
            android:layout_marginBottom="8dp"
            android:src="@mipmap/little_animal_04"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <ImageView
            android:id="@+id/imageView10"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginStart="8dp"
            android:layout_marginLeft="8dp"
            android:layout_marginEnd="8dp"
            android:layout_marginRight="8dp"
            android:layout_marginBottom="8dp"
            android:src="@mipmap/little_animal_06"
            app:layout_constraintBottom_toBottomOf="@+id/imageView9"
            app:layout_constraintEnd_toStartOf="@+id/imageView9"
            app:layout_constraintHorizontal_bias="0.861"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="@+id/imageView9" />

        <ImageView
            android:id="@+id/imageView13"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginBottom="8dp"
            android:src="@mipmap/little_animal_19"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="@+id/imageView9"
            app:layout_constraintStart_toStartOf="@+id/imageView9"
            app:layout_constraintTop_toBottomOf="@+id/imageView9" />
    </android.support.constraint.ConstraintLayout>
</LinearLayout>
