Mybatis源码(一) 之SqlSession的创建

Mybatis源码(一) 之SqlSession的创建

近日学习了mybatis的源码，记录一下sqlSessionFactory的创建过程，SqlSessionFactory 是通过SqlSessionFactoryBuilder创建的，如下所示

// 获取Mybatis配置文件输入流
Reader reader = Resources.getResourceAsReader("mybatis-config.xml");
// 通过SqlSessionFactoryBuilder创建SqlSessionFactory实例
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(reader);
// 调用SqlSessionFactory的openSession（）方法，创建SqlSession实例
SqlSession session = sqlSessionFactory.openSession();

　

SqlSessionFactoryBuilder的相关源码如下：

public class SqlSessionFactoryBuilder {

  public SqlSessionFactory build(Reader reader) {
    return build(reader, null, null);
  }

  public SqlSessionFactory build(Reader reader, String environment) {
    return build(reader, environment, null);
  }

  public SqlSessionFactory build(Reader reader, Properties properties) {
    return build(reader, null, properties);
  }

  public SqlSessionFactory build(Reader reader, String environment, Properties properties) {
    try {
      XMLConfigBuilder parser = new XMLConfigBuilder(reader, environment, properties);
      return build(parser.parse());
    } catch (Exception e) {
      throw ExceptionFactory.wrapException("Error building SqlSession.", e);
    } finally {
      ErrorContext.instance().reset();
      try {
        reader.close();
      } catch (IOException e) {
        // Intentionally ignore. Prefer previous error.
      }
    }
  }

  public SqlSessionFactory build(InputStream inputStream) {
    return build(inputStream, null, null);
  }

  public SqlSessionFactory build(InputStream inputStream, String environment) {
    return build(inputStream, environment, null);
  }

  public SqlSessionFactory build(InputStream inputStream, Properties properties) {
    return build(inputStream, null, properties);
  }
  //通过XMLConfigBuilder解析mybatis配置，然后创建SqlSessionFactory对象
  public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
    try {
      XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
      return build(parser.parse());
    } catch (Exception e) {
      throw ExceptionFactory.wrapException("Error building SqlSession.", e);
    } finally {
      ErrorContext.instance().reset();
      try {
        inputStream.close();
      } catch (IOException e) {
        // Intentionally ignore. Prefer previous error.
      }
    }
  }

  public SqlSessionFactory build(Configuration config) {
    return new DefaultSqlSessionFactory(config);
  }

}

 XMLConfigBuilder 中主要就做了一个创建XPathParser解析器的工作，并把解析器放入到XMLConfigBuilder中

XMLConfigBuilder部分源码如下：

XmlConfigBuilder的parseConfiguration方法解析xml是根据Xpath方式解析的。解析相应的标签之后，又把属性赋值给Configuration对象。最后返回

public class XMLConfigBuilder extends BaseBuilder {

  private boolean parsed;
  private final XPathParser parser;
  private String environment;
  private final ReflectorFactory localReflectorFactory = new DefaultReflectorFactory();

  public XMLConfigBuilder(Reader reader) {
    this(reader, null, null);
  }

  public XMLConfigBuilder(Reader reader, String environment) {
    this(reader, environment, null);
  }

  public XMLConfigBuilder(Reader reader, String environment, Properties props) {
    this(new XPathParser(reader, true, props, new XMLMapperEntityResolver()), environment, props);
  }

  public XMLConfigBuilder(InputStream inputStream) {
    this(inputStream, null, null);
  }

  public XMLConfigBuilder(InputStream inputStream, String environment) {
    this(inputStream, environment, null);
  }

  public XMLConfigBuilder(InputStream inputStream, String environment, Properties props) {
    this(new XPathParser(inputStream, true, props, new XMLMapperEntityResolver()), environment, props);
  }

  private XMLConfigBuilder(XPathParser parser, String environment, Properties props) {
    super(new Configuration());
    ErrorContext.instance().resource("SQL Mapper Configuration");
    this.configuration.setVariables(props);
    this.parsed = false;
    this.environment = environment;
    this.parser = parser;
  }

  public Configuration parse() {
    // 防止parse（）方法被同一个实例多次调用
    if (parsed) {
      throw new BuilderException("Each XMLConfigBuilder can only be used once.");
    }
    parsed = true;
    // 调用XPathParser.evalNode（）方法，创建表示configuration节点的XNode对象。
    // 调用parseConfiguration（）方法对XNode进行处理
    parseConfiguration(parser.evalNode("/configuration"));
    return configuration;
  }

  // 解析mybatis-config文件中的标签
  private void parseConfiguration(XNode root) {
    try {
      //issue #117 read properties first
      propertiesElement(root.evalNode("properties"));
      Properties settings = settingsAsProperties(root.evalNode("settings"));
      loadCustomVfs(settings);
      typeAliasesElement(root.evalNode("typeAliases"));
      pluginElement(root.evalNode("plugins"));
      objectFactoryElement(root.evalNode("objectFactory"));
      objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
      reflectorFactoryElement(root.evalNode("reflectorFactory"));
      settingsElement(settings);
      // read it after objectFactory and objectWrapperFactory issue #631
      environmentsElement(root.evalNode("environments"));
      databaseIdProviderElement(root.evalNode("databaseIdProvider"));
      typeHandlerElement(root.evalNode("typeHandlers"));
      mapperElement(root.evalNode("mappers"));
    } catch (Exception e) {
      throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
    }
  }

由以上源码可知，build方法中XMLConfigBuilder 解析mybatis-config.xml文件得到Configuration对象。然后调用如下方法，创建的对象

SqlSessionFactory是一个接口，所以创建他的默认实现。DefaultSqlSessionFactory

  public SqlSessionFactory build(Configuration config) {
    return new DefaultSqlSessionFactory(config);
  }

　　

SqlSessionFactory是一个接口，可以通过接口中的 SqlSession openSession(); 方法获取SqlSession的实例。

SqlSessionFactory接口代码

public interface SqlSessionFactory {

  SqlSession openSession();

  SqlSession openSession(boolean autoCommit);
  SqlSession openSession(Connection connection);
  SqlSession openSession(TransactionIsolationLevel level);

  SqlSession openSession(ExecutorType execType);
  SqlSession openSession(ExecutorType execType, boolean autoCommit);
  SqlSession openSession(ExecutorType execType, TransactionIsolationLevel level);
  SqlSession openSession(ExecutorType execType, Connection connection);

  Configuration getConfiguration();

}

SqlSession也是一个接口，DefaultSqlSession是其实现类

选择实现类 DefaultSqlSessionFactory 源码片段

public class DefaultSqlSessionFactory implements SqlSessionFactory {

  private final Configuration configuration;

  public DefaultSqlSessionFactory(Configuration configuration) {
    this.configuration = configuration;
  }

  @Override
  public SqlSession openSession() {
    return openSessionFromDataSource(configuration.getDefaultExecutorType(), null, false);
  }

   private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
    Transaction tx = null;
    try {
      // 获取Mybatis主配置文件配置的环境信息
      final Environment environment = configuration.getEnvironment();
      // 创建事务管理器工厂
      final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
      // 创建事务管理器
      tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
      // 根据Mybatis主配置文件中指定的Executor类型创建对应的Executor实例
      final Executor executor = configuration.newExecutor(tx, execType);
      // 创建DefaultSqlSession实例
      return new DefaultSqlSession(configuration, executor, autoCommit);
    } catch (Exception e) {
      closeTransaction(tx); // may have fetched a connection so lets call close()
      throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }
  }
}

由此，SqlSession的实例就创建完成了

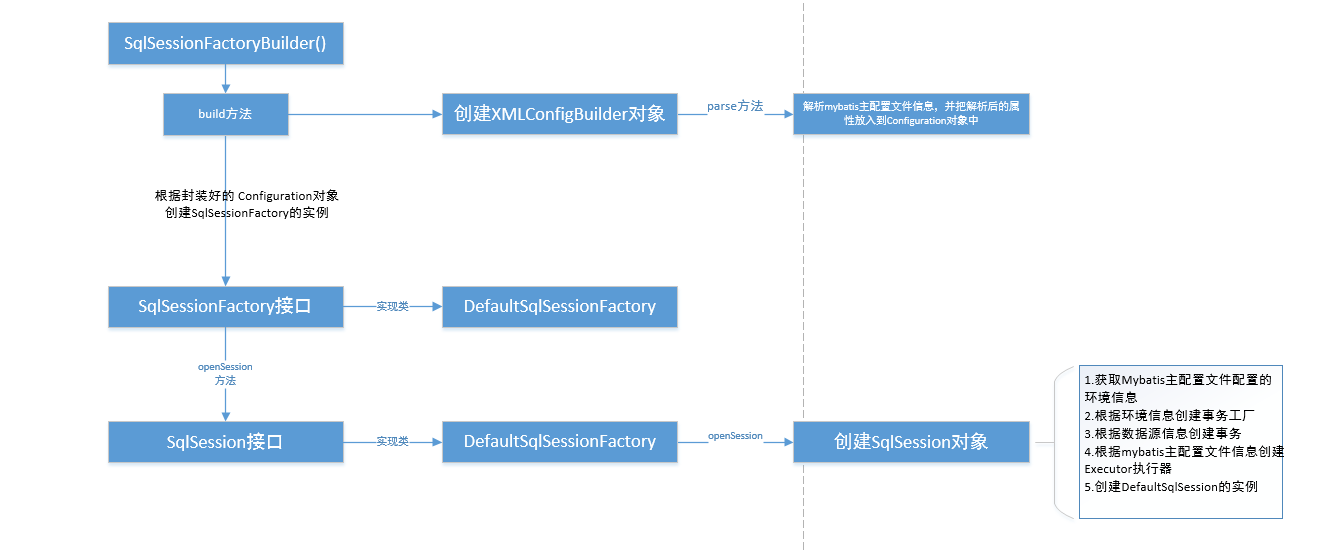

 给自己画个粗糙的流程图
