UCOSIII钩子函数

OSIdleTaskHook
空闲任务调用这个函数，可以用来让CPU进入低功耗模式

void  OSIdleTaskHook (void)
{
#if OS_CFG_APP_HOOKS_EN > 0u
    if (OS_AppIdleTaskHookPtr != (OS_APP_HOOK_VOID)0) {
        (*OS_AppIdleTaskHookPtr)();
    }
#endif
}

OSInitHook
系统初始化函数OSInit()调用此函数

void  OSInitHook (void)
{
    /* 8-byte align the ISR stack */
    OS_CPU_ExceptStkBase = (CPU_STK *)(OSCfg_ISRStkBasePtr + OSCfg_ISRStkSize);
    OS_CPU_ExceptStkBase = (CPU_STK *)((CPU_STK)(OS_CPU_ExceptStkBase) & 0xFFFFFFF8);
}

OSStatTaskHook
统计任务每秒中都会调用这个函数，此函数允许你向统计任务中添加自己的应用函数

void  OSStatTaskHook (void)
{
#if OS_CFG_APP_HOOKS_EN > 0u
    if (OS_AppStatTaskHookPtr != (OS_APP_HOOK_VOID)0) {
        (*OS_AppStatTaskHookPtr)();
    }
#endif
}

OSTaskCreateHook
任务创建的钩子函数

void  OSTaskCreateHook (OS_TCB  *p_tcb)
{
#if OS_CFG_APP_HOOKS_EN > 0u
    if (OS_AppTaskCreateHookPtr != (OS_APP_HOOK_TCB)0) {
        (*OS_AppTaskCreateHookPtr)(p_tcb);
    }
#else
    (void)p_tcb; /* Prevent compiler warning */
#endif
}

OSTaskDelHook
任务删除的钩子函数

void  OSTaskDelHook (OS_TCB  *p_tcb)
{
#if OS_CFG_APP_HOOKS_EN > 0u
    if (OS_AppTaskDelHookPtr != (OS_APP_HOOK_TCB)0) {
        (*OS_AppTaskDelHookPtr)(p_tcb);
    }
#else
    (void)p_tcb; /* Prevent compiler warning */
#endif
}

OSTaskReturnHook
任务意外返回时调用的钩子函数，比如删除某个任务

void  OSTaskReturnHook (OS_TCB  *p_tcb)
{
#if OS_CFG_APP_HOOKS_EN > 0u
    if (OS_AppTaskReturnHookPtr != (OS_APP_HOOK_TCB)0) {
        (*OS_AppTaskReturnHookPtr)(p_tcb);
    }
#else
    (void)p_tcb; /* Prevent compiler warning */
#endif
}

OSTaskSwHook
任务切换时候调用的钩子函数

void  OSTaskSwHook (void)
{
#if OS_CFG_TASK_PROFILE_EN > 0u
    CPU_TS  ts;
#endif
#ifdef  CPU_CFG_INT_DIS_MEAS_EN
    CPU_TS  int_dis_time;
#endif


#if (OS_CPU_ARM_FP_EN == DEF_ENABLED)
//    if ((OSTCBCurPtr->Opt & OS_OPT_TASK_SAVE_FP) != (OS_OPT)0) {
//        OS_CPU_FP_Reg_Push(OSTCBCurPtr->StkPtr);
//    }

//    if ((OSTCBHighRdyPtr->Opt & OS_OPT_TASK_SAVE_FP) != (OS_OPT)0) {
//        OS_CPU_FP_Reg_Pop(OSTCBHighRdyPtr->StkPtr);
//    }
#endif

#if OS_CFG_APP_HOOKS_EN > 0u
    if (OS_AppTaskSwHookPtr != (OS_APP_HOOK_VOID)0) {
        (*OS_AppTaskSwHookPtr)();
    }
#endif

#if (defined(TRACE_CFG_EN) && (TRACE_CFG_EN > 0u))
    TRACE_OS_TASK_SWITCHED_IN(OSTCBHighRdyPtr);             /* Record the event.                                      */
#endif

#if OS_CFG_TASK_PROFILE_EN > 0u
    ts = OS_TS_GET();
    if (OSTCBCurPtr != OSTCBHighRdyPtr) {
        OSTCBCurPtr->CyclesDelta  = ts - OSTCBCurPtr->CyclesStart;
        OSTCBCurPtr->CyclesTotal += (OS_CYCLES)OSTCBCurPtr->CyclesDelta;
    }

    OSTCBHighRdyPtr->CyclesStart = ts;
#endif

#ifdef  CPU_CFG_INT_DIS_MEAS_EN
    int_dis_time = CPU_IntDisMeasMaxCurReset(); /* Keep track of per-task interrupt disable time */
    if (OSTCBCurPtr->IntDisTimeMax < int_dis_time) {
        OSTCBCurPtr->IntDisTimeMax = int_dis_time;
    }
#endif

#if OS_CFG_SCHED_LOCK_TIME_MEAS_EN > 0u
    /* Keep track of per-task scheduler lock time */
    if (OSTCBCurPtr->SchedLockTimeMax < OSSchedLockTimeMaxCur) {
        OSTCBCurPtr->SchedLockTimeMax = OSSchedLockTimeMaxCur;
    }
    OSSchedLockTimeMaxCur = (CPU_TS)0; /* Reset the per-task value */
#endif
}

OSTimeTickHook
滴答定时器调用的钩子函数

void  OSTimeTickHook (void)
{
#if OS_CFG_APP_HOOKS_EN > 0u
    if (OS_AppTimeTickHookPtr != (OS_APP_HOOK_VOID)0) {
        (*OS_AppTimeTickHookPtr)();
    }
#endif
}

使用举例

void  App_OS_SetAllHooks (void)
{
#if OS_CFG_APP_HOOKS_EN > 0u
    CPU_SR_ALLOC();


    CPU_CRITICAL_ENTER();
    OS_AppTaskCreateHookPtr = App_OS_TaskCreateHook;
    OS_AppTaskDelHookPtr    = App_OS_TaskDelHook;
    OS_AppTaskReturnHookPtr = App_OS_TaskReturnHook;

    OS_AppIdleTaskHookPtr   = App_OS_IdleTaskHook;
    OS_AppStatTaskHookPtr   = App_OS_StatTaskHook;
    OS_AppTaskSwHookPtr     = App_OS_TaskSwHook;
    OS_AppTimeTickHookPtr   = App_OS_TimeTickHook;
    CPU_CRITICAL_EXIT();
#endif
}

void App_OS_IdleTaskHook (void)
{
    static int num;
    num++;
    if(num%50000==0)
    {
        printf("Idle Task Running 50000 times!
");
    }
}

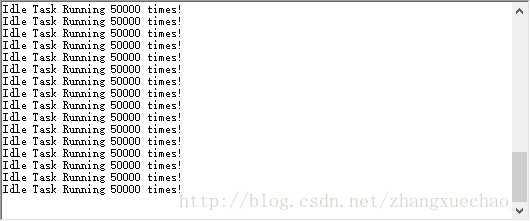

实验现象
