[root@localhost android-6.0.1_r46]# cat /etc/redhat-release
Fedora release 23 (Twenty Three)
[root@localhost android-6.0.1_r46]# uname -a
Linux localhost.localdomain 4.4.8-300.fc23.x86_64 #1 SMP Wed Apr 20 16:59:27 UTC 2016 x86_64 x86_64 x86_64 GNU/Linux
[root@localhost android-6.0.1_r46]# free -h
total used free shared buff/cache available
Mem: 7.5G 6.2G 54M 579M 1.2G 600M
Swap: 1.0G 1.0G 0B
[root@localhost android-6.0.1_r46]# cat /proc/cpuinfo
processor : 3
vendor_id : GenuineIntel
cpu family : 6
model : 60
model name : Intel(R) Core(TM) i5-4200M CPU @ 2.50GHz
stepping : 3
microcode : 0x1e
cpu MHz : 2153.906
cache size : 3072 KB
+++++++++++++++++++++++++++++++++++++++++++++
download android source code
+++++++++++++++++++++++++++++++++++++++++++++
[root@localhost android-6.0.1_r46]# pwd
/run/media/root/158a840e-63fa-4544-b0b8-dc0d40c79241/android/android-6.0.1_r46
[root@localhost android-6.0.1_r46]#
git config --global user.name "tongguang"
git config --global user.email "jsjoscpubupt@gmail.com"
repo init -u https://android.googlesource.com/platform/manifest
repo init -u https://android.googlesource.com/platform/manifest -b android-4.0.1_r1
repo init -u https://android.googlesource.com/platform/manifest -b android-5.0.0_r1
repo init -u https://android.googlesource.com/platform/manifest -b android-5.0.0_r2
repo init -u https://android.googlesource.com/platform/manifest -b android-5.0.2_r1
repo init -u https://android.googlesource.com/platform/manifest -b android-5.1.1_r37
repo init -u https://android.googlesource.com/platform/manifest -b android-6.0.1_r46
repo sync
+++++++++++++++++++++++++++++++++++++++++++++
[root@localhost gem5-stable]# free
total used free shared buff/cache available
Mem: 7892744 4433200 222784 520468 3236760 2807120
Swap: 1028124 1028124 0
[root@localhost gem5-stable]# free -h
total used free shared buff/cache available
Mem: 7.5G 4.2G 218M 508M 3.1G 2.7G
Swap: 1.0G 1.0G 0B
[root@localhost gem5-stable]#
[root@localhost android-6.0.1_r46]# pwd
/run/media/root/158a840e-63fa-4544-b0b8-dc0d40c79241/android/android-6.0.1_r46
[root@localhost android-6.0.1_r46]# ls
Android.bp bootstrap.bash developers external libcore out prebuilts tools
art build development frameworks libnativehelper packages sdk
bionic cts device hardware Makefile pdk system
bootable dalvik docs kernel ndk platform_testing toolchain
[root@localhost android-6.0.1_r46]#
java -Xmx5000M -Xms1500M -XshowSettings:all
++++++++++++++++++++++++++++++++++++++++
Establishing a Build Environment
++++++++++++++++++++++++++++++++++++++++
http://source.android.com/source/initializing.html
Put the following in your .bashrc (or equivalent):
export USE_CCACHE=1
export CCACHE_DIR=/run/media/root/158a840e-63fa-4544-b0b8-dc0d40c79241/ccache
-----------------------
In the root of the source tree, do the following:
[root@localhost android-6.0.1_r46]# pwd
/run/media/root/158a840e-63fa-4544-b0b8-dc0d40c79241/android/android-6.0.1_r46
[root@localhost android-6.0.1_r46]# ls
export USE_CCACHE=1
export CCACHE_DIR=/run/media/root/158a840e-63fa-4544-b0b8-dc0d40c79241/ccache
prebuilts/misc/linux-x86/ccache/ccache -M 50G
The suggested cache size is 50-100G.
On Linux, you can watch ccache being used by doing the following:
watch -n1 -d prebuilts/misc/linux-x86/ccache/ccache -s
-----------------------
++++++++++++++++++++++++++++++++++++++++
building
++++++++++++++++++++++++++++++++++++++++
The suggested cache size is 50-100GB. You will need to run the following command once you have downloaded the source code:
prebuilts/misc/linux-x86/ccache/ccache -M 50G
. build/envsetup.sh
lunch aosp_arm-userdebug
make -j4
-----------------------
can ignore
-----------------------
find: “frameworks/base/docs/html-ndk”: 没有那个文件或目录
-----------------------
++++++++++++++++++++++++++++++++++++++++
need java-1.7.0-openjdk, not java-1.8.0-openjdk
++++++++++++++++++++++++++++++++++++++++
java -version
[root@localhost gem5-stable]# ls /usr/lib/jvm/
java java-openjdk jre-1.8.0-openjdk-1.8.0.91-6.b14.fc23.x86_64
java-1.8.0 jre jre-openjdk
java-1.8.0-openjdk jre-1.8.0
java-1.8.0-openjdk-1.8.0.91-6.b14.fc23.x86_64 jre-1.8.0-openjdk
[root@localhost gem5-stable]#
============================================
Checking build tools versions...
************************************************************
You are attempting to build with the incorrect version
of java.
Your version is: openjdk version "1.8.0_91" OpenJDK Runtime Environment (build 1.8.0_91-b14) OpenJDK 64-Bit Server VM (build 25.91-b14, mixed mode).
The required version is: "1.7.x"
Please follow the machine setup instructions at
https://source.android.com/source/initializing.html
************************************************************
build/core/main.mk:171: *** stop。 停止。
#### make failed to build some targets (28 seconds) ####
[root@localhost android-6.0.1_r46]#
[root@localhost android-6.0.1_r46]# export JAVA_HOME=/usr/lib/jvm/java-1.7.0-openjdk-1.7.0.75-2.5.4.2.fc20.x86_64
[root@localhost android-6.0.1_r46]# export PATH=$JAVA_HOME/bin:$PATH
[root@localhost android-6.0.1_r46]# java -version
java version "1.7.0_75"
OpenJDK Runtime Environment (fedora-2.5.4.2.fc20-x86_64 u75-b13)
OpenJDK 64-Bit Server VM (build 24.75-b04, mixed mode)
[root@localhost android-6.0.1_r46]#
*********************************************************
install java-1.7.0-openjdk
*********************************************************
http://koji.fedoraproject.org/koji/buildinfo?buildID=605625
dnf search openjdk
dnf install java-atk-wrapper
[root@localhost 桌面]# ls java-1.7.0-openjdk-*
java-1.7.0-openjdk-1.7.0.75-2.5.4.2.fc20.x86_64.rpm
java-1.7.0-openjdk-accessibility-1.7.0.75-2.5.4.2.fc20.x86_64.rpm
java-1.7.0-openjdk-debuginfo-1.7.0.75-2.5.4.2.fc20.x86_64.rpm
java-1.7.0-openjdk-demo-1.7.0.75-2.5.4.2.fc20.x86_64.rpm
java-1.7.0-openjdk-devel-1.7.0.75-2.5.4.2.fc20.x86_64.rpm
java-1.7.0-openjdk-headless-1.7.0.75-2.5.4.2.fc20.x86_64.rpm
java-1.7.0-openjdk-src-1.7.0.75-2.5.4.2.fc20.x86_64.rpm
[root@localhost 桌面]# rpm -ivh --force --nodeps java-1.7.0-openjdk-*
[root@localhost 桌面]# java -version
[root@localhost 桌面]# ls /usr/lib/jvm/
export JAVA_HOME=/usr/lib/jvm/java-1.7.0-openjdk-1.7.0.75-2.5.4.2.fc20.x86_64
export PATH=$JAVA_HOME/bin:$PATH
*********************************************************
make -j4
*********************************************************
Install: out/host/linux-x86/lib64/libartd-compiler.so
java -Xmx3500m -jar out/host/linux-x86/framework/jill.jar --output out/target/common/obj/JAVA_LIBRARIES/sdk_v8_intermediates/classes.jack.tmpjill.jack prebuilts/sdk/8/android.jar
java -Xmx3500m -jar out/host/linux-x86/framework/jill.jar --output out/target/common/obj/JAVA_LIBRARIES/sdk_v9_intermediates/classes.jack.tmpjill.jack prebuilts/sdk/9/android.jar
java -Xmx3500m -jar out/host/linux-x86/framework/jill.jar --output out/target/common/obj/JAVA_LIBRARIES/sdk_v4_intermediates/classes.jack.tmpjill.jack prebuilts/sdk/4/android.jar
java -Xmx3500m -jar out/host/linux-x86/framework/jill.jar --output out/target/common/obj/JAVA_LIBRARIES/sdk_v20_intermediates/classes.jack.tmpjill.jack prebuilts/sdk/20/android.jar
java -Xmx3500m -jar out/host/linux-x86/framework/jill.jar --output out/target/common/obj/JAVA_LIBRARIES/sdk_v19_intermediates/classes.jack.tmpjill.jack prebuilts/sdk/19/android.jar
make: fork: 无法分配内存
make: *** Deleting file 'out/target/common/obj/JAVA_LIBRARIES/sdk_v20_intermediates/classes.jack'
------------------------------------------
xkill, 关闭firefox，释放内存
------------------------------------------
*********************************************************
ERROR: Bad request, see Jack server log (/tmp/jack-root/jack-8072.log)
build/core/java.mk:643: recipe for target 'out/target/common/obj/JAVA_LIBRARIES/framework_intermediates/with-local/classes.dex' failed
make: *** [out/target/common/obj/JAVA_LIBRARIES/framework_intermediates/with-local/classes.dex] Error 41
make: *** 正在等待未完成的任务....
DroidDoc took 26 sec. to write docs to out/target/common/docs/system-api-stubs
DroidDoc took 27 sec. to write docs to out/target/common/docs/api-stubs
#### make failed to build some targets (02:09:42 (hh:mm:ss)) ####
------------------------------------------
it is OK to exe "make -j4" again
------------------------------------------
Creating filesystem with parameters:
Size: 1610612736
Block size: 4096
Blocks per group: 32768
Inodes per group: 8192
Inode size: 256
Journal blocks: 6144
Label: system
Blocks: 393216
Block groups: 12
Reserved block group size: 95
Created filesystem with 1653/98304 inodes and 136658/393216 blocks
Install system fs image: out/target/product/generic/system.img
out/target/product/generic/system.img+ maxsize=1644333504 blocksize=2112 total=1610612736 reserve=16610880
#### make completed successfully (45:33 (mm:ss)) ####
[root@localhost android-6.0.1_r46]#
#### make completed successfully (02:09:42 (hh:mm:ss)) + (45:33 (mm:ss)) = (02:55:15 (hh:mm:ss)) ####
------------------------------------------
So far, build android successfully.
------------------------------------------
*********************************************************
[root@localhost android-6.0.1_r46]# cd out/target/product/generic/
[root@localhost generic]# pwd
/run/media/root/158a840e-63fa-4544-b0b8-dc0d40c79241/android/android-6.0.1_r46/out/target/product/generic
[root@localhost generic]# du -hs *
4.0K android-info.txt
4.0K cache
5.1M cache.img
72K clean_steps.mk
424K data
66M dex_bootjars
113M gen
68K installed-files.txt
10G obj
4.0K previous_build_config.mk
880K ramdisk.img
708K recovery
1.6M root
1.7G symbols
484M system
1.6G system.img
11M userdata.img
[root@localhost generic]# ls -p
android-info.txt clean_steps.mk gen/ previous_build_config.mk root/ system.img
cache/ data/ installed-files.txt ramdisk.img symbols/ userdata.img
cache.img dex_bootjars/ obj/ recovery/ system/

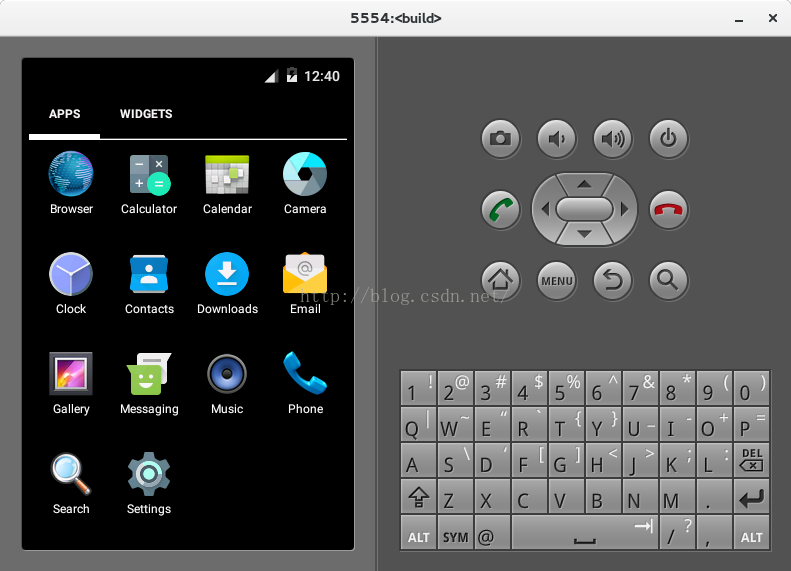

[root@localhost generic]# emulator
emulator: WARNING: system partition size adjusted to match image file (1536 MB > 200 MB)
emulator: WARNING: data partition size adjusted to match image file (550 MB > 200 MB)
Creating filesystem with parameters:
Size: 69206016
Block size: 4096
Blocks per group: 32768
Inodes per group: 4224
Inode size: 256
Journal blocks: 1024
Label:
Blocks: 16896
Block groups: 1
Reserved block group size: 7
Created filesystem with 11/4224 inodes and 1302/16896 blocks
----------
or execute the following commands.
----------
[root@localhost android-6.0.1_r46]# pwd
/run/media/root/158a840e-63fa-4544-b0b8-dc0d40c79241/android/android-6.0.1_r46
[root@localhost android-6.0.1_r46]# emulator -sysdir out/target/product/generic -system system.img
++++++++++++++++++++++++++++++++++++++++
So far, all is OK
++++++++++++++++++++++++++++++++++++++++
++++++++++++++++++++++++++++++++++++++++
example: alter the name of the application Messaging
++++++++++++++++++++++++++++++++++++++++
[root@localhost android-6.0.1_r46]# gedit packages/apps/Messaging/res/values/strings.xml
<!-- The name of the application as it appears under the main Launcher icon and in various activity titles -->
<string name="app_name">Messaging-ztg</string>
[root@localhost android-6.0.1_r46]# cd packages/apps/Messaging
[root@localhost Messaging]# pwd
/run/media/root/158a840e-63fa-4544-b0b8-dc0d40c79241/android/android-6.0.1_r46/packages/apps/Messaging
[root@localhost Messaging]# ls
AndroidManifest.xml assets ForceProguard.mk proguard.flags proguard-test.flags src tools
Android.mk build jni proguard-release.flags res tests version.mk
[root@localhost Messaging]# mm
Install: out/target/product/generic/data/app/messagingtests/messagingtests.apk
make: Leaving directory '/run/media/root/158a840e-63fa-4544-b0b8-dc0d40c79241/android/android-6.0.1_r46'
#### make completed successfully (01:30 (mm:ss)) ####
[root@localhost Messaging]#
[root@localhost android-6.0.1_r46]# adb shell
root@generic:/ # mount -o remount,rw /system
[root@localhost android-6.0.1_r46]#
adb push out/target/product/generic/data/app/messagingtests/messagingtests.apk system/app/messaging/messaging.apk
++++++++++++++++++++++
[root@localhost Messaging]# cd -
/run/media/root/158a840e-63fa-4544-b0b8-dc0d40c79241/android/android-6.0.1_r46
[root@localhost android-6.0.1_r46]# tree out/target/product/generic/system/priv-app/MmsService/
out/target/product/generic/system/priv-app/MmsService/
├── MmsService.apk
└── oat
└── arm
└── MmsService.odex
2 directories, 2 files
[root@localhost android-6.0.1_r46]# emulator -sysdir out/target/product/generic -system system.img
[root@localhost android-6.0.1_r46]# adb shell
root@generic:/ # mount -o remount,rw /system
root@generic:/ # df
Filesystem Size Used Free Blksize
/dev 243.4M 68.0K 243.3M 4096
/sys/fs/cgroup 243.4M 12.0K 243.4M 4096
/mnt 243.4M 0.0K 243.4M 4096
/system 1.5G 509.7M 1002.2M 4096
/data 541.3M 81.1M 460.2M 4096
/cache 65.0M 4.1M 60.9M 4096
/storage 243.4M 0.0K 243.4M 4096
[root@localhost android-6.0.1_r46]#
adb push out/target/product/generic/system/priv-app/MmsService/MmsService.apk system/priv-app/MmsService/
adb push out/target/product/generic/system/priv-app/MmsService/oat/arm/MmsService.odex system/priv-app/MmsService/oat/arm
[root@localhost android-6.0.1_r46]# emulator -sysdir out/target/product/generic -system system.img
++++++++++++++++++++++++++++++++++++++++
So far, example is not OK
++++++++++++++++++++++++++++++++++++++++
http://gem5.org/Android_KitKat
[root@localhost android]# pwd
/run/media/root/158a840e-63fa-4544-b0b8-dc0d40c79241/android
[root@localhost android]#
dd if=/dev/zero of=myimage.img bs=1M count=2048
losetup /dev/loop0 myimage.img
fdisk /dev/loop0
--------------------
Part.No Usage Approximate Size
1 / 500MB
2 /data 1GB
3 /cache 500MB
--------------------
partprobe /dev/loop0
mkfs.ext4 -L AndroidRoot /dev/loop0p1
mkfs.ext4 -L AndroidData /dev/loop0p2
mkfs.ext4 -L AndroidCache /dev/loop0p3
mkdir -p /mnt/android
mount /dev/loop0p1 /mnt/android
cd /mnt/android
zcat AOSP/out/target/product/generic/ramdisk.img | cpio -i
mkdir cache
mkdir -p /mnt/tmp
mount -oro,loop AOSP/out/target/product/generic/system.img /mnt/tmp
cp -a /mnt/tmp/* system/
umount /mnt/android
losetup -d /dev/loop0
++++++++++++++++++++++++++++++++++++++++
++++++++++++++++++++++++++++++++++++++++
