• 一、通过redis_exporter监控redis
• 1.1 下载镜像
• 1.2 运行服务
• 1.3 配置 Prometheus 添加redis监控目标主机
• 1.4 监控Redis集群，配置Prometheus.yml
• 1.5 重启Prometheus
• 1.6 接入Grafana监控展示模板
• 1.7 告警规则
• 二、通过CAdvisor监控Docker
• 2.1 启动CAdvisor
• 2.2 配置Prometheus
• 2.3 重启prometheus容器
• 2.4 Prometheus监控端查看是否介入
• 2.5 访问被监控端cAdvisor捕获的数据
• 2.6 配置Grafana监控图表
• 三、通过mysql_exporter监控Mysql
• 3.1 mysqld exporter方式监控Mysql
• 3.2 配置alertmanager报警,添加prometheus配置
• 四、通过node_exporter监控服务器信息
• 五、Prometheus监控JVM

---

---

相关博文原文地址：
博客园：小哥boy：Prometheus入门到放弃(7)之redis_exporter部署
豌豆代理：Prometheus 监控Docker服务器及Granfanna可视化
简书：baiyongjie：prometheus 监控Docker
博客园：海口-熟练工：参考Redis集群监控方案：Prometheus 监控 Redis 集群的正确姿势

---

---

一、通过redis_exporter监控redis

1.1 下载镜像

 docker pull oliver006/redis_exporter

1.2 运行服务

docker run -d --name redis_exporter -p 9121:9121 oliver006/redis_exporter --redis.addr redis://172.16.11.51:6379 --redis.password '123456'

参数解释：

1. –redis.addr 指定redis地址，由于这里使用docker起的服务，所以不能使用127.0.0.1地址。
2. –redis.password redis认证密码，如果没有密码，该参数不需要

Docker方式启动Prometheus：

docker run -d -p 9090:9090 --name=prometheus -v /root/software/prometheus/prometheus-config.yml:/etc/prometheus/prometheus.yml prom/prometheus

1.3 配置 Prometheus 添加redis监控目标主机

  - job_name: "redis-sit"
    static_configs:
    - targets: ['172.16.11.51:9121']

1.4 监控Redis集群，配置Prometheus.yml

切记注意yml的格式缩进问题！！！

  - job_name: 'redis_exporter_targets'
    static_configs:
      - targets:
        - redis://172.18.11.139:7000
        - redis://172.18.11.139:7001
        - redis://172.18.11.140:7002
        - redis://172.18.11.140:7003
        - redis://172.18.11.141:7004
        - redis://172.18.11.141:7005
    metrics_path: /scrape
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 172.18.11.139:9121

启动Redis_exporter的命令如上：
只要能连接到一个集群的一个节点，自然就能查询其他节点的指标了。

docker run -d --name redis_exporter -p 9121:9121 oliver006/redis_exporter --redis.addr redis://172.16.11.51:6379 --redis.password '123456'

1.5 重启Prometheus

Docker方式启动Prometheus：

docker run -d -p 9090:9090 --name=prometheus -v /root/software/prometheus/prometheus-config.yml:/etc/prometheus/prometheus.yml prom/prometheus

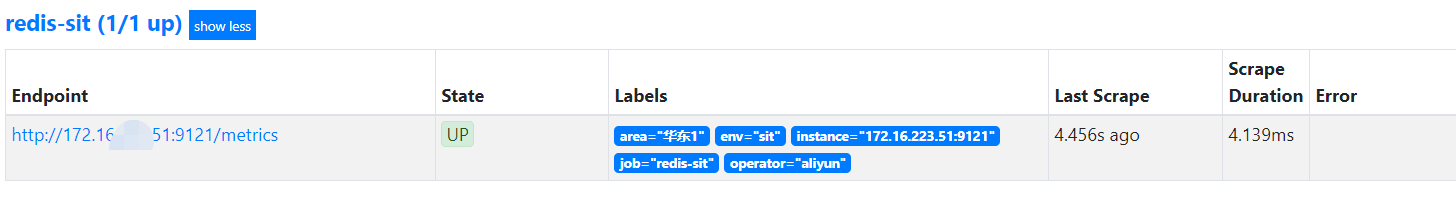

重启prometheus后，可以看到redis主机已经添加到prometheus监控列表：

1.6 接入Grafana监控展示模板

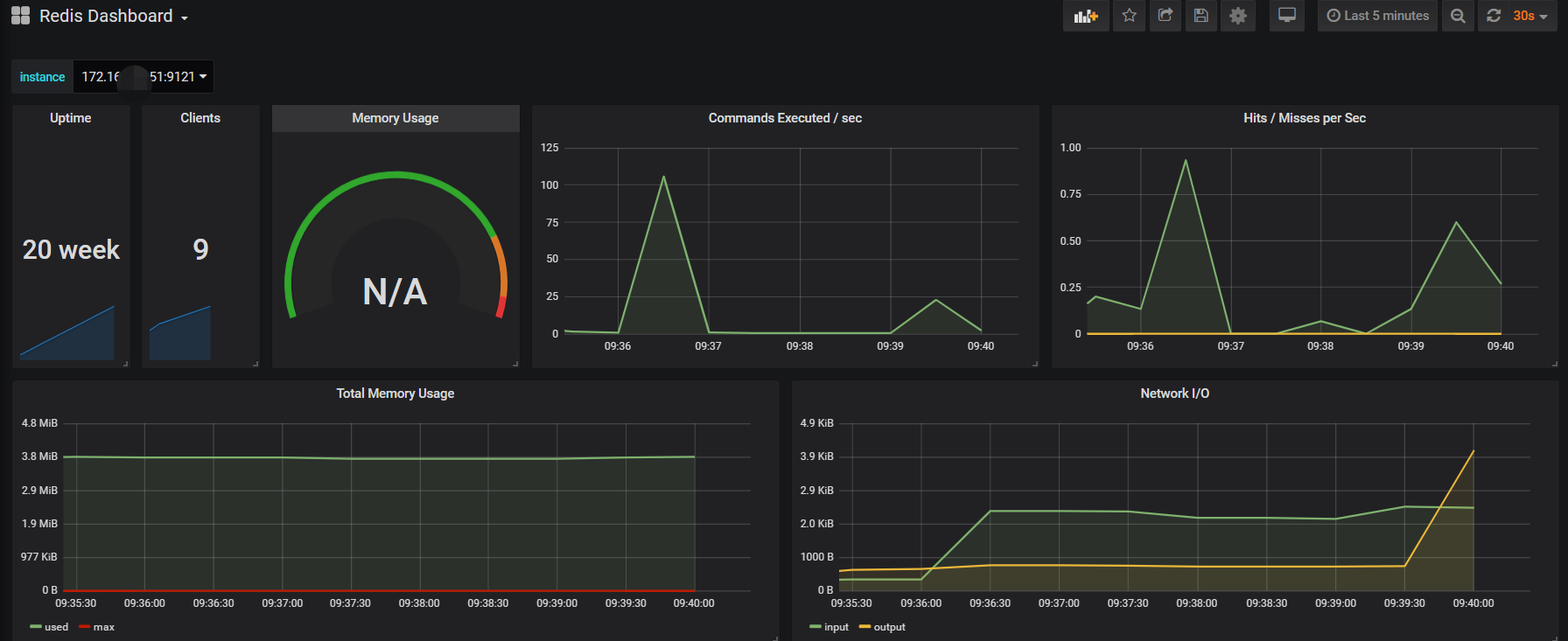

redis_exporter 监控模板，业界普遍推荐使用Grafana模板库中编号为763的，https://grafana.com/dashboards/763

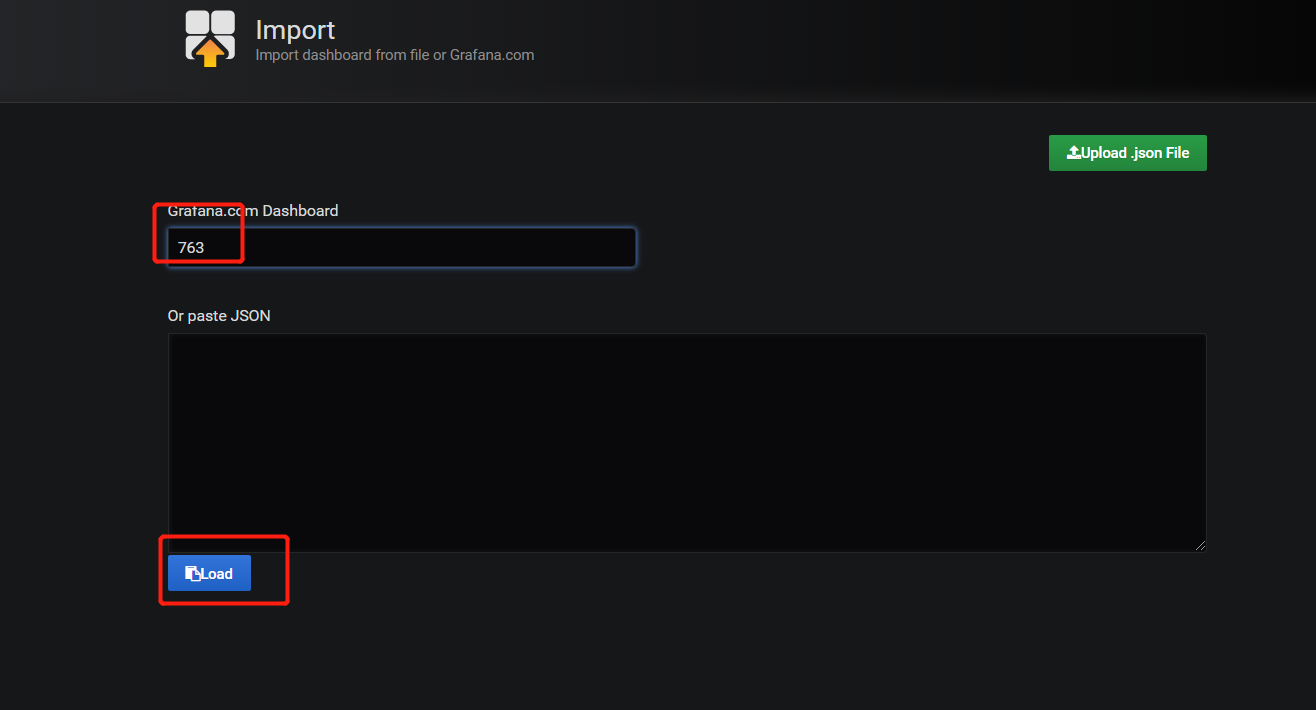

如下图所示，填写，模板编号，点击加载即可。

1.7 告警规则

groups:
- name:  Redis
  rules:
    - alert: RedisDown
      expr: redis_up  == 0
      for: 5m
      labels:
        severity: error
      annotations:
        summary: "Redis down (instance {{ $labels.instance }})"
        description: "Redis 挂了啊，mmp
  VALUE = {{ $value }}
  LABELS: {{ $labels }}"
    - alert: MissingBackup
      expr: time() - redis_rdb_last_save_timestamp_seconds > 60 * 60 * 24
      for: 5m
      labels:
        severity: error
      annotations:
        summary: "Missing backup (instance {{ $labels.instance }})"
        description: "Redis has not been backuped for 24 hours
  VALUE = {{ $value }}
  LABELS: {{ $labels }}"
    - alert: OutOfMemory
      expr: redis_memory_used_bytes / redis_total_system_memory_bytes * 100 > 90
      for: 5m
      labels:
        severity: warning
      annotations:
        summary: "Out of memory (instance {{ $labels.instance }})"
        description: "Redis is running out of memory (> 90%)
  VALUE = {{ $value }}
  LABELS: {{ $labels }}"
    - alert: ReplicationBroken
      expr: delta(redis_connected_slaves[1m]) < 0
      for: 5m
      labels:
        severity: error
      annotations:
        summary: "Replication broken (instance {{ $labels.instance }})"
        description: "Redis instance lost a slave
  VALUE = {{ $value }}
  LABELS: {{ $labels }}"
    - alert: TooManyConnections
      expr: redis_connected_clients > 1000
      for: 5m
      labels:
        severity: warning
      annotations:
        summary: "Too many connections (instance {{ $labels.instance }})"
        description: "Redis instance has too many connections
  VALUE = {{ $value }}
  LABELS: {{ $labels }}"
    - alert: NotEnoughConnections
      expr: redis_connected_clients < 5
      for: 5m
      labels:
        severity: warning
      annotations:
        summary: "Not enough connections (instance {{ $labels.instance }})"
        description: "Redis instance should have more connections (> 5)
  VALUE = {{ $value }}
  LABELS: {{ $labels }}"
    - alert: RejectedConnections
      expr: increase(redis_rejected_connections_total[1m]) > 0
      for: 5m
      labels:
        severity: error
      annotations:
        summary: "Rejected connections (instance {{ $labels.instance }})"
        description: "Some connections to Redis has been rejected
  VALUE = {{ $value }}
  LABELS: {{ $labels }}"

二、通过CAdvisor监控Docker

2.1 启动CAdvisor

docker run --volume=/:/rootfs:ro --volume=/var/run:/var/run:rw
  --volume=/sys:/sys:ro
  --volume=/var/lib/docker/:/var/lib/docker:ro
  --volume=/dev/disk/:/dev/disk:ro
  --publish=8081:8080
  --detach=true
  --name=cadvisor
  google/cadvisor:latest

2.2 配置Prometheus

scrape_configs:
  # 添加作业，自定义名称
  - job_name: 'docker'
    # 静态添加
    static_configs:
    # 指定监控实例
    - targets: ['192.168.21.55:8081']

2.3 重启prometheus容器

docker restart prometheus

2.4 Prometheus监控端查看是否介入

浏览器输入ip:9090查看Prometheus的targets状态，看看数据是否接入正常。

2.5 访问被监控端cAdvisor捕获的数据

http://192.168.0.50:8089/metrics

2.6 配置Grafana监控图表

推荐模板ID：893

三、通过mysql_exporter监控Mysql

使用Docker部署监控系统，Prometheus，Grafana，监控服务器信息及Mysql

51CTO：wfwf1990：使用prometheus的mysql exporter监控mysql

3.1 mysqld exporter方式监控Mysql

mysqld exporter的功能是收集mysql服务器的数据, 并向外提供api接口, 用于prometheus主要获取数据。

在被监控端mysql服务器上创建账号用于mysql exporter收集使用

GRANT REPLICATION CLIENT, PROCESS ON  *.*  to 'exporter'@'%' identified by '123456';
GRANT SELECT ON performance_schema.* TO 'exporter'@'%';
flush privileges;

在被监控端mysql服务器上安装mysql exporter。

docker run -d  --restart=always  --name mysqld-exporter -p 9104:9104   -e DATA_SOURCE_NAME="user:password@(hostname:port)/"   prom/mysqld-exporter

docker run -d  --restart=always  --name mysqld-exporter -p 9104:9104   -e DATA_SOURCE_NAME="exporter:123456@(192.168.1.82:3306)/"   prom/mysqld-exporter

要查看容器是否报错, 主要是验证exporter与mysql服务端之间正常连接和获取数据;
docker logs -f mysqld-exporter  看有没有报错

3.2 配置alertmanager报警,添加prometheus配置

alerting:
  alertmanagers:
  - scheme: http
    static_configs:
    - targets:
      - "10.100.110.171:9093"
rule_files:
  - /opt/prometheus/rules/mysql*.rules

制定mysql报警规则：

groups:
- name: MySQLStatsAlert
  rules:
  - alert: MySQL is down
    expr: mysql_up == 0
    for: 1m
    labels:
      severity: critical
    annotations:
      summary: "Instance {{ $labels.instance }} MySQL is down"
      description: "MySQL database is down. This requires immediate action!"
  - alert: open files high
    expr: mysql_global_status_innodb_num_open_files > (mysql_global_variables_open_files_limit) * 0.75
    for: 1m
    labels:
      severity: warning
    annotations:
      summary: "Instance {{ $labels.instance }} open files high"
      description: "Open files is high. Please consider increasing open_files_limit."
  - alert: Read buffer size is bigger than max. allowed packet size
    expr: mysql_global_variables_read_buffer_size > mysql_global_variables_slave_max_allowed_packet
    for: 1m
    labels:
      severity: warning
    annotations:
      summary: "Instance {{ $labels.instance }} Read buffer size is bigger than max. allowed packet size"
      description: "Read buffer size (read_buffer_size) is bigger than max. allowed packet size (max_allowed_packet).This can break your replication."
  - alert: Sort buffer possibly missconfigured
    expr: mysql_global_variables_innodb_sort_buffer_size <256*1024 or mysql_global_variables_read_buffer_size > 4*1024*1024
    for: 1m
    labels:
      severity: warning
    annotations:
      summary: "Instance {{ $labels.instance }} Sort buffer possibly missconfigured"
      description: "Sort buffer size is either too big or too small. A good value for sort_buffer_size is between 256k and 4M."
  - alert: Thread stack size is too small
    expr: mysql_global_variables_thread_stack <196608
    for: 1m
    labels:
      severity: warning
    annotations:
      summary: "Instance {{ $labels.instance }} Thread stack size is too small"
      description: "Thread stack size is too small. This can cause problems when you use Stored Language constructs for example. A typical is 256k for thread_stack_size."
  - alert: Used more than 80% of max connections limited
    expr: mysql_global_status_max_used_connections > mysql_global_variables_max_connections * 0.8
    for: 1m
    labels:
      severity: warning
    annotations:
      summary: "Instance {{ $labels.instance }} Used more than 80% of max connections limited"
      description: "Used more than 80% of max connections limited"
  - alert: InnoDB Force Recovery is enabled
    expr: mysql_global_variables_innodb_force_recovery != 0
    for: 1m
    labels:
      severity: warning
    annotations:
      summary: "Instance {{ $labels.instance }} InnoDB Force Recovery is enabled"
      description: "InnoDB Force Recovery is enabled. This mode should be used for data recovery purposes only. It prohibits writing to the data."
  - alert: InnoDB Log File size is too small
    expr: mysql_global_variables_innodb_log_file_size < 16777216
    for: 1m
    labels:
      severity: warning
    annotations:
      summary: "Instance {{ $labels.instance }} InnoDB Log File size is too small"
      description: "The InnoDB Log File size is possibly too small. Choosing a small InnoDB Log File size can have significant performance impacts."
  - alert: InnoDB Flush Log at Transaction Commit
    expr: mysql_global_variables_innodb_flush_log_at_trx_commit != 1
    for: 1m
    labels:
      severity: warning
    annotations:
      summary: "Instance {{ $labels.instance }} InnoDB Flush Log at Transaction Commit"
      description: "InnoDB Flush Log at Transaction Commit is set to a values != 1. This can lead to a loss of commited transactions in case of a power failure."
  - alert: Table definition cache too small
    expr: mysql_global_status_open_table_definitions > mysql_global_variables_table_definition_cache
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} Table definition cache too small"
      description: "Your Table Definition Cache is possibly too small. If it is much too small this can have significant performance impacts!"
  - alert: Table open cache too small
    expr: mysql_global_status_open_tables >mysql_global_variables_table_open_cache * 99/100
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} Table open cache too small"
      description: "Your Table Open Cache is possibly too small (old name Table Cache). If it is much too small this can have significant performance impacts!"
  - alert: Thread stack size is possibly too small
    expr: mysql_global_variables_thread_stack < 262144
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} Thread stack size is possibly too small"
      description: "Thread stack size is possibly too small. This can cause problems when you use Stored Language constructs for example. A typical is 256k for thread_stack_size."
  - alert: InnoDB Buffer Pool Instances is too small
    expr: mysql_global_variables_innodb_buffer_pool_instances == 1
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} InnoDB Buffer Pool Instances is too small"
      description: "If you are using MySQL 5.5 and higher you should use several InnoDB Buffer Pool Instances for performance reasons. Some rules are: InnoDB Buffer Pool Instance should be at least 1 Gbyte in size. InnoDB Buffer Pool Instances you can set equal to the number of cores of your machine."
  - alert: InnoDB Plugin is enabled
    expr: mysql_global_variables_ignore_builtin_innodb == 1
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} InnoDB Plugin is enabled"
      description: "InnoDB Plugin is enabled"
  - alert: Binary Log is disabled
    expr: mysql_global_variables_log_bin != 1
    for: 1m
    labels:
      severity: warning
    annotations:
      summary: "Instance {{ $labels.instance }} Binary Log is disabled"
      description: "Binary Log is disabled. This prohibits you to do Point in Time Recovery (PiTR)."
  - alert: Binlog Cache size too small
    expr: mysql_global_variables_binlog_cache_size < 1048576
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} Binlog Cache size too small"
      description: "Binlog Cache size is possibly to small. A value of 1 Mbyte or higher is OK."
  - alert: Binlog Statement Cache size too small
    expr: mysql_global_variables_binlog_stmt_cache_size <1048576 and mysql_global_variables_binlog_stmt_cache_size > 0
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} Binlog Statement Cache size too small"
      description: "Binlog Statement Cache size is possibly to small. A value of 1 Mbyte or higher is typically OK."
  - alert: Binlog Transaction Cache size too small
    expr: mysql_global_variables_binlog_cache_size  <1048576
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} Binlog Transaction Cache size too small"
      description: "Binlog Transaction Cache size is possibly to small. A value of 1 Mbyte or higher is typically OK."
  - alert: Sync Binlog is enabled
    expr: mysql_global_variables_sync_binlog == 1
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} Sync Binlog is enabled"
      description: "Sync Binlog is enabled. This leads to higher data security but on the cost of write performance."
  - alert: IO thread stopped
    expr: mysql_slave_status_slave_io_running != 1
    for: 1m
    labels:
      severity: critical
    annotations:
      summary: "Instance {{ $labels.instance }} IO thread stopped"
      description: "IO thread has stopped. This is usually because it cannot connect to the Master any more."
  - alert: SQL thread stopped
    expr: mysql_slave_status_slave_sql_running == 0
    for: 1m
    labels:
      severity: critical
    annotations:
      summary: "Instance {{ $labels.instance }} SQL thread stopped"
      description: "SQL thread has stopped. This is usually because it cannot apply a SQL statement received from the master."
  - alert: SQL thread stopped
    expr: mysql_slave_status_slave_sql_running != 1
    for: 1m
    labels:
      severity: critical
    annotations:
      summary: "Instance {{ $labels.instance }} Sync Binlog is enabled"
      description: "SQL thread has stopped. This is usually because it cannot apply a SQL statement received from the master."
  - alert: Slave lagging behind Master
    expr: rate(mysql_slave_status_seconds_behind_master[1m]) >30
    for: 1m
    labels:
      severity: warning
    annotations:
      summary: "Instance {{ $labels.instance }} Slave lagging behind Master"
      description: "Slave is lagging behind Master. Please check if Slave threads are running and if there are some performance issues!"
  - alert: Slave is NOT read only(Please ignore this warning indicator.)
    expr: mysql_global_variables_read_only != 0
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} Slave is NOT read only"
      description: "Slave is NOT set to read only. You can accidentally manipulate data on the slave and get inconsistencies..."

四、通过node_exporter监控服务器信息

Grafana+Prometheus通过node_exporter监控Linux服务器信息

五、Prometheus监控JVM

简书：袁先生的教程：Prometheus监控JVM
使用Prometheus+Grafana监控JVM
