RabbitMQ ——与Spring集成及exchange的direct、topic方式实现和简单队列实现

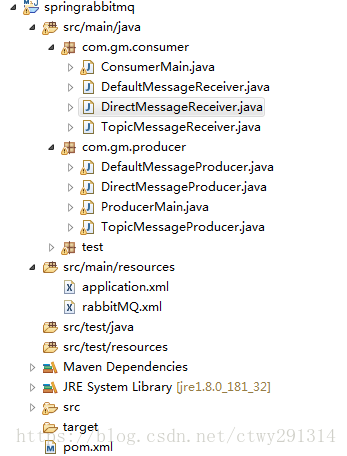

程序整体结构

Maven依赖

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.test</groupId>
	<artifactId>springrabbitmq</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<!-- log4j日志文件管理包版本 -->
		<slf4j.version>1.7.7</slf4j.version>
		<log4j.version>1.2.17</log4j.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>3.2.8.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>3.2.8.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>3.2.8.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context-support</artifactId>
			<version>3.2.8.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aop</artifactId>
			<version>3.2.8.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aspects</artifactId>
			<version>3.2.8.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-tx</artifactId>
			<version>3.2.8.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>3.2.8.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>3.2.8.RELEASE</version>
		</dependency>

		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.9</version>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-test</artifactId>
			<version> 3.2.8.RELEASE  </version>
			<scope>provided</scope>
		</dependency>

		<!--rabbitmq依赖 -->
		<dependency>
			<groupId>org.springframework.amqp</groupId>
			<artifactId>spring-rabbit</artifactId>
			<version>1.3.5.RELEASE</version>
		</dependency>
		<!-- log start -->
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>${log4j.version}</version>
		</dependency>
		<!-- 格式化对象，方便输出日志 -->
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>fastjson</artifactId>
			<version>1.1.41</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${slf4j.version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>${slf4j.version}</version>
		</dependency>
		<!-- log end -->
	</dependencies>
</project>

application.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
    http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd">

    <import resource="classpath*:rabbitMQ.xml" />

    <!-- 扫描指定package下所有带有如@controller,@services,@resource,@ods并把所注释的注册为Spring Beans -->
    <context:component-scan base-package="com.gm.consumer, com.gm.producer" />

    <!-- 激活annotation功能 -->
    <context:annotation-config />
    <!-- 激活annotation功能 -->
    <context:spring-configured />

</beans>

rabbitMQ.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:rabbit="http://www.springframework.org/schema/rabbit"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
     http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
     http://www.springframework.org/schema/rabbit
     http://www.springframework.org/schema/rabbit/spring-rabbit-1.2.xsd">

	<!-- RabbitMQ公共配置部分 start -->

	<!--配置connection-factory，指定连接rabbit server参数 -->
	<rabbit:connection-factory id="connectionFactory"
		virtual-host="/" username="admin" password="123456" host="127.0.0.1"
		port="5672" />

	<!--通过指定下面的admin信息，当前producer中的exchange和queue会在rabbitmq服务器上自动生成 -->
	<rabbit:admin id="connectAdmin" connection-factory="connectionFactory" />

	<!-- RabbitMQ公共配置部分 end -->

	<!-- ~~~~~~~~~~~~~~~~~~~~~华丽的分割线~~~~~~~~~~~~~~~~~~~~~~~~~~ -->

	<!-- 定义 direct方式的exchange、队列、消息收发 start -->

	<!--定义queue -->
	<rabbit:queue name="direct_queue_test" durable="true"
		auto-delete="false" exclusive="false" declared-by="connectAdmin" />

	<!-- 定义direct exchange，绑定direct_queue_test -->
	<rabbit:direct-exchange name="exchange_direct"
		durable="true" auto-delete="false" declared-by="connectAdmin">
		<rabbit:bindings>
			<rabbit:binding queue="direct_queue_test" key="direct_queue_key"></rabbit:binding>
		</rabbit:bindings>
	</rabbit:direct-exchange>

	<!--定义rabbit template用于数据的接收和发送 -->
	<rabbit:template id="directAmqpTemplate"
		connection-factory="connectionFactory" exchange="exchange_direct" />

	<!-- 消息接收者 -->
	<bean id="directMessageReceiver" class="com.gm.consumer.DirectMessageReceiver"></bean>

	<!-- queue litener 观察 监听模式 当有消息到达时会通知监听在对应的队列上的监听对象 -->
	<rabbit:listener-container
		connection-factory="connectionFactory">
		<rabbit:listener queues="direct_queue_test" ref="directMessageReceiver" />
	</rabbit:listener-container>

	<!-- 定义 direct方式的exchange、队列、消息收发 end -->


	<!-- ~~~~~~~~~~~~~~~~~~~~~华丽的分割线~~~~~~~~~~~~~~~~~~~~~~~~~~ -->

	<!-- 定义 topic方式的exchange、队列、消息收发 start -->

	<!--定义queue -->
	<rabbit:queue name="topic_queue_test" durable="true"
		auto-delete="false" exclusive="false" declared-by="connectAdmin" />

	<!--定义topic类型exchange，绑定direct_queue_test -->
	<rabbit:topic-exchange name="exchange_topic">
		<rabbit:bindings>
			<rabbit:binding queue="topic_queue_test" pattern="log.#" />
		</rabbit:bindings>
	</rabbit:topic-exchange>

	<!--定义rabbit template用于数据的接收和发送 -->
	<rabbit:template id="topicAmqpTemplate"
		connection-factory="connectionFactory" exchange="exchange_topic" />

	<!-- 消息接收者 -->
	<bean id="topicMessageReceiver" class="com.gm.consumer.TopicMessageReceiver"></bean>

	<!-- queue litener 观察 监听模式 当有消息到达时会通知监听在对应的队列上的监听对象 -->
	<rabbit:listener-container
		connection-factory="connectionFactory">
		<rabbit:listener queues="topic_queue_test" ref="topicMessageReceiver" />
	</rabbit:listener-container>

	<!-- 定义 topic方式的exchange、队列、消息收发 end -->


	<!-- ~~~~~~~~~~~~~~~~~~~~~华丽的分割线~~~~~~~~~~~~~~~~~~~~~~~~~~ -->


	<!-- 创建rabbitTemplate 消息模板类 -->
	<bean id="rabbitTemplate" class="org.springframework.amqp.rabbit.core.RabbitTemplate">
		<constructor-arg ref="connectionFactory"></constructor-arg>
	</bean>

	<rabbit:queue name="default_queue" durable="true"
		auto-delete="false" exclusive="false" declared-by="connectAdmin" />

	<!-- 消息接收者 -->
	<bean id="defaultMessageReceiver" class="com.gm.consumer.DefaultMessageReceiver"></bean>

	<!-- queue litener 观察 监听模式 当有消息到达时会通知监听在对应的队列上的监听对象 -->
	<rabbit:listener-container
		connection-factory="connectionFactory">
		<rabbit:listener queues="default_queue" ref="defaultMessageReceiver" />
	</rabbit:listener-container>
</beans>

exchange的direct消费者

DirectMessageReceiver.java

package com.gm.consumer;

import java.io.UnsupportedEncodingException;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageListener;

public class DirectMessageReceiver implements MessageListener {
	private Logger logger = LoggerFactory.getLogger(DirectMessageReceiver.class);

	public void onMessage(Message message) {

		logger.info("consumer receive message------->:{}", message);
		String body;
		try {
			body = new String(message.getBody(), "UTF-8");
			System.out.println("consumer receive message------->"+body);
		} catch (UnsupportedEncodingException e) {
			e.printStackTrace();
		}

	}

}

exchange的topic消费者

TopicMessageReceiver.java

package com.gm.consumer;

import java.io.UnsupportedEncodingException;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageListener;
import org.springframework.stereotype.Component;

@Component
public class TopicMessageReceiver implements MessageListener {
	private Logger logger = LoggerFactory.getLogger(TopicMessageReceiver.class);

	public void onMessage(Message message) {

		logger.info("consumer receive message------->:{}", message);
		String body;
		try {
			body = new String(message.getBody(), "UTF-8");
			System.out.println("consumer receive message------->" + body);
		} catch (UnsupportedEncodingException e) {
			e.printStackTrace();
		}

	}

}

简单队列消费者

DefaultMessageReceiver.java

package com.gm.consumer;

import java.io.UnsupportedEncodingException;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageListener;

public class DefaultMessageReceiver implements MessageListener {
	private Logger logger = LoggerFactory.getLogger(DefaultMessageReceiver.class);

	public void onMessage(Message message) {

		logger.info("consumer receive message------->:{}", message);
		String body;
		try {
			body = new String(message.getBody(), "UTF-8");
			System.out.println("consumer receive message------->"+body);
		} catch (UnsupportedEncodingException e) {
			e.printStackTrace();
		}

	}

}

exchange的direct生产者

DirectMessageProducer.java

package com.gm.producer;

import java.io.IOException;

import javax.annotation.Resource;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Service;

@Service
public class DirectMessageProducer {
	private Logger logger = LoggerFactory.getLogger(DirectMessageProducer.class);

	@Resource(name = "directAmqpTemplate")
	private AmqpTemplate directAmqpTemplate;

	public void sendMessage(Object message) throws IOException {
		logger.info("to send message:{}", message);
		directAmqpTemplate.convertAndSend("direct_queue_key", message);
	}
}

exchange的topic生产者

TopicMessageProducer.java

package com.gm.producer;

import java.io.IOException;

import javax.annotation.Resource;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Service;

@Service
public class TopicMessageProducer {
	private Logger logger = LoggerFactory.getLogger(TopicMessageProducer.class);

	@Resource(name = "topicAmqpTemplate")
	private AmqpTemplate topicAmqpTemplate;

	public void sendMessage(Object message) throws IOException {
		logger.info("to send message:{}", message);
		topicAmqpTemplate.convertAndSend("log.info", message);
	}
}

简单队列生产者

DefaultMessageProducer.java

package com.gm.producer;

import java.io.IOException;

import javax.annotation.Resource;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Service;

@Service
public class DefaultMessageProducer {
	private Logger logger = LoggerFactory.getLogger(DefaultMessageProducer.class);

	@Resource(name = "rabbitTemplate")
	RabbitTemplate rabbitTemplate;

	public void sendMessage(Object message) throws IOException {
		logger.info("to send message:{}", message);
		rabbitTemplate.convertAndSend("default_queue", message);
	}
}

单元测试

ProducerMain.java

package com.gm.producer;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

@RunWith(SpringJUnit4ClassRunner.class) // 使用junit4进行测试
@ContextConfiguration(locations = { "classpath:application.xml" }) // 加载配置文件
public class ProducerMain {

	private Logger logger = LoggerFactory.getLogger(ProducerMain.class);

	@Autowired
	DirectMessageProducer directMessageProducer;

	@Autowired
	TopicMessageProducer topicMessageProducer;

	@Autowired
	DefaultMessageProducer defaultMessageProducer;

	@Test
	public void send_messages() throws Exception {
		directMessageProducer.sendMessage("我是directMessageProducer发出的消息");
		topicMessageProducer.sendMessage("我是topicMessageProducer发出的消息");
		defaultMessageProducer.sendMessage("我是defaultMessageProducer发出的消息");

		while(true) {

		}
	}
}

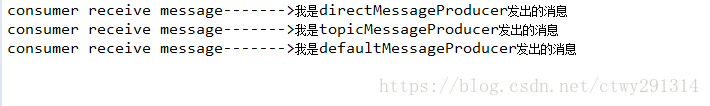

结果
