springboot与缓存

1.使用缓存减轻数据库的压力， 承受高的并发量

2.验证码三分钟有效， 把这些临时的数据放在缓存中

JSR-107

为了规定缓存的规范 ，javaee发布的jsr-107

Java Caching定义了5个核心接口，分别是CachingProvider, CacheManager, Cache, Entry和Expiry。
•CachingProvider（缓存提供者）： 定义了创建、配置、获取、管理和控制多个CacheManager。一个应用可以在运行期访问多个CachingProvider。
•CacheManager  ：定义了创建、配置、获取、管理和控制多个唯一命名的Cache，这些Cache存在于CacheManager的上下文中。一个CacheManager  ：仅被一个CachingProvider所拥有。
•Cache                 ：是一个类似Map的数据结构并临时存储以Key为索引的值。一个Cache仅被一个CacheManager所拥有。
•Entry                    ：是一个存储在Cache中的key-value对。
•Expiry                ：每一个存储在Cache中的条目有一个定义的有效期。一旦超过这个时间，条目为过期的状态。一旦过期，条目将不可访问、更新和删除。缓存有效期可以通过ExpiryPolicy设置。

用户使用缓存，可以通过cacheprovider 获取到cachemanager

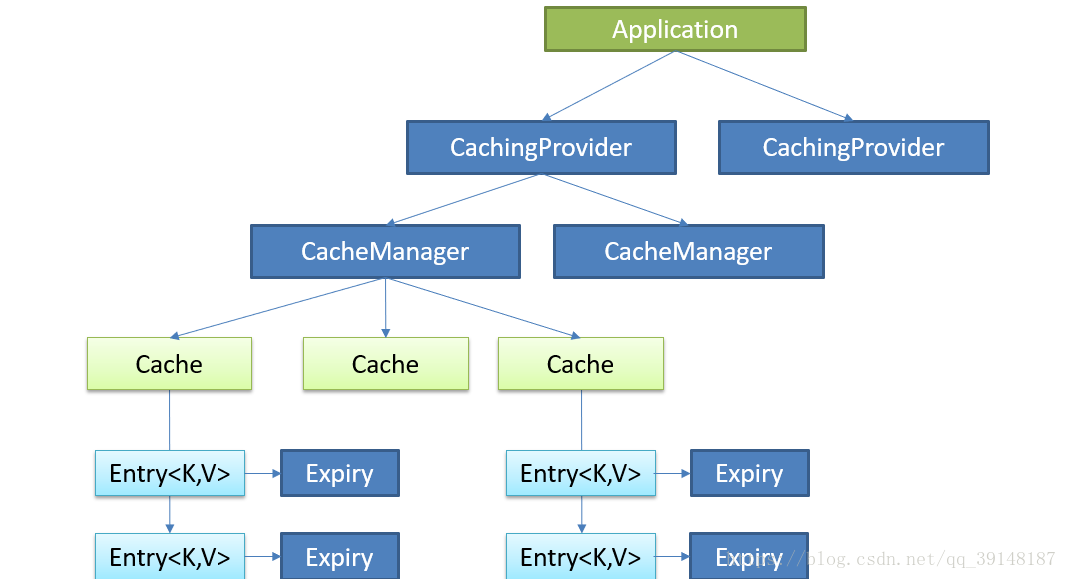

整个交互应该是这样的

spring 的缓存抽象

使用jsr107 开发难度还是挺大的，spring从3.1开始定义了Spring从3.1开始定义了org.springframework.cache.Cache和org.springframework.cache.CacheManager接口来统一不同的缓存技术；并支持使用JCache（JSR-107）注解简化我们开发；

•Cache接口为缓存的组件规范定义，包含缓存的各种操作集合；

•Cache接口下Spring提供了各种xxxCache的实现；如RedisCache，EhCacheCache , ConcurrentMapCache等；

•每次调用需要缓存功能的方法时，Spring会检查检查指定参数的指定的目标方法是否已经被调用过；如果有就直接从缓存中获取方法调用后的结果，如果没有就调用方法并缓存结果后返回给用户。下次调用直接从缓存中获取。

•使用Spring缓存抽象时我们需要关注以下两点；

1、确定方法需要被缓存以及他们的缓存策略

2、从缓存中读取之前缓存存储的数据

Cache	缓存接口，定义缓存操作。实现有：RedisCache、EhCacheCache、ConcurrentMapCache等
CacheManager	缓存管理器，管理各种缓存（Cache）组件
@Cacheable	主要针对方法配置，能够根据方法的请求参数对其结果进行缓存 （get）
@CacheEvict	清空缓存  （delete）
@CachePut	保证方法被调用，又希望结果被缓存。（update）
@EnableCaching	开启基于注解的缓存
keyGenerator	缓存数据时key生成策略

HelloWorld

我们写一个正常的没有缓存的程序， 也就是说每次请求查询一次数据库

Mapper

1.
   package com.zzq.springboot01cache.mapper;
2.

3.
   import com.zzq.springboot01cache.entity.Employee;
4.
   import org.apache.ibatis.annotations.*;
5.

6.
   @Mapper
7.
   public interface EmployeeMapper {
8.

9.
   @Select("SELECT * FROM employee WHERE id = #{id}")
10.
    public Employee getEmpById(Integer id);
11.

12.
    @Update("UPDATE employee SET lastName=#{lastName},email=#{email},gender=#{gender},d_id=#{dId} WHERE id=#{id}")
13.
    public void updateEmp(Employee employee);
14.

15.
    @Delete("DELETE FROM employee WHERE id=#{id}")
16.
    public void deleteEmpById(Integer id);
17.

18.
    @Insert("INSERT INTO employee(lastName,email,gender,d_id) VALUES(#{lastName},#{email},#{gender},#{dId})")
19.
    public void insertEmployee(Employee employee);
20.

21.
    @Select("SELECT * FROM employee WHERE lastName = #{lastName}")
22.
    Employee getEmpByLastName(String lastName);
23.
    }

Service

1.
   public Employee getEmployeeById(Integer id){
2.
   System.out.println("查询员工"+id);
3.
   return employeeMapper.getEmpById(id);
4.
   }

Controller

1.
   @GetMapping("/emp/{id}")
2.
   public Employee getEmpById(@PathVariable("id") Integer id){
3.
   return employeeService.getEmployeeById(id);
4.
   }

这样的话我们每次请求都会查询一次数据库，在service 中写的打印语句也就会被打印，下面我们使用缓存

1.在springbootapplication启动类上加上开启缓存的注解

    @EnableCaching

1.
   @EnableCaching
2.
   @MapperScan(basePackages = {"com.zzq.springboot01cache.mapper"})
3.
   @SpringBootApplication
4.
   public class Springboot01CacheApplication {
5.

6.
   public static void main(String[] args) {
7.
   SpringApplication.run(Springboot01CacheApplication.class, args);
8.
   }
9.
   }

2.在我们需要缓存的方法上加上对应的注解， 具体加什么注解， 看上面的截图

1.
   @Cacheable(cacheNames = "emp")
2.
   public Employee getEmployeeById(Integer id){
3.
   System.out.println("查询员工"+id);
4.
   return employeeMapper.getEmpById(id);
5.
   }

这个时候就会发现，只会打印输出语句一次，

一个springboot 的缓存简单的缓存机制就完成了

springboot 缓存原理

凡是springboot 的东西我们就看自动配置，xxxautoconfigruaction

CacheAutoConfiguration

上面标注了这么多东西

1.
   @Configuration
2.
   @ConditionalOnClass(CacheManager.class)
3.
   @ConditionalOnBean(CacheAspectSupport.class)
4.
   @ConditionalOnMissingBean(value = CacheManager.class, name = "cacheResolver")
5.
   @EnableConfigurationProperties(CacheProperties.class)
6.
   @AutoConfigureBefore(HibernateJpaAutoConfiguration.class)
7.
   @AutoConfigureAfter({ CouchbaseAutoConfiguration.class, HazelcastAutoConfiguration.class,
8.
   RedisAutoConfiguration.class })
9.
   @Import(CacheConfigurationImportSelector.class)

@configuration  标注配置类

@ConditionalOnClass  当容器中有CacheManager 的时候

@ConditionalOnBean  当容器中有CacheAspectSupport这个组件的时候

@ConditionalOnMissingBean 容器中没有名字是cacheResolver 的CacheManager 这个类型的类的时候

@EnacbleConfigurationProperties  自动装配注解，

@autoConfigureBefore  在这个类开始只配置之前发生的配置类

@autoConfigureAfter 在这个类配置之后发生的事情

@Import 导入CacheConfigurationImportSlector 这个类

CacheConfigurationImportSlector

1.
   */
2.
   static class CacheConfigurationImportSelector implements ImportSelector {
3.

4.
   @Override
5.
   public String[] selectImports(AnnotationMetadata importingClassMetadata) {
6.
   CacheType[] types = CacheType.values();
7.
   String[] imports = new String[types.length];
8.
   for (int i = 0; i < types.length; i++) {
9.
   imports[i] = CacheConfigurations.getConfigurationClass(types[i]);
10.
    }
11.
    return imports;
12.
    }
13.

14.
    }

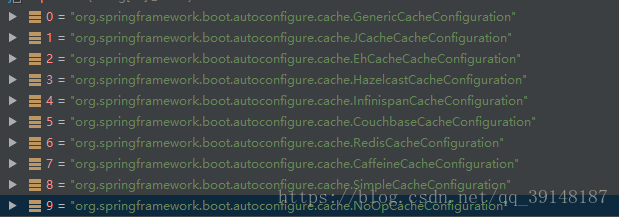

看源码这是一个内部类最终返回了所有的导入的组件 我们debug 看下

org.springframework.boot.autoconfigure.cache.GenericCacheConfiguration

org.springframework.boot.autoconfigure.cache.JCacheCacheConfiguration

org.springframework.boot.autoconfigure.cache.EhCacheCacheConfiguration

org.springframework.boot.autoconfigure.cache.HazelcastCacheConfiguration

org.springframework.boot.autoconfigure.cache.InfinispanCacheConfiguration

org.springframework.boot.autoconfigure.cache.CouchbaseCacheConfiguration

org.springframework.boot.autoconfigure.cache.RedisCacheConfiguration

org.springframework.boot.autoconfigure.cache.CaffeineCacheConfiguration

org.springframework.boot.autoconfigure.cache.SimpleCacheConfiguration

org.springframework.boot.autoconfigure.cache.NoOpCacheConfiguration

导入了10个CacheConfiguration 导入10 中缓存的配置，说明springboot 会自动的配置这10 中缓存

下面我们就看下他默认使用的是什么缓存

吧springboot 调成debug 模式，这样就可以显示在启动的时候自动配置类的情况

我们看日志

1.
   ============================
2.
   CONDITIONS EVALUATION REPORT
3.
   ============================
4.

5.
   积极的匹配
6.
   Positive matches:
7.
   -----------------
8.

9.
   CacheAutoConfiguration matched:
10.
    - @ConditionalOnClass found required class 'org.springframework.cache.CacheManager'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
11.
    - @ConditionalOnBean (types: org.springframework.cache.interceptor.CacheAspectSupport; SearchStrategy: all) found bean 'cacheInterceptor'; @ConditionalOnMissingBean (names: cacheResolver; types: org.springframework.cache.CacheManager; SearchStrategy: all) did not find any beans (OnBeanCondition)
12.

13.
    CacheAutoConfiguration#cacheManagerCustomizers matched:
14.
    - @ConditionalOnMissingBean (types: org.springframework.boot.autoconfigure.cache.CacheManagerCustomizers; SearchStrategy: all) did not find any beans (OnBeanCondition)
15.

16.
    CodecsAutoConfiguration matched:
17.
    - @ConditionalOnClass found required class 'org.springframework.http.codec.CodecConfigurer'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
18.

19.
    CodecsAutoConfiguration.JacksonCodecConfiguration matched:
20.
    - @ConditionalOnClass found required class 'com.fasterxml.jackson.databind.ObjectMapper'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
21.

22.
    CodecsAutoConfiguration.JacksonCodecConfiguration#jacksonCodecCustomizer matched:
23.
    - @ConditionalOnBean (types: com.fasterxml.jackson.databind.ObjectMapper; SearchStrategy: all) found bean 'jacksonObjectMapper' (OnBeanCondition)
24.

25.
    DataSourceAutoConfiguration matched:
26.
    - @ConditionalOnClass found required classes 'javax.sql.DataSource', 'org.springframework.jdbc.datasource.embedded.EmbeddedDatabaseType'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
27.

28.
    DataSourceAutoConfiguration.PooledDataSourceConfiguration matched:
29.
    - AnyNestedCondition 1 matched 1 did not; NestedCondition on DataSourceAutoConfiguration.PooledDataSourceCondition.PooledDataSourceAvailable PooledDataSource found supported DataSource; NestedCondition on DataSourceAutoConfiguration.PooledDataSourceCondition.ExplicitType @ConditionalOnProperty (spring.datasource.type) did not find property 'type' (DataSourceAutoConfiguration.PooledDataSourceCondition)
30.
    - @ConditionalOnMissingBean (types: javax.sql.DataSource,javax.sql.XADataSource; SearchStrategy: all) did not find any beans (OnBeanCondition)
31.

32.
    DataSourceConfiguration.Hikari matched:
33.
    - @ConditionalOnClass found required class 'com.zaxxer.hikari.HikariDataSource'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
34.
    - @ConditionalOnProperty (spring.datasource.type=com.zaxxer.hikari.HikariDataSource) matched (OnPropertyCondition)
35.
    - @ConditionalOnMissingBean (types: javax.sql.DataSource; SearchStrategy: all) did not find any beans (OnBeanCondition)
36.

37.
    DataSourceJmxConfiguration matched:
38.
    - @ConditionalOnProperty (spring.jmx.enabled=true) matched (OnPropertyCondition)
39.

40.
    DataSourceJmxConfiguration.Hikari matched:
41.
    - @ConditionalOnClass found required class 'com.zaxxer.hikari.HikariDataSource'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
42.
    - @ConditionalOnSingleCandidate (types: javax.sql.DataSource; SearchStrategy: all) found a primary bean from beans 'dataSource' (OnBeanCondition)
43.

44.
    DataSourcePoolMetadataProvidersConfiguration.HikariPoolDataSourceMetadataProviderConfiguration matched:
45.
    - @ConditionalOnClass found required class 'com.zaxxer.hikari.HikariDataSource'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
46.

47.
    DataSourceTransactionManagerAutoConfiguration matched:
48.
    - @ConditionalOnClass found required classes 'org.springframework.jdbc.core.JdbcTemplate', 'org.springframework.transaction.PlatformTransactionManager'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
49.

50.
    DataSourceTransactionManagerAutoConfiguration.DataSourceTransactionManagerConfiguration matched:
51.
    - @ConditionalOnSingleCandidate (types: javax.sql.DataSource; SearchStrategy: all) found a primary bean from beans 'dataSource' (OnBeanCondition)
52.

53.
    DataSourceTransactionManagerAutoConfiguration.DataSourceTransactionManagerConfiguration#transactionManager matched:
54.
    - @ConditionalOnMissingBean (types: org.springframework.transaction.PlatformTransactionManager; SearchStrategy: all) did not find any beans (OnBeanCondition)
55.

56.
    DevToolsDataSourceAutoConfiguration matched:
57.
    - DevTools DataSource Condition found auto-configured DataSource (DevToolsDataSourceAutoConfiguration.DevToolsDataSourceCondition)
58.

59.
    DispatcherServletAutoConfiguration matched:
60.
    - @ConditionalOnClass found required class 'org.springframework.web.servlet.DispatcherServlet'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
61.
    - found ConfigurableWebEnvironment (OnWebApplicationCondition)
62.

63.
    DispatcherServletAutoConfiguration.DispatcherServletConfiguration matched:
64.
    - @ConditionalOnClass found required class 'javax.servlet.ServletRegistration'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
65.
    - Default DispatcherServlet did not find dispatcher servlet beans (DispatcherServletAutoConfiguration.DefaultDispatcherServletCondition)
66.

67.
    DispatcherServletAutoConfiguration.DispatcherServletRegistrationConfiguration matched:
68.
    - @ConditionalOnClass found required class 'javax.servlet.ServletRegistration'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
69.
    - DispatcherServlet Registration did not find servlet registration bean (DispatcherServletAutoConfiguration.DispatcherServletRegistrationCondition)
70.

71.
    DispatcherServletAutoConfiguration.DispatcherServletRegistrationConfiguration#dispatcherServletRegistration matched:
72.
    - @ConditionalOnBean (names: dispatcherServlet; types: org.springframework.web.servlet.DispatcherServlet; SearchStrategy: all) found bean 'dispatcherServlet' (OnBeanCondition)
73.

74.
    EmbeddedWebServerFactoryCustomizerAutoConfiguration.TomcatWebServerFactoryCustomizerConfiguration matched:
75.
    - @ConditionalOnClass found required classes 'org.apache.catalina.startup.Tomcat', 'org.apache.coyote.UpgradeProtocol'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
76.

77.
    ErrorMvcAutoConfiguration matched:
78.
    - @ConditionalOnClass found required classes 'javax.servlet.Servlet', 'org.springframework.web.servlet.DispatcherServlet'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
79.
    - found ConfigurableWebEnvironment (OnWebApplicationCondition)
80.

81.
    ErrorMvcAutoConfiguration#basicErrorController matched:
82.
    - @ConditionalOnMissingBean (types: org.springframework.boot.web.servlet.error.ErrorController; SearchStrategy: current) did not find any beans (OnBeanCondition)
83.

84.
    ErrorMvcAutoConfiguration#errorAttributes matched:
85.
    - @ConditionalOnMissingBean (types: org.springframework.boot.web.servlet.error.ErrorAttributes; SearchStrategy: current) did not find any beans (OnBeanCondition)
86.

87.
    ErrorMvcAutoConfiguration.DefaultErrorViewResolverConfiguration#conventionErrorViewResolver matched:
88.
    - @ConditionalOnBean (types: org.springframework.web.servlet.DispatcherServlet; SearchStrategy: all) found bean 'dispatcherServlet'; @ConditionalOnMissingBean (types: org.springframework.boot.autoconfigure.web.servlet.error.DefaultErrorViewResolver; SearchStrategy: all) did not find any beans (OnBeanCondition)
89.

90.
    ErrorMvcAutoConfiguration.WhitelabelErrorViewConfiguration matched:
91.
    - @ConditionalOnProperty (server.error.whitelabel.enabled) matched (OnPropertyCondition)
92.
    - ErrorTemplate Missing did not find error template view (ErrorMvcAutoConfiguration.ErrorTemplateMissingCondition)
93.

94.
    ErrorMvcAutoConfiguration.WhitelabelErrorViewConfiguration#beanNameViewResolver matched:
95.
    - @ConditionalOnMissingBean (types: org.springframework.web.servlet.view.BeanNameViewResolver; SearchStrategy: all) did not find any beans (OnBeanCondition)
96.

97.
    ErrorMvcAutoConfiguration.WhitelabelErrorViewConfiguration#defaultErrorView matched:
98.
    - @ConditionalOnMissingBean (names: error; SearchStrategy: all) did not find any beans (OnBeanCondition)
99.

100.
     HttpEncodingAutoConfiguration matched:
101.
     - @ConditionalOnClass found required class 'org.springframework.web.filter.CharacterEncodingFilter'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
102.
     - found ConfigurableWebEnvironment (OnWebApplicationCondition)
103.
     - @ConditionalOnProperty (spring.http.encoding.enabled) matched (OnPropertyCondition)
104.

105.
     HttpEncodingAutoConfiguration#characterEncodingFilter matched:
106.
     - @ConditionalOnMissingBean (types: org.springframework.web.filter.CharacterEncodingFilter; SearchStrategy: all) did not find any beans (OnBeanCondition)
107.

108.
     HttpMessageConvertersAutoConfiguration matched:
109.
     - @ConditionalOnClass found required class 'org.springframework.http.converter.HttpMessageConverter'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
110.

111.
     HttpMessageConvertersAutoConfiguration#messageConverters matched:
112.
     - @ConditionalOnMissingBean (types: org.springframework.boot.autoconfigure.http.HttpMessageConverters; SearchStrategy: all) did not find any beans (OnBeanCondition)
113.

114.
     HttpMessageConvertersAutoConfiguration.StringHttpMessageConverterConfiguration matched:
115.
     - @ConditionalOnClass found required class 'org.springframework.http.converter.StringHttpMessageConverter'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
116.

117.
     HttpMessageConvertersAutoConfiguration.StringHttpMessageConverterConfiguration#stringHttpMessageConverter matched:
118.
     - @ConditionalOnMissingBean (types: org.springframework.http.converter.StringHttpMessageConverter; SearchStrategy: all) did not find any beans (OnBeanCondition)
119.

120.
     JacksonAutoConfiguration matched:
121.
     - @ConditionalOnClass found required class 'com.fasterxml.jackson.databind.ObjectMapper'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
122.

123.
     JacksonAutoConfiguration.Jackson2ObjectMapperBuilderCustomizerConfiguration matched:
124.
     - @ConditionalOnClass found required class 'org.springframework.http.converter.json.Jackson2ObjectMapperBuilder'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
125.

126.
     JacksonAutoConfiguration.JacksonObjectMapperBuilderConfiguration matched:
127.
     - @ConditionalOnClass found required class 'org.springframework.http.converter.json.Jackson2ObjectMapperBuilder'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
128.

129.
     JacksonAutoConfiguration.JacksonObjectMapperBuilderConfiguration#jacksonObjectMapperBuilder matched:
130.
     - @ConditionalOnMissingBean (types: org.springframework.http.converter.json.Jackson2ObjectMapperBuilder; SearchStrategy: all) did not find any beans (OnBeanCondition)
131.

132.
     JacksonAutoConfiguration.JacksonObjectMapperConfiguration matched:
133.
     - @ConditionalOnClass found required class 'org.springframework.http.converter.json.Jackson2ObjectMapperBuilder'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
134.

135.
     JacksonAutoConfiguration.JacksonObjectMapperConfiguration#jacksonObjectMapper matched:
136.
     - @ConditionalOnMissingBean (types: com.fasterxml.jackson.databind.ObjectMapper; SearchStrategy: all) did not find any beans (OnBeanCondition)
137.

138.
     JacksonAutoConfiguration.ParameterNamesModuleConfiguration matched:
139.
     - @ConditionalOnClass found required class 'com.fasterxml.jackson.module.paramnames.ParameterNamesModule'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
140.

141.
     JacksonAutoConfiguration.ParameterNamesModuleConfiguration#parameterNamesModule matched:
142.
     - @ConditionalOnMissingBean (types: com.fasterxml.jackson.module.paramnames.ParameterNamesModule; SearchStrategy: all) did not find any beans (OnBeanCondition)
143.

144.
     JacksonHttpMessageConvertersConfiguration.MappingJackson2HttpMessageConverterConfiguration matched:
145.
     - @ConditionalOnClass found required class 'com.fasterxml.jackson.databind.ObjectMapper'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
146.
     - @ConditionalOnProperty (spring.http.converters.preferred-json-mapper=jackson) matched (OnPropertyCondition)
147.
     - @ConditionalOnBean (types: com.fasterxml.jackson.databind.ObjectMapper; SearchStrategy: all) found bean 'jacksonObjectMapper' (OnBeanCondition)
148.

149.
     JacksonHttpMessageConvertersConfiguration.MappingJackson2HttpMessageConverterConfiguration#mappingJackson2HttpMessageConverter matched:
150.
     - @ConditionalOnMissingBean (types: org.springframework.http.converter.json.MappingJackson2HttpMessageConverter; SearchStrategy: all) did not find any beans (OnBeanCondition)
151.

152.
     JdbcTemplateAutoConfiguration matched:
153.
     - @ConditionalOnClass found required classes 'javax.sql.DataSource', 'org.springframework.jdbc.core.JdbcTemplate'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
154.
     - @ConditionalOnSingleCandidate (types: javax.sql.DataSource; SearchStrategy: all) found a primary bean from beans 'dataSource' (OnBeanCondition)
155.

156.
     JdbcTemplateAutoConfiguration.JdbcTemplateConfiguration#jdbcTemplate matched:
157.
     - @ConditionalOnMissingBean (types: org.springframework.jdbc.core.JdbcOperations; SearchStrategy: all) did not find any beans (OnBeanCondition)
158.

159.
     JdbcTemplateAutoConfiguration.NamedParameterJdbcTemplateConfiguration#namedParameterJdbcTemplate matched:
160.
     - @ConditionalOnSingleCandidate (types: org.springframework.jdbc.core.JdbcTemplate; SearchStrategy: all) found a primary bean from beans 'jdbcTemplate'; @ConditionalOnMissingBean (types: org.springframework.jdbc.core.namedparam.NamedParameterJdbcOperations; SearchStrategy: all) did not find any beans (OnBeanCondition)
161.

162.
     JmxAutoConfiguration matched:
163.
     - @ConditionalOnClass found required class 'org.springframework.jmx.export.MBeanExporter'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
164.
     - @ConditionalOnProperty (spring.jmx.enabled=true) matched (OnPropertyCondition)
165.

166.
     JmxAutoConfiguration#mbeanExporter matched:
167.
     - @ConditionalOnMissingBean (types: org.springframework.jmx.export.MBeanExporter; SearchStrategy: current) did not find any beans (OnBeanCondition)
168.

169.
     JmxAutoConfiguration#mbeanServer matched:
170.
     - @ConditionalOnMissingBean (types: javax.management.MBeanServer; SearchStrategy: all) did not find any beans (OnBeanCondition)
171.

172.
     JmxAutoConfiguration#objectNamingStrategy matched:
173.
     - @ConditionalOnMissingBean (types: org.springframework.jmx.export.naming.ObjectNamingStrategy; SearchStrategy: current) did not find any beans (OnBeanCondition)
174.

175.
     LocalDevToolsAutoConfiguration matched:
176.
     - Initialized Restarter Condition available and initialized (OnInitializedRestarterCondition)
177.

178.
     LocalDevToolsAutoConfiguration.LiveReloadConfiguration matched:
179.
     - @ConditionalOnProperty (spring.devtools.livereload.enabled) matched (OnPropertyCondition)
180.

181.
     LocalDevToolsAutoConfiguration.LiveReloadConfiguration#liveReloadServer matched:
182.
     - @ConditionalOnMissingBean (types: org.springframework.boot.devtools.livereload.LiveReloadServer; SearchStrategy: all) did not find any beans (OnBeanCondition)
183.

184.
     LocalDevToolsAutoConfiguration.RestartConfiguration matched:
185.
     - @ConditionalOnProperty (spring.devtools.restart.enabled) matched (OnPropertyCondition)
186.

187.
     LocalDevToolsAutoConfiguration.RestartConfiguration#classPathFileSystemWatcher matched:
188.
     - @ConditionalOnMissingBean (types: org.springframework.boot.devtools.classpath.ClassPathFileSystemWatcher; SearchStrategy: all) did not find any beans (OnBeanCondition)
189.

190.
     LocalDevToolsAutoConfiguration.RestartConfiguration#classPathRestartStrategy matched:
191.
     - @ConditionalOnMissingBean (types: org.springframework.boot.devtools.classpath.ClassPathRestartStrategy; SearchStrategy: all) did not find any beans (OnBeanCondition)
192.

193.
     LocalDevToolsAutoConfiguration.RestartConfiguration#conditionEvaluationDeltaLoggingListener matched:
194.
     - @ConditionalOnProperty (spring.devtools.restart.log-condition-evaluation-delta) matched (OnPropertyCondition)
195.

196.
     MultipartAutoConfiguration matched:
197.
     - @ConditionalOnClass found required classes 'javax.servlet.Servlet', 'org.springframework.web.multipart.support.StandardServletMultipartResolver', 'javax.servlet.MultipartConfigElement'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
198.
     - found ConfigurableWebEnvironment (OnWebApplicationCondition)
199.
     - @ConditionalOnProperty (spring.servlet.multipart.enabled) matched (OnPropertyCondition)
200.

201.
     MultipartAutoConfiguration#multipartConfigElement matched:
202.
     - @ConditionalOnMissingBean (types: javax.servlet.MultipartConfigElement,org.springframework.web.multipart.commons.CommonsMultipartResolver; SearchStrategy: all) did not find any beans (OnBeanCondition)
203.

204.
     MultipartAutoConfiguration#multipartResolver matched:
205.
     - @ConditionalOnMissingBean (types: org.springframework.web.multipart.MultipartResolver; SearchStrategy: all) did not find any beans (OnBeanCondition)
206.

207.
     MybatisAutoConfiguration matched:
208.
     - @ConditionalOnClass found required classes 'org.apache.ibatis.session.SqlSessionFactory', 'org.mybatis.spring.SqlSessionFactoryBean'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
209.
     - @ConditionalOnBean (types: javax.sql.DataSource; SearchStrategy: all) found bean 'dataSource' (OnBeanCondition)
210.

211.
     MybatisAutoConfiguration#sqlSessionFactory matched:
212.
     - @ConditionalOnMissingBean (types: org.apache.ibatis.session.SqlSessionFactory; SearchStrategy: all) did not find any beans (OnBeanCondition)
213.

214.
     MybatisAutoConfiguration#sqlSessionTemplate matched:
215.
     - @ConditionalOnMissingBean (types: org.mybatis.spring.SqlSessionTemplate; SearchStrategy: all) did not find any beans (OnBeanCondition)
216.

217.
     PersistenceExceptionTranslationAutoConfiguration matched:
218.
     - @ConditionalOnClass found required class 'org.springframework.dao.annotation.PersistenceExceptionTranslationPostProcessor'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
219.

220.
     PersistenceExceptionTranslationAutoConfiguration#persistenceExceptionTranslationPostProcessor matched:
221.
     - @ConditionalOnProperty (spring.dao.exceptiontranslation.enabled) matched (OnPropertyCondition)
222.
     - @ConditionalOnMissingBean (types: org.springframework.dao.annotation.PersistenceExceptionTranslationPostProcessor; SearchStrategy: all) did not find any beans (OnBeanCondition)
223.

224.
     PropertyPlaceholderAutoConfiguration#propertySourcesPlaceholderConfigurer matched:
225.
     - @ConditionalOnMissingBean (types: org.springframework.context.support.PropertySourcesPlaceholderConfigurer; SearchStrategy: current) did not find any beans (OnBeanCondition)
226.

227.
     RestTemplateAutoConfiguration matched:
228.
     - @ConditionalOnClass found required class 'org.springframework.web.client.RestTemplate'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
229.

230.
     RestTemplateAutoConfiguration#restTemplateBuilder matched:
231.
     - @ConditionalOnMissingBean (types: org.springframework.boot.web.client.RestTemplateBuilder; SearchStrategy: all) did not find any beans (OnBeanCondition)
232.

233.
     ServletWebServerFactoryAutoConfiguration matched:
234.
     - @ConditionalOnClass found required class 'javax.servlet.ServletRequest'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
235.
     - found ConfigurableWebEnvironment (OnWebApplicationCondition)
236.

237.
     ServletWebServerFactoryAutoConfiguration#tomcatServletWebServerFactoryCustomizer matched:
238.
     - @ConditionalOnClass found required class 'org.apache.catalina.startup.Tomcat'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
239.

240.
     ServletWebServerFactoryConfiguration.EmbeddedTomcat matched:
241.
     - @ConditionalOnClass found required classes 'javax.servlet.Servlet', 'org.apache.catalina.startup.Tomcat', 'org.apache.coyote.UpgradeProtocol'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
242.
     - @ConditionalOnMissingBean (types: org.springframework.boot.web.servlet.server.ServletWebServerFactory; SearchStrategy: current) did not find any beans (OnBeanCondition)
243.

244.
     SimpleCacheConfiguration matched:
245.
     - Cache org.springframework.boot.autoconfigure.cache.SimpleCacheConfiguration automatic cache type (CacheCondition)
246.
     - @ConditionalOnMissingBean (types: org.springframework.cache.CacheManager; SearchStrategy: all) did not find any beans (OnBeanCondition)
247.

248.
     SpringApplicationAdminJmxAutoConfiguration matched:
249.
     - @ConditionalOnProperty (spring.application.admin.enabled=true) matched (OnPropertyCondition)
250.

251.
     SpringApplicationAdminJmxAutoConfiguration#springApplicationAdminRegistrar matched:
252.
     - @ConditionalOnMissingBean (types: org.springframework.boot.admin.SpringApplicationAdminMXBeanRegistrar; SearchStrategy: all) did not find any beans (OnBeanCondition)
253.

254.
     TransactionAutoConfiguration matched:
255.
     - @ConditionalOnClass found required class 'org.springframework.transaction.PlatformTransactionManager'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
256.

257.
     TransactionAutoConfiguration#platformTransactionManagerCustomizers matched:
258.
     - @ConditionalOnMissingBean (types: org.springframework.boot.autoconfigure.transaction.TransactionManagerCustomizers; SearchStrategy: all) did not find any beans (OnBeanCondition)
259.

260.
     TransactionAutoConfiguration.EnableTransactionManagementConfiguration matched:
261.
     - @ConditionalOnBean (types: org.springframework.transaction.PlatformTransactionManager; SearchStrategy: all) found bean 'transactionManager'; @ConditionalOnMissingBean (types: org.springframework.transaction.annotation.AbstractTransactionManagementConfiguration; SearchStrategy: all) did not find any beans (OnBeanCondition)
262.

263.
     TransactionAutoConfiguration.EnableTransactionManagementConfiguration.CglibAutoProxyConfiguration matched:
264.
     - @ConditionalOnProperty (spring.aop.proxy-target-class=true) matched (OnPropertyCondition)
265.

266.
     TransactionAutoConfiguration.TransactionTemplateConfiguration matched:
267.
     - @ConditionalOnSingleCandidate (types: org.springframework.transaction.PlatformTransactionManager; SearchStrategy: all) found a primary bean from beans 'transactionManager' (OnBeanCondition)
268.

269.
     TransactionAutoConfiguration.TransactionTemplateConfiguration#transactionTemplate matched:
270.
     - @ConditionalOnMissingBean (types: org.springframework.transaction.support.TransactionTemplate; SearchStrategy: all) did not find any beans (OnBeanCondition)
271.

272.
     ValidationAutoConfiguration matched:
273.
     - @ConditionalOnClass found required class 'javax.validation.executable.ExecutableValidator'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
274.
     - @ConditionalOnResource found location classpath:META-INF/services/javax.validation.spi.ValidationProvider (OnResourceCondition)
275.

276.
     ValidationAutoConfiguration#defaultValidator matched:
277.
     - @ConditionalOnMissingBean (types: javax.validation.Validator; SearchStrategy: all) did not find any beans (OnBeanCondition)
278.

279.
     ValidationAutoConfiguration#methodValidationPostProcessor matched:
280.
     - @ConditionalOnMissingBean (types: org.springframework.validation.beanvalidation.MethodValidationPostProcessor; SearchStrategy: all) did not find any beans (OnBeanCondition)
281.

282.
     WebMvcAutoConfiguration matched:
283.
     - @ConditionalOnClass found required classes 'javax.servlet.Servlet', 'org.springframework.web.servlet.DispatcherServlet', 'org.springframework.web.servlet.config.annotation.WebMvcConfigurer'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
284.
     - found ConfigurableWebEnvironment (OnWebApplicationCondition)
285.
     - @ConditionalOnMissingBean (types: org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport; SearchStrategy: all) did not find any beans (OnBeanCondition)
286.

287.
     WebMvcAutoConfiguration#hiddenHttpMethodFilter matched:
288.
     - @ConditionalOnMissingBean (types: org.springframework.web.filter.HiddenHttpMethodFilter; SearchStrategy: all) did not find any beans (OnBeanCondition)
289.

290.
     WebMvcAutoConfiguration#httpPutFormContentFilter matched:
291.
     - @ConditionalOnProperty (spring.mvc.formcontent.putfilter.enabled) matched (OnPropertyCondition)
292.
     - @ConditionalOnMissingBean (types: org.springframework.web.filter.HttpPutFormContentFilter; SearchStrategy: all) did not find any beans (OnBeanCondition)
293.

294.
     WebMvcAutoConfiguration.WebMvcAutoConfigurationAdapter#defaultViewResolver matched:
295.
     - @ConditionalOnMissingBean (types: org.springframework.web.servlet.view.InternalResourceViewResolver; SearchStrategy: all) did not find any beans (OnBeanCondition)
296.

297.
     WebMvcAutoConfiguration.WebMvcAutoConfigurationAdapter#requestContextFilter matched:
298.
     - @ConditionalOnMissingBean (types: org.springframework.web.context.request.RequestContextListener,org.springframework.web.filter.RequestContextFilter; SearchStrategy: all) did not find any beans (OnBeanCondition)
299.

300.
     WebMvcAutoConfiguration.WebMvcAutoConfigurationAdapter#viewResolver matched:
301.
     - @ConditionalOnBean (types: org.springframework.web.servlet.ViewResolver; SearchStrategy: all) found beans 'defaultViewResolver', 'beanNameViewResolver', 'mvcViewResolver'; @ConditionalOnMissingBean (names: viewResolver; types: org.springframework.web.servlet.view.ContentNegotiatingViewResolver; SearchStrategy: all) did not find any beans (OnBeanCondition)
302.

303.
     WebMvcAutoConfiguration.WebMvcAutoConfigurationAdapter.FaviconConfiguration matched:
304.
     - @ConditionalOnProperty (spring.mvc.favicon.enabled) matched (OnPropertyCondition)
305.

306.
     WebSocketServletAutoConfiguration matched:
307.
     - @ConditionalOnClass found required classes 'javax.servlet.Servlet', 'javax.websocket.server.ServerContainer'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
308.
     - found ConfigurableWebEnvironment (OnWebApplicationCondition)
309.

310.
     WebSocketServletAutoConfiguration.TomcatWebSocketConfiguration matched:
311.
     - @ConditionalOnClass found required classes 'org.apache.catalina.startup.Tomcat', 'org.apache.tomcat.websocket.server.WsSci'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
312.

313.
     WebSocketServletAutoConfiguration.TomcatWebSocketConfiguration#websocketContainerCustomizer matched:
314.
     - @ConditionalOnMissingBean (names: websocketServletWebServerCustomizer; SearchStrategy: all) did not find any beans (OnBeanCondition)
315.

316.
     消极的匹配
317.
     Negative matches:
318.
     -----------------
319.

320.
     ActiveMQAutoConfiguration:
321.
     Did not match:
322.
     - @ConditionalOnClass did not find required classes 'javax.jms.ConnectionFactory', 'org.apache.activemq.ActiveMQConnectionFactory' (OnClassCondition)
323.

324.
     AopAutoConfiguration:
325.
     Did not match:
326.
     - @ConditionalOnClass did not find required classes 'org.aspectj.lang.annotation.Aspect', 'org.aspectj.lang.reflect.Advice', 'org.aspectj.weaver.AnnotatedElement' (OnClassCondition)
327.

328.
     ArtemisAutoConfiguration:
329.
     Did not match:
330.
     - @ConditionalOnClass did not find required classes 'javax.jms.ConnectionFactory', 'org.apache.activemq.artemis.jms.client.ActiveMQConnectionFactory' (OnClassCondition)
331.

332.
     BatchAutoConfiguration:
333.
     Did not match:
334.
     - @ConditionalOnClass did not find required class 'org.springframework.batch.core.launch.JobLauncher' (OnClassCondition)
335.

336.
     CacheAutoConfiguration.CacheManagerJpaDependencyConfiguration:
337.
     Did not match:
338.
     - @ConditionalOnClass did not find required class 'org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean' (OnClassCondition)
339.

340.
     CaffeineCacheConfiguration:
341.
     Did not match:
342.
     - @ConditionalOnClass did not find required class 'com.github.benmanes.caffeine.cache.Caffeine' (OnClassCondition)
343.

344.
     CassandraAutoConfiguration:
345.
     Did not match:
346.
     - @ConditionalOnClass did not find required class 'com.datastax.driver.core.Cluster' (OnClassCondition)
347.

348.
     CassandraDataAutoConfiguration:
349.
     Did not match:
350.
     - @ConditionalOnClass did not find required classes 'com.datastax.driver.core.Cluster', 'org.springframework.data.cassandra.core.CassandraAdminOperations' (OnClassCondition)
351.

352.
     CassandraReactiveDataAutoConfiguration:
353.
     Did not match:
354.
     - @ConditionalOnClass did not find required classes 'com.datastax.driver.core.Cluster', 'org.springframework.data.cassandra.core.ReactiveCassandraTemplate', 'reactor.core.publisher.Flux' (OnClassCondition)
355.

356.
     CassandraReactiveRepositoriesAutoConfiguration:
357.
     Did not match:
358.
     - @ConditionalOnClass did not find required classes 'org.springframework.data.cassandra.ReactiveSession', 'org.springframework.data.cassandra.repository.ReactiveCassandraRepository' (OnClassCondition)
359.

360.
     CassandraRepositoriesAutoConfiguration:
361.
     Did not match:
362.
     - @ConditionalOnClass did not find required classes 'com.datastax.driver.core.Session', 'org.springframework.data.cassandra.repository.CassandraRepository' (OnClassCondition)
363.

364.
     CloudAutoConfiguration:
365.
     Did not match:
366.
     - @ConditionalOnClass did not find required class 'org.springframework.cloud.config.java.CloudScanConfiguration' (OnClassCondition)
367.

368.
     CouchbaseAutoConfiguration:
369.
     Did not match:
370.
     - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.CouchbaseBucket', 'com.couchbase.client.java.Cluster' (OnClassCondition)
371.

372.
     CouchbaseCacheConfiguration:
373.
     Did not match:
374.
     - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.Bucket', 'com.couchbase.client.spring.cache.CouchbaseCacheManager' (OnClassCondition)
375.

376.
     CouchbaseDataAutoConfiguration:
377.
     Did not match:
378.
     - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.Bucket', 'org.springframework.data.couchbase.repository.CouchbaseRepository' (OnClassCondition)
379.

380.
     CouchbaseReactiveDataAutoConfiguration:
381.
     Did not match:
382.
     - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.Bucket', 'org.springframework.data.couchbase.repository.ReactiveCouchbaseRepository', 'reactor.core.publisher.Flux' (OnClassCondition)
383.

384.
     CouchbaseReactiveRepositoriesAutoConfiguration:
385.
     Did not match:
386.
     - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.Bucket', 'org.springframework.data.couchbase.repository.ReactiveCouchbaseRepository', 'reactor.core.publisher.Flux' (OnClassCondition)
387.

388.
     CouchbaseRepositoriesAutoConfiguration:
389.
     Did not match:
390.
     - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.Bucket', 'org.springframework.data.couchbase.repository.CouchbaseRepository' (OnClassCondition)
391.

392.
     DataSourceAutoConfiguration.EmbeddedDatabaseConfiguration:
393.
     Did not match:
394.
     - EmbeddedDataSource found supported pooled data source (DataSourceAutoConfiguration.EmbeddedDatabaseCondition)
395.

396.
     DataSourceConfiguration.Dbcp2:
397.
     Did not match:
398.
     - @ConditionalOnClass did not find required class 'org.apache.commons.dbcp2.BasicDataSource' (OnClassCondition)
399.

400.
     DataSourceConfiguration.Generic:
401.
     Did not match:
402.
     - @ConditionalOnProperty (spring.datasource.type) did not find property 'spring.datasource.type' (OnPropertyCondition)
403.

404.
     DataSourceConfiguration.Tomcat:
405.
     Did not match:
406.
     - @ConditionalOnClass did not find required class 'org.apache.tomcat.jdbc.pool.DataSource' (OnClassCondition)
407.

408.
     DataSourceJmxConfiguration.TomcatDataSourceJmxConfiguration:
409.
     Did not match:
410.
     - @ConditionalOnClass did not find required class 'org.apache.tomcat.jdbc.pool.DataSourceProxy' (OnClassCondition)
411.

412.
     DataSourcePoolMetadataProvidersConfiguration.CommonsDbcp2PoolDataSourceMetadataProviderConfiguration:
413.
     Did not match:
414.
     - @ConditionalOnClass did not find required class 'org.apache.commons.dbcp2.BasicDataSource' (OnClassCondition)
415.

416.
     DataSourcePoolMetadataProvidersConfiguration.TomcatDataSourcePoolMetadataProviderConfiguration:
417.
     Did not match:
418.
     - @ConditionalOnClass did not find required class 'org.apache.tomcat.jdbc.pool.DataSource' (OnClassCondition)
419.

420.
     DevToolsDataSourceAutoConfiguration.DatabaseShutdownExecutorJpaDependencyConfiguration:
421.
     Did not match:
422.
     - @ConditionalOnClass did not find required class 'org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean' (OnClassCondition)
423.

424.
     DispatcherServletAutoConfiguration.DispatcherServletConfiguration#multipartResolver:
425.
     Did not match:
426.
     - @ConditionalOnBean (types: org.springframework.web.multipart.MultipartResolver; SearchStrategy: all) did not find any beans of type org.springframework.web.multipart.MultipartResolver (OnBeanCondition)
427.

428.
     EhCacheCacheConfiguration:
429.
     Did not match:
430.
     - @ConditionalOnClass did not find required class 'net.sf.ehcache.Cache' (OnClassCondition)
431.

432.
     ElasticsearchAutoConfiguration:
433.
     Did not match:
434.
     - @ConditionalOnClass did not find required classes 'org.elasticsearch.client.Client', 'org.springframework.data.elasticsearch.client.TransportClientFactoryBean' (OnClassCondition)
435.

436.
     ElasticsearchDataAutoConfiguration:
437.
     Did not match:
438.
     - @ConditionalOnClass did not find required classes 'org.elasticsearch.client.Client', 'org.springframework.data.elasticsearch.core.ElasticsearchTemplate' (OnClassCondition)
439.

440.
     ElasticsearchRepositoriesAutoConfiguration:
441.
     Did not match:
442.
     - @ConditionalOnClass did not find required classes 'org.elasticsearch.client.Client', 'org.springframework.data.elasticsearch.repository.ElasticsearchRepository' (OnClassCondition)
443.

444.
     EmbeddedLdapAutoConfiguration:
445.
     Did not match:
446.
     - @ConditionalOnClass did not find required class 'com.unboundid.ldap.listener.InMemoryDirectoryServer' (OnClassCondition)
447.

448.
     EmbeddedMongoAutoConfiguration:
449.
     Did not match:
450.
     - @ConditionalOnClass did not find required classes 'com.mongodb.MongoClient', 'de.flapdoodle.embed.mongo.MongodStarter' (OnClassCondition)
451.

452.
     EmbeddedWebServerFactoryCustomizerAutoConfiguration.JettyWebServerFactoryCustomizerConfiguration:
453.
     Did not match:
454.
     - @ConditionalOnClass did not find required classes 'org.eclipse.jetty.server.Server', 'org.eclipse.jetty.util.Loader', 'org.eclipse.jetty.webapp.WebAppContext' (OnClassCondition)
455.

456.
     EmbeddedWebServerFactoryCustomizerAutoConfiguration.UndertowWebServerFactoryCustomizerConfiguration:
457.
     Did not match:
458.
     - @ConditionalOnClass did not find required classes 'io.undertow.Undertow', 'org.xnio.SslClientAuthMode' (OnClassCondition)
459.

460.
     ErrorWebFluxAutoConfiguration:
461.
     Did not match:
462.
     - @ConditionalOnClass did not find required class 'org.springframework.web.reactive.config.WebFluxConfigurer' (OnClassCondition)
463.

464.
     FlywayAutoConfiguration:
465.
     Did not match:
466.
     - @ConditionalOnClass did not find required class 'org.flywaydb.core.Flyway' (OnClassCondition)
467.

468.
     FreeMarkerAutoConfiguration:
469.
     Did not match:
470.
     - @ConditionalOnClass did not find required class 'freemarker.template.Configuration' (OnClassCondition)
471.

472.
     GenericCacheConfiguration:
473.
     Did not match:
474.
     - @ConditionalOnBean (types: org.springframework.cache.Cache; SearchStrategy: all) did not find any beans of type org.springframework.cache.Cache (OnBeanCondition)
475.
     Matched:
476.
     - Cache org.springframework.boot.autoconfigure.cache.GenericCacheConfiguration automatic cache type (CacheCondition)
477.

478.
     GroovyTemplateAutoConfiguration:
479.
     Did not match:
480.
     - @ConditionalOnClass did not find required class 'groovy.text.markup.MarkupTemplateEngine' (OnClassCondition)
481.

482.
     GsonAutoConfiguration:
483.
     Did not match:
484.
     - @ConditionalOnClass did not find required class 'com.google.gson.Gson' (OnClassCondition)
485.

486.
     GsonHttpMessageConvertersConfiguration:
487.
     Did not match:
488.
     - @ConditionalOnClass did not find required class 'com.google.gson.Gson' (OnClassCondition)
489.

490.
     H2ConsoleAutoConfiguration:
491.
     Did not match:
492.
     - @ConditionalOnClass did not find required class 'org.h2.server.web.WebServlet' (OnClassCondition)
493.

494.
     HazelcastAutoConfiguration:
495.
     Did not match:
496.
     - @ConditionalOnClass did not find required class 'com.hazelcast.core.HazelcastInstance' (OnClassCondition)
497.

498.
     HazelcastCacheConfiguration:
499.
     Did not match:
500.
     - @ConditionalOnClass did not find required classes 'com.hazelcast.core.HazelcastInstance', 'com.hazelcast.spring.cache.HazelcastCacheManager' (OnClassCondition)
501.

502.
     HazelcastJpaDependencyAutoConfiguration:
503.
     Did not match:
504.
     - @ConditionalOnClass did not find required classes 'com.hazelcast.core.HazelcastInstance', 'org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean' (OnClassCondition)
505.

506.
     HibernateJpaAutoConfiguration:
507.
     Did not match:
508.
     - @ConditionalOnClass did not find required classes 'org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean', 'javax.persistence.EntityManager' (OnClassCondition)
509.

510.
     HttpHandlerAutoConfiguration:
511.
     Did not match:
512.
     - @ConditionalOnClass did not find required class 'org.springframework.web.reactive.DispatcherHandler' (OnClassCondition)
513.

514.
     HypermediaAutoConfiguration:
515.
     Did not match:
516.
     - @ConditionalOnClass did not find required classes 'org.springframework.hateoas.Resource', 'org.springframework.plugin.core.Plugin' (OnClassCondition)
517.

518.
     InfinispanCacheConfiguration:
519.
     Did not match:
520.
     - @ConditionalOnClass did not find required class 'org.infinispan.spring.provider.SpringEmbeddedCacheManager' (OnClassCondition)
521.

522.
     InfluxDbAutoConfiguration:
523.
     Did not match:
524.
     - @ConditionalOnClass did not find required class 'org.influxdb.InfluxDB' (OnClassCondition)
525.

526.
     IntegrationAutoConfiguration:
527.
     Did not match:
528.
     - @ConditionalOnClass did not find required class 'org.springframework.integration.config.EnableIntegration' (OnClassCondition)
529.

530.
     JCacheCacheConfiguration:
531.
     Did not match:
532.
     - @ConditionalOnClass did not find required class 'javax.cache.Caching' (OnClassCondition)
533.

534.
     JacksonAutoConfiguration.JodaDateTimeJacksonConfiguration:
535.
     Did not match:
536.
     - @ConditionalOnClass did not find required classes 'org.joda.time.DateTime', 'com.fasterxml.jackson.datatype.joda.ser.DateTimeSerializer', 'com.fasterxml.jackson.datatype.joda.cfg.JacksonJodaDateFormat' (OnClassCondition)
537.

538.
     JacksonHttpMessageConvertersConfiguration.MappingJackson2XmlHttpMessageConverterConfiguration:
539.
     Did not match:
540.
     - @ConditionalOnClass did not find required class 'com.fasterxml.jackson.dataformat.xml.XmlMapper' (OnClassCondition)
541.

542.
     JerseyAutoConfiguration:
543.
     Did not match:
544.
     - @ConditionalOnClass did not find required class 'org.glassfish.jersey.server.spring.SpringComponentProvider' (OnClassCondition)
545.

546.
     JestAutoConfiguration:
547.
     Did not match:
548.
     - @ConditionalOnClass did not find required class 'io.searchbox.client.JestClient' (OnClassCondition)
549.

550.
     JmsAutoConfiguration:
551.
     Did not match:
552.
     - @ConditionalOnClass did not find required classes 'javax.jms.Message', 'org.springframework.jms.core.JmsTemplate' (OnClassCondition)
553.

554.
     JndiConnectionFactoryAutoConfiguration:
555.
     Did not match:
556.
     - @ConditionalOnClass did not find required class 'org.springframework.jms.core.JmsTemplate' (OnClassCondition)
557.

558.
     JndiDataSourceAutoConfiguration:
559.
     Did not match:
560.
     - @ConditionalOnProperty (spring.datasource.jndi-name) did not find property 'jndi-name' (OnPropertyCondition)
561.
     Matched:
562.
     - @ConditionalOnClass found required classes 'javax.sql.DataSource', 'org.springframework.jdbc.datasource.embedded.EmbeddedDatabaseType'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
563.

564.
     JooqAutoConfiguration:
565.
     Did not match:
566.
     - @ConditionalOnClass did not find required class 'org.jooq.DSLContext' (OnClassCondition)
567.

568.
     JpaRepositoriesAutoConfiguration:
569.
     Did not match:
570.
     - @ConditionalOnClass did not find required class 'org.springframework.data.jpa.repository.JpaRepository' (OnClassCondition)
571.

572.
     JsonbAutoConfiguration:
573.
     Did not match:
574.
     - @ConditionalOnClass did not find required class 'javax.json.bind.Jsonb' (OnClassCondition)
575.

576.
     JsonbHttpMessageConvertersConfiguration:
577.
     Did not match:
578.
     - @ConditionalOnClass did not find required class 'javax.json.bind.Jsonb' (OnClassCondition)
579.

580.
     JtaAutoConfiguration:
581.
     Did not match:
582.
     - @ConditionalOnClass did not find required class 'javax.transaction.Transaction' (OnClassCondition)
583.

584.
     KafkaAutoConfiguration:
585.
     Did not match:
586.
     - @ConditionalOnClass did not find required class 'org.springframework.kafka.core.KafkaTemplate' (OnClassCondition)
587.

588.
     LdapAutoConfiguration:
589.
     Did not match:
590.
     - @ConditionalOnClass did not find required class 'org.springframework.ldap.core.ContextSource' (OnClassCondition)
591.

592.
     LdapDataAutoConfiguration:
593.
     Did not match:
594.
     - @ConditionalOnClass did not find required class 'org.springframework.data.ldap.repository.LdapRepository' (OnClassCondition)
595.

596.
     LdapRepositoriesAutoConfiguration:
597.
     Did not match:
598.
     - @ConditionalOnClass did not find required class 'org.springframework.data.ldap.repository.LdapRepository' (OnClassCondition)
599.

600.
     LiquibaseAutoConfiguration:
601.
     Did not match:
602.
     - @ConditionalOnClass did not find required classes 'liquibase.integration.spring.SpringLiquibase', 'liquibase.change.DatabaseChange' (OnClassCondition)
603.

604.
     MailSenderAutoConfiguration:
605.
     Did not match:
606.
     - @ConditionalOnClass did not find required class 'javax.mail.internet.MimeMessage' (OnClassCondition)
607.

608.
     MailSenderValidatorAutoConfiguration:
609.
     Did not match:
610.
     - @ConditionalOnProperty (spring.mail.test-connection) did not find property 'test-connection' (OnPropertyCondition)
611.

612.
     MessageSourceAutoConfiguration:
613.
     Did not match:
614.
     - ResourceBundle did not find bundle with basename messages (MessageSourceAutoConfiguration.ResourceBundleCondition)
615.

616.
     MongoAutoConfiguration:
617.
     Did not match:
618.
     - @ConditionalOnClass did not find required class 'com.mongodb.MongoClient' (OnClassCondition)
619.

620.
     MongoDataAutoConfiguration:
621.
     Did not match:
622.
     - @ConditionalOnClass did not find required classes 'com.mongodb.MongoClient', 'org.springframework.data.mongodb.core.MongoTemplate' (OnClassCondition)
623.

624.
     MongoReactiveAutoConfiguration:
625.
     Did not match:
626.
     - @ConditionalOnClass did not find required class 'com.mongodb.reactivestreams.client.MongoClient' (OnClassCondition)
627.

628.
     MongoReactiveDataAutoConfiguration:
629.
     Did not match:
630.
     - @ConditionalOnClass did not find required classes 'com.mongodb.reactivestreams.client.MongoClient', 'org.springframework.data.mongodb.core.ReactiveMongoTemplate' (OnClassCondition)
631.

632.
     MongoReactiveRepositoriesAutoConfiguration:
633.
     Did not match:
634.
     - @ConditionalOnClass did not find required classes 'com.mongodb.reactivestreams.client.MongoClient', 'org.springframework.data.mongodb.repository.ReactiveMongoRepository' (OnClassCondition)
635.

636.
     MongoRepositoriesAutoConfiguration:
637.
     Did not match:
638.
     - @ConditionalOnClass did not find required classes 'com.mongodb.MongoClient', 'org.springframework.data.mongodb.repository.MongoRepository' (OnClassCondition)
639.

640.
     MustacheAutoConfiguration:
641.
     Did not match:
642.
     - @ConditionalOnClass did not find required class 'com.samskivert.mustache.Mustache' (OnClassCondition)
643.

644.
     MybatisAutoConfiguration.MapperScannerRegistrarNotFoundConfiguration:
645.
     Did not match:
646.
     - @ConditionalOnMissingBean (types: org.mybatis.spring.mapper.MapperFactoryBean; SearchStrategy: all) found beans of type 'org.mybatis.spring.mapper.MapperFactoryBean' &departmentMapper, &employeeMapper (OnBeanCondition)
647.

648.
     Neo4jDataAutoConfiguration:
649.
     Did not match:
650.
     - @ConditionalOnClass did not find required classes 'org.neo4j.ogm.session.SessionFactory', 'org.springframework.data.neo4j.transaction.Neo4jTransactionManager' (OnClassCondition)
651.

652.
     Neo4jRepositoriesAutoConfiguration:
653.
     Did not match:
654.
     - @ConditionalOnClass did not find required classes 'org.neo4j.ogm.session.Neo4jSession', 'org.springframework.data.neo4j.repository.Neo4jRepository' (OnClassCondition)
655.

656.
     NoOpCacheConfiguration:
657.
     Did not match:
658.
     - @ConditionalOnMissingBean (types: org.springframework.cache.CacheManager; SearchStrategy: all) found beans of type 'org.springframework.cache.CacheManager' cacheManager (OnBeanCondition)
659.
     Matched:
660.
     - Cache org.springframework.boot.autoconfigure.cache.NoOpCacheConfiguration automatic cache type (CacheCondition)
661.

662.
     OAuth2ClientAutoConfiguration:
663.
     Did not match:
664.
     - @ConditionalOnClass did not find required classes 'org.springframework.security.config.annotation.web.configuration.EnableWebSecurity', 'org.springframework.security.oauth2.client.registration.ClientRegistration' (OnClassCondition)
665.

666.
     ProjectInfoAutoConfiguration#buildProperties:
667.
     Did not match:
668.
     - @ConditionalOnResource did not find resource '${spring.info.build.location:classpath:META-INF/build-info.properties}' (OnResourceCondition)
669.

670.
     ProjectInfoAutoConfiguration#gitProperties:
671.
     Did not match:
672.
     - GitResource did not find git info at classpath:git.properties (ProjectInfoAutoConfiguration.GitResourceAvailableCondition)
673.

674.
     QuartzAutoConfiguration:
675.
     Did not match:
676.
     - @ConditionalOnClass did not find required class 'org.quartz.Scheduler' (OnClassCondition)
677.

678.
     RabbitAutoConfiguration:
679.
     Did not match:
680.
     - @ConditionalOnClass did not find required classes 'org.springframework.amqp.rabbit.core.RabbitTemplate', 'com.rabbitmq.client.Channel' (OnClassCondition)
681.

682.
     ReactiveUserDetailsServiceAutoConfiguration:
683.
     Did not match:
684.
     - @ConditionalOnClass did not find required class 'org.springframework.security.authentication.ReactiveAuthenticationManager' (OnClassCondition)
685.

686.
     ReactiveWebServerFactoryAutoConfiguration:
687.
     Did not match:
688.
     - not a reactive web application (OnWebApplicationCondition)
689.
     Matched:
690.
     - @ConditionalOnClass found required class 'org.springframework.http.ReactiveHttpInputMessage'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
691.

692.
     ReactorCoreAutoConfiguration:
693.
     Did not match:
694.
     - @ConditionalOnClass did not find required classes 'reactor.core.publisher.Mono', 'reactor.core.publisher.Flux' (OnClassCondition)
695.

696.
     RedisAutoConfiguration:
697.
     Did not match:
698.
     - @ConditionalOnClass did not find required class 'org.springframework.data.redis.core.RedisOperations' (OnClassCondition)
699.

700.
     RedisCacheConfiguration:
701.
     Did not match:
702.
     - @ConditionalOnClass did not find required class 'org.springframework.data.redis.connection.RedisConnectionFactory' (OnClassCondition)
703.

704.
     RedisReactiveAutoConfiguration:
705.
     Did not match:
706.
     - @ConditionalOnClass did not find required classes 'org.springframework.data.redis.connection.ReactiveRedisConnectionFactory', 'org.springframework.data.redis.core.ReactiveRedisTemplate', 'reactor.core.publisher.Flux' (OnClassCondition)
707.

708.
     RedisRepositoriesAutoConfiguration:
709.
     Did not match:
710.
     - @ConditionalOnClass did not find required class 'org.springframework.data.redis.repository.configuration.EnableRedisRepositories' (OnClassCondition)
711.

712.
     RemoteDevToolsAutoConfiguration:
713.
     Did not match:
714.
     - @ConditionalOnProperty (spring.devtools.remote.secret) did not find property 'secret' (OnPropertyCondition)
715.
     Matched:
716.
     - @ConditionalOnClass found required classes 'javax.servlet.Filter', 'org.springframework.http.server.ServerHttpRequest'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
717.

718.
     RepositoryRestMvcAutoConfiguration:
719.
     Did not match:
720.
     - @ConditionalOnClass did not find required class 'org.springframework.data.rest.webmvc.config.RepositoryRestMvcConfiguration' (OnClassCondition)
721.

722.
     SecurityAutoConfiguration:
723.
     Did not match:
724.
     - @ConditionalOnClass did not find required class 'org.springframework.security.authentication.DefaultAuthenticationEventPublisher' (OnClassCondition)
725.

726.
     SecurityFilterAutoConfiguration:
727.
     Did not match:
728.
     - @ConditionalOnClass did not find required classes 'org.springframework.security.web.context.AbstractSecurityWebApplicationInitializer', 'org.springframework.security.config.http.SessionCreationPolicy' (OnClassCondition)
729.

730.
     SendGridAutoConfiguration:
731.
     Did not match:
732.
     - @ConditionalOnClass did not find required class 'com.sendgrid.SendGrid' (OnClassCondition)
733.

734.
     ServletWebServerFactoryConfiguration.EmbeddedJetty:
735.
     Did not match:
736.
     - @ConditionalOnClass did not find required classes 'org.eclipse.jetty.server.Server', 'org.eclipse.jetty.util.Loader', 'org.eclipse.jetty.webapp.WebAppContext' (OnClassCondition)
737.

738.
     ServletWebServerFactoryConfiguration.EmbeddedUndertow:
739.
     Did not match:
740.
     - @ConditionalOnClass did not find required classes 'io.undertow.Undertow', 'org.xnio.SslClientAuthMode' (OnClassCondition)
741.

742.
     SessionAutoConfiguration:
743.
     Did not match:
744.
     - @ConditionalOnClass did not find required class 'org.springframework.session.Session' (OnClassCondition)
745.

746.
     SolrAutoConfiguration:
747.
     Did not match:
748.
     - @ConditionalOnClass did not find required classes 'org.apache.solr.client.solrj.impl.HttpSolrClient', 'org.apache.solr.client.solrj.impl.CloudSolrClient' (OnClassCondition)
749.

750.
     SolrRepositoriesAutoConfiguration:
751.
     Did not match:
752.
     - @ConditionalOnClass did not find required classes 'org.apache.solr.client.solrj.SolrClient', 'org.springframework.data.solr.repository.SolrRepository' (OnClassCondition)
753.

754.
     SpringDataWebAutoConfiguration:
755.
     Did not match:
756.
     - @ConditionalOnClass did not find required class 'org.springframework.data.web.PageableHandlerMethodArgumentResolver' (OnClassCondition)
757.

758.
     ThymeleafAutoConfiguration:
759.
     Did not match:
760.
     - @ConditionalOnClass did not find required class 'org.thymeleaf.templatemode.TemplateMode' (OnClassCondition)
761.

762.
     TransactionAutoConfiguration.EnableTransactionManagementConfiguration.JdkDynamicAutoProxyConfiguration:
763.
     Did not match:
764.
     - @ConditionalOnProperty (spring.aop.proxy-target-class=false) did not find property 'proxy-target-class' (OnPropertyCondition)
765.

766.
     UserDetailsServiceAutoConfiguration:
767.
     Did not match:
768.
     - @ConditionalOnClass did not find required class 'org.springframework.security.authentication.AuthenticationManager' (OnClassCondition)
769.

770.
     WebClientAutoConfiguration:
771.
     Did not match:
772.
     - @ConditionalOnClass did not find required class 'org.springframework.web.reactive.function.client.WebClient' (OnClassCondition)
773.

774.
     WebFluxAutoConfiguration:
775.
     Did not match:
776.
     - @ConditionalOnClass did not find required class 'org.springframework.web.reactive.config.WebFluxConfigurer' (OnClassCondition)
777.

778.
     WebFluxSecurityConfiguration:
779.
     Did not match:
780.
     - @ConditionalOnClass did not find required classes 'org.springframework.security.config.annotation.web.reactive.EnableWebFluxSecurity', 'org.springframework.security.web.server.WebFilterChainProxy' (OnClassCondition)
781.

782.
     WebMvcAutoConfiguration.ResourceChainCustomizerConfiguration:
783.
     Did not match:
784.
     - @ConditionalOnEnabledResourceChain did not find class org.webjars.WebJarAssetLocator (OnEnabledResourceChainCondition)
785.

786.
     WebMvcAutoConfiguration.WebMvcAutoConfigurationAdapter#beanNameViewResolver:
787.
     Did not match:
788.
     - @ConditionalOnMissingBean (types: org.springframework.web.servlet.view.BeanNameViewResolver; SearchStrategy: all) found beans of type 'org.springframework.web.servlet.view.BeanNameViewResolver' beanNameViewResolver (OnBeanCondition)
789.

790.
     WebMvcAutoConfiguration.WebMvcAutoConfigurationAdapter#localeResolver:
791.
     Did not match:
792.
     - @ConditionalOnProperty (spring.mvc.locale) did not find property 'locale' (OnPropertyCondition)
793.

794.
     WebServicesAutoConfiguration:
795.
     Did not match:
796.
     - @ConditionalOnClass did not find required class 'org.springframework.ws.transport.http.MessageDispatcherServlet' (OnClassCondition)
797.

798.
     WebSocketMessagingAutoConfiguration:
799.
     Did not match:
800.
     - @ConditionalOnClass did not find required class 'org.springframework.web.socket.config.annotation.WebSocketMessageBrokerConfigurer' (OnClassCondition)
801.

802.
     WebSocketReactiveAutoConfiguration:
803.
     Did not match:
804.
     - not a reactive web application (OnWebApplicationCondition)
805.
     Matched:
806.
     - @ConditionalOnClass found required classes 'javax.servlet.Servlet', 'javax.websocket.server.ServerContainer'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
807.

808.
     WebSocketServletAutoConfiguration.JettyWebSocketConfiguration:
809.
     Did not match:
810.
     - @ConditionalOnClass did not find required class 'org.eclipse.jetty.websocket.jsr356.server.deploy.WebSocketServerContainerInitializer' (OnClassCondition)
811.

812.
     WebSocketServletAutoConfiguration.UndertowWebSocketConfiguration:
813.
     Did not match:
814.
     - @ConditionalOnClass did not find required class 'io.undertow.websockets.jsr.Bootstrap' (OnClassCondition)
815.

816.
     XADataSourceAutoConfiguration:
817.
     Did not match:
818.
     - @ConditionalOnClass did not find required class 'javax.transaction.TransactionManager' (OnClassCondition)
819.

820.

821.
     Exclusions:
822.
     -----------
823.

824.
     None
825.

826.

827.
     Unconditional classes:
828.
     ----------------------
829.

830.
     org.springframework.boot.autoconfigure.context.PropertyPlaceholderAutoConfiguration
831.

832.
     org.springframework.boot.autoconfigure.web.embedded.EmbeddedWebServerFactoryCustomizerAutoConfiguration
833.

834.
     org.springframework.boot.autoconfigure.security.reactive.ReactiveSecurityAutoConfiguration
835.

836.
     org.springframework.boot.autoconfigure.context.ConfigurationPropertiesAutoConfiguration
837.

838.
     org.springframework.boot.autoconfigure.info.ProjectInfoAutoConfiguration
839.

840.

841.

842.
     2018-09-08 00:35:23.579 INFO 15880 --- [ restartedMain] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port(s): 8080 (http) with context path ''
843.
     2018-09-08 00:35:23.581 INFO 15880 --- [ restartedMain] c.z.s.Springboot01CacheApplication : Started Springboot01CacheApplication in 1.977 seconds (JVM running for 2.532)
844.
     2018-09-08 00:35:23.583 DEBUG 15880 --- [ restartedMain] o.s.boot.devtools.restart.Restarter : Creating new Restarter for thread Thread[main,5,main]
845.
     2018-09-08 00:35:23.583 DEBUG 15880 --- [ restartedMain] o.s.boot.devtools.restart.Restarter : Immediately restarting application
846.
     2018-09-08 00:35:23.583 DEBUG 15880 --- [ restartedMain] o.s.boot.devtools.restart.Restarter : Created RestartClassLoader org.springframework.boot.devtools.restart.classloader.RestartClassLoader@55ef7dd3
847.
     2018-09-08 00:35:23.583 DEBUG 15880 --- [ restartedMain] o.s.boot.devtools.restart.Restarter : Starting application com.zzq.springboot01cache.Springboot01CacheApplication with URLs [file:/D:/springboot%e9%ab%98%e7%ba%a7/springboot-01-cache/target/classes/]
848.


我们发现就只有一个缓存配置是注册进去了， 也就是说会产生一个缓存管理器

我们看下

  SimpleCacheConfiguration

1.
   @Bean
2.
   public ConcurrentMapCacheManager cacheManager() {
3.
   ConcurrentMapCacheManager cacheManager = new ConcurrentMapCacheManager();
4.
   List<String> cacheNames = this.cacheProperties.getCacheNames();
5.
   if (!cacheNames.isEmpty()) {
6.
   cacheManager.setCacheNames(cacheNames);
7.
   }
8.
   return this.customizerInvoker.customize(cacheManager);
9.
   }

向容器中放入要给ConcurrentMapCacheManager 这个缓存管理器

ConcurrentMapCacheManger

从名字就能看出来，底层一定使用的是ConcurrentMap

1.
   @Bean
2.
   public ConcurrentMapCacheManager cacheManager() {
3.
   ConcurrentMapCacheManager cacheManager = new ConcurrentMapCacheManager();
4.
   List<String> cacheNames = this.cacheProperties.getCacheNames();
5.
   if (!cacheNames.isEmpty()) {
6.
   cacheManager.setCacheNames(cacheNames);
7.
   }
8.
   return this.customizerInvoker.customize(cacheManager);
9.
   }

//设置缓存组件的名字

1.
   @Override
2.
   @Nullable
3.
   public Cache getCache(String name) {
4.
   Cache cache = this.cacheMap.get(name);
5.
   if (cache == null && this.dynamic) {
6.
   synchronized (this.cacheMap) {
7.
   cache = this.cacheMap.get(name);
8.
   if (cache == null) {
9.
   cache = createConcurrentMapCache(name);
10.
    this.cacheMap.put(name, cache);
11.
    }
12.
    }
13.
    }
14.
    return cache;
15.
    }

通过名字获取缓存组件，如果是null 的话， 然后就用同步代码块进行尝试，如果还是没有得到， 就直接创建一个cache

1.
   protected Cache createConcurrentMapCache(String name) {
2.
   SerializationDelegate actualSerialization = (isStoreByValue() ? this.serialization : null);
3.
   return new ConcurrentMapCache(name, new ConcurrentHashMap<>(256),
4.
   isAllowNullValues(), actualSerialization);
5.

6.
   }

1.
   protected ConcurrentMapCache(String name, ConcurrentMap<Object, Object> store,
2.
   boolean allowNullValues, @Nullable SerializationDelegate serialization) {
3.

4.
   super(allowNullValues);
5.
   Assert.notNull(name, "Name must not be null");
6.
   Assert.notNull(store, "Store must not be null");
7.
   this.name = name;
8.
   this.store = store;
9.
   this.serialization = serialization;
10.
    }

	private final ConcurrentMap<Object, Object> store;

创建一个concurrentHashMap 集合进行缓存数据

运行流程

@Cacheable    向缓存中存数据

    *      cacheNames/value：指定缓存组件的名字;将方法的返回结果放在哪个缓存中，是数组的方式，可以指定多个缓存；
     *
     *      key：缓存数据使用的key；可以用它来指定。默认是使用方法参数的值  1-方法的返回值
     *              编写SpEL； #i d;参数id的值   #a0  #p0  #root.args[0]
     *              getEmp[2]
     *
     *      keyGenerator：key的生成器；可以自己指定key的生成器的组件id
     *              key/keyGenerator：二选一使用;
     *
     *
     *      cacheManager：指定缓存管理器；或者cacheResolver指定获取解析器
     *
     *      condition：指定符合条件的情况下才缓存；
     *              ,condition = "#id>0"
     *          condition = "#a0>1"：第一个参数的值》1的时候才进行缓存
     *
     *      unless:否定缓存；当unless指定的条件为true，方法的返回值就不会被缓存；可以获取到结果进行判断
     *              unless = "#result == null"
     *              unless = "#a0==2":如果第一个参数的值是2，结果不缓存；
     *      sync：是否使用异步模式

名字	位置	描述	示例
methodName	root object	当前被调用的方法名	#root.methodName
method	root object	当前被调用的方法	#root.method.name
target	root object	当前被调用的目标对象	#root.target
targetClass	root object	当前被调用的目标对象类	#root.targetClass
args	root object	当前被调用的方法的参数列表	#root.args[0]
caches	root object	当前方法调用使用的缓存列表（如@Cacheable(value={"cache1", "cache2"})），则有两个cache	#root.caches[0].name
argument name	evaluation context	方法参数的名字. 可以直接 #参数名 ，也可以使用 #p0或#a0 的形式，0代表参数的索引；	#iban 、 #a0 、  #p0
result	evaluation context	方法执行后的返回值（仅当方法执行之后的判断有效，如‘unless’，’cache put’的表达式 ’cache evict’的表达式beforeInvocation=false）	#result

@Cacheput  修改数据库中的某个数据，同时更新缓存

1.
   /**
2.
   * 更新
3.
   */
4.
   @CachePut(key = "#employee.id")
5.
   public Employee updateEmp(Employee employee){
6.
   employeeMapper.updateEmp(employee);
7.
   return employee ;
8.
   }

1.
   @GetMapping("/emp")
2.
   public Employee updateEmp(Employee employee){
3.
   return employeeService.updateEmp(employee);
4.
   }

1.查看

  第一次请求

1.
   2018-09-08 23:53:56.124 DEBUG 8936 --- [nio-8080-exec-2] o.s.b.w.s.f.OrderedRequestContextFilter : Bound request context to thread: org.apache.catalina.connector.RequestFacade@1d73467b
2.
   查询员工1
3.
   2018-09-08 23:53:56.125 INFO 8936 --- [nio-8080-exec-2] com.zaxxer.hikari.HikariDataSource : HikariPool-1 - Starting...
4.
   2018-09-08 23:54:01.400 INFO 8936 --- [nio-8080-exec-2] com.zaxxer.hikari.HikariDataSource : HikariPool-1 - Start completed.
5.
   2018-09-08 23:54:01.406 DEBUG 8936 --- [nio-8080-exec-2] c.z.s.mapper.EmployeeMapper.getEmpById : ==> Preparing: SELECT * FROM employee WHERE id = ?
6.
   2018-09-08 23:54:01.416 DEBUG 8936 --- [nio-8080-exec-2] c.z.s.mapper.EmployeeMapper.getEmpById : ==> Parameters: 1(Integer)
7.
   2018-09-08 23:54:01.798 DEBUG 8936 --- [nio-8080-exec-2] c.z.s.mapper.EmployeeMapper.getEmpById : <== Total: 1
8.
   2018-09-08 23:54:01.833 DEBUG 8936 --- [nio-8080-exec-2] o.s.b.w.s.f.OrderedRequestContextFilter : Cleared thread-bound request context: org.apache.catalina.connector.RequestFacade@1d73467b

查询数据库

第二次

1.
   2018-09-08 23:54:40.618 DEBUG 8936 --- [nio-8080-exec-4] o.s.b.w.s.f.OrderedRequestContextFilter : Bound request context to thread: org.apache.catalina.connector.RequestFacade@1d73467b
2.
   2018-09-08 23:54:40.621 DEBUG 8936 --- [nio-8080-exec-4] o.s.b.w.s.f.OrderedRequestContextFilter : Cleared thread-bound request context: org.apache.catalina.connector.RequestFacade@1d73467b

没有对数据库进行操作

2.更新

1.
   2018-09-08 23:55:58.751 DEBUG 8936 --- [nio-8080-exec-3] o.s.b.w.s.f.OrderedRequestContextFilter : Bound request context to thread: org.apache.catalina.connector.RequestFacade@1d73467b
2.
   2018-09-08 23:55:59.890 DEBUG 8936 --- [nio-8080-exec-3] c.z.s.mapper.EmployeeMapper.updateEmp : ==> Preparing: UPDATE employee SET lastName=?,email=?,gender=?,d_id=? WHERE id=?
3.
   2018-09-08 23:55:59.891 DEBUG 8936 --- [nio-8080-exec-3] c.z.s.mapper.EmployeeMapper.updateEmp : ==> Parameters: 张ab(String), zhangsan@qq.com(String), 1(Integer), null, 1(Integer)
4.
   2018-09-08 23:56:04.531 DEBUG 8936 --- [nio-8080-exec-3] c.z.s.mapper.EmployeeMapper.updateEmp : <== Updates: 1
5.
   2018-09-08 23:56:04.633 DEBUG 8936 --- [nio-8080-exec-3] o.s.b.w.s.f.OrderedRequestContextFilter : Cleared thread-bound request context: org.apache.catalina.connector.RequestFacade@1d73467b

更行成功，

查看

1.
   2018-09-08 23:57:30.997 DEBUG 8936 --- [nio-8080-exec-5] o.s.b.w.s.f.OrderedRequestContextFilter : Bound request context to thread: org.apache.catalina.connector.RequestFacade@1d73467b
2.
   2018-09-08 23:57:30.999 DEBUG 8936 --- [nio-8080-exec-5] o.s.b.w.s.f.OrderedRequestContextFilter : Cleared thread-bound request context: org.apache.catalina.connector.RequestFacade@1d73467b

@ CacheEvict  删除数据库的数据同时，删除缓存中的数据

1.
   /**
2.
   * 删除操作
3.
   * @param id
4.
   */
5.
   @CacheEvict(cacheNames = "emp",key = "#a0")
6.
   public void deleteEmp(Integer id){
7.
   employeeMapper.deleteEmpById(id);
8.
   }

1.

2.
   @GetMapping("/empdelete/{id}")
3.
   public void deleteEmp(@PathVariable("id") Integer id){
4.
   employeeService.deleteEmp(id);
5.
   }

@Caching 定义复杂缓存注解      @CacheConfig抽取这个类中的公共项

1.
   /**
2.
   * 根据名字来查询
3.
   */
4.
   @Caching(
5.
   cacheable= {
6.
   @Cacheable(key = "#a0")
7.
   },
8.
   put = {
9.
   @CachePut(key = "#result.email"),
10.
    @CachePut(key = "#result.id")
11.
    }
12.
    )
13.
    public Employee getEmpByName(String lastName){
14.
    return employeeMapper.getEmpByLastName(lastName);
15.
    }

1.
   @CacheConfig(cacheNames = "emp")
2.
   @Service
3.
   public class EmployeeService {

Springboot 整合Redis

1.引入redis

1.
   <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-data-redis -->
2.
   <dependency>
3.
   <groupId>org.springframework.boot</groupId>
4.
   <artifactId>spring-boot-starter-data-redis</artifactId>
5.
   </dependency>

2.配置redis 连接 在properties/yml全局配置文件中配置host  port  默认port是6397

1.
   redis:
2.
   host: 192.168.24.133
3.
   port: 6377

使用redisTemplate 操作redis 数据库

redis 提供了redisTemplate 模板对象操作redis ， 因为String类型的数据存储操作比较多，写了一个子类stringRedisTemplated类

string

1.
   stringStringValueOperations.set("hello","a");
2.
   stringStringValueOperations.append("hello","b");

list

1.
   stringRedisTemplate.opsForList().leftPushAll("myList", Arrays.asList("A","b"));
2.
   // System.out.println(stringRedisTemplate.opsForList().leftPop("myList")); //从左边弹出

redis序列化对象

redis 默认是按照jdk提供的 Serializable  接口标识，序列化的，

1.
   super.afterPropertiesSet();
2.

3.
   boolean defaultUsed = false;
4.

5.
   if (defaultSerializer == null) {
6.

7.
   defaultSerializer = new JdkSerializationRedisSerializer(
8.
   classLoader != null ? classLoader : this.getClass().getClassLoader());
9.
   }
10.

11.
    if (enableDefaultSerializer) {
12.

13.
    if (keySerializer == null) {
14.
    keySerializer = defaultSerializer;
15.
    defaultUsed = true;
16.
    }

只要我们把要要序列化的对象，实现Serializable  接口spring提供的redistemplate就会自动帮我们完成序列化

但是序列化不是只有着一种方式 ，SpringTemplate也提供了好几种序列化方式

只要我们有导入jackson 依赖，他就提供jackson2jsonRedisSerializer 这种序列化对象

我们看下redisautoconfiguraction 是如何配置默认的jskserializationredisSerializer 的

1.
   @Bean
2.
   @ConditionalOnMissingBean(name = "redisTemplate")
3.
   public RedisTemplate<Object, Object> redisTemplate(
4.
   RedisConnectionFactory redisConnectionFactory) throws UnknownHostException {
5.
   RedisTemplate<Object, Object> template = new RedisTemplate<>();
6.
   template.setConnectionFactory(redisConnectionFactory);
7.
   return template;
8.
   }

创建了一个redisTemplate 对象，然后给他封装了redisConnectionFactory工厂 ， redisTemplate 中的属性

	private @Nullable RedisSerializer<?> defaultSerializer;

默认会被赋值

1.

2.
   if (defaultSerializer == null) {
3.

4.
   defaultSerializer = new JdkSerializationRedisSerializer(
5.
   classLoader != null ? classLoader : this.getClass().getClassLoader());
6.
   }

但是如果我们赋值进去，他就使用了我们自己定义的序列化方式

看代码

1.
   @Bean
2.
   public RedisTemplate<Object, Employee> redisTemplate(
3.
   RedisConnectionFactory redisConnectionFactory) throws UnknownHostException {
4.
   RedisTemplate<Object, Employee> template = new RedisTemplate<>();
5.
   template.setConnectionFactory(redisConnectionFactory);
6.
   Jackson2JsonRedisSerializer json = new Jackson2JsonRedisSerializer<Employee>(Employee.class);
7.
   template.setDefaultSerializer(json);
8.
   return template;
9.
   }

这样我们来运行序列化

1.
   Employee emp = employeeMapper.getEmpById(1);
2.
   redisTemplate.opsForValue().set("object",emp);
3.
   Object object = redisTemplate.opsForValue().get("object");
4.
   System.out.println(object);

employee对象就被一json的方式序列化了

缓存原理

如果我们不适用redis 他默认是用的是一个ConcurrentMapCacheManager ，使用的是SimpleCacheConfiguration configuration 类

先看CacheAutoConfiguration

1.
   /**
2.
   * {@link ImportSelector} to add {@link CacheType} configuration classes.
3.
   */
4.
   static class CacheConfigurationImportSelector implements ImportSelector {
5.

6.
   @Override
7.
   public String[] selectImports(AnnotationMetadata importingClassMetadata) {
8.
   CacheType[] types = CacheType.values();
9.
   String[] imports = new String[types.length];
10.
    for (int i = 0; i < types.length; i++) {
11.
    imports[i] = CacheConfigurations.getConfigurationClass(types[i]);
12.
    }
13.
    return imports;
14.
    }
15.

16.
    }

1.
   public static String getConfigurationClass(CacheType cacheType) {
2.
   Class<?> configurationClass = MAPPINGS.get(cacheType);
3.
   Assert.state(configurationClass != null, () -> "Unknown cache type " + cacheType);
4.
   return configurationClass.getName();
5.
   }

1.
   static {
2.
   Map<CacheType, Class<?>> mappings = new EnumMap<>(CacheType.class);
3.
   mappings.put(CacheType.GENERIC, GenericCacheConfiguration.class);
4.
   mappings.put(CacheType.EHCACHE, EhCacheCacheConfiguration.class);
5.
   mappings.put(CacheType.HAZELCAST, HazelcastCacheConfiguration.class);
6.
   mappings.put(CacheType.INFINISPAN, InfinispanCacheConfiguration.class);
7.
   mappings.put(CacheType.JCACHE, JCacheCacheConfiguration.class);
8.
   mappings.put(CacheType.COUCHBASE, CouchbaseCacheConfiguration.class);
9.
   mappings.put(CacheType.REDIS, RedisCacheConfiguration.class);
10.
    mappings.put(CacheType.CAFFEINE, CaffeineCacheConfiguration.class);
11.
    mappings.put(CacheType.SIMPLE, SimpleCacheConfiguration.class);
12.
    mappings.put(CacheType.NONE, NoOpCacheConfiguration.class);
13.
    MAPPINGS = Collections.unmodifiableMap(mappings);
14.
    }

这就是java 所有的缓存配置，默认是simpleCacheConfiguration 为什么我们导入了redis starter   就使用了 redis ？ 我们看下启动日志

1.
   Negative matches:
2.
   -----------------
3.

4.
   ActiveMQAutoConfiguration:
5.
   Did not match:
6.
   - @ConditionalOnClass did not find required classes 'javax.jms.ConnectionFactory', 'org.apache.activemq.ActiveMQConnectionFactory' (OnClassCondition)
7.

8.
   AopAutoConfiguration:
9.
   Did not match:
10.
    - @ConditionalOnClass did not find required classes 'org.aspectj.lang.annotation.Aspect', 'org.aspectj.lang.reflect.Advice', 'org.aspectj.weaver.AnnotatedElement' (OnClassCondition)
11.

12.
    ArtemisAutoConfiguration:
13.
    Did not match:
14.
    - @ConditionalOnClass did not find required classes 'javax.jms.ConnectionFactory', 'org.apache.activemq.artemis.jms.client.ActiveMQConnectionFactory' (OnClassCondition)
15.

16.
    BatchAutoConfiguration:
17.
    Did not match:
18.
    - @ConditionalOnClass did not find required class 'org.springframework.batch.core.launch.JobLauncher' (OnClassCondition)
19.

20.
    CacheAutoConfiguration.CacheManagerJpaDependencyConfiguration:
21.
    Did not match:
22.
    - @ConditionalOnClass did not find required class 'org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean' (OnClassCondition)
23.

24.
    CaffeineCacheConfiguration:
25.
    Did not match:
26.
    - @ConditionalOnClass did not find required class 'com.github.benmanes.caffeine.cache.Caffeine' (OnClassCondition)
27.

28.
    CassandraAutoConfiguration:
29.
    Did not match:
30.
    - @ConditionalOnClass did not find required class 'com.datastax.driver.core.Cluster' (OnClassCondition)
31.

32.
    CassandraDataAutoConfiguration:
33.
    Did not match:
34.
    - @ConditionalOnClass did not find required classes 'com.datastax.driver.core.Cluster', 'org.springframework.data.cassandra.core.CassandraAdminOperations' (OnClassCondition)
35.

36.
    CassandraReactiveDataAutoConfiguration:
37.
    Did not match:
38.
    - @ConditionalOnClass did not find required classes 'com.datastax.driver.core.Cluster', 'org.springframework.data.cassandra.core.ReactiveCassandraTemplate' (OnClassCondition)
39.

40.
    CassandraReactiveRepositoriesAutoConfiguration:
41.
    Did not match:
42.
    - @ConditionalOnClass did not find required classes 'org.springframework.data.cassandra.ReactiveSession', 'org.springframework.data.cassandra.repository.ReactiveCassandraRepository' (OnClassCondition)
43.

44.
    CassandraRepositoriesAutoConfiguration:
45.
    Did not match:
46.
    - @ConditionalOnClass did not find required classes 'com.datastax.driver.core.Session', 'org.springframework.data.cassandra.repository.CassandraRepository' (OnClassCondition)
47.

48.
    CloudAutoConfiguration:
49.
    Did not match:
50.
    - @ConditionalOnClass did not find required class 'org.springframework.cloud.config.java.CloudScanConfiguration' (OnClassCondition)
51.

52.
    CouchbaseAutoConfiguration:
53.
    Did not match:
54.
    - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.CouchbaseBucket', 'com.couchbase.client.java.Cluster' (OnClassCondition)
55.

56.
    CouchbaseCacheConfiguration:
57.
    Did not match:
58.
    - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.Bucket', 'com.couchbase.client.spring.cache.CouchbaseCacheManager' (OnClassCondition)
59.

60.
    CouchbaseDataAutoConfiguration:
61.
    Did not match:
62.
    - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.Bucket', 'org.springframework.data.couchbase.repository.CouchbaseRepository' (OnClassCondition)
63.

64.
    CouchbaseReactiveDataAutoConfiguration:
65.
    Did not match:
66.
    - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.Bucket', 'org.springframework.data.couchbase.repository.ReactiveCouchbaseRepository' (OnClassCondition)
67.

68.
    CouchbaseReactiveRepositoriesAutoConfiguration:
69.
    Did not match:
70.
    - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.Bucket', 'org.springframework.data.couchbase.repository.ReactiveCouchbaseRepository' (OnClassCondition)
71.

72.
    CouchbaseRepositoriesAutoConfiguration:
73.
    Did not match:
74.
    - @ConditionalOnClass did not find required classes 'com.couchbase.client.java.Bucket', 'org.springframework.data.couchbase.repository.CouchbaseRepository' (OnClassCondition)
75.

76.
    DataSourceAutoConfiguration.EmbeddedDatabaseConfiguration:
77.
    Did not match:
78.
    - EmbeddedDataSource found supported pooled data source (DataSourceAutoConfiguration.EmbeddedDatabaseCondition)
79.

80.
    DataSourceConfiguration.Dbcp2:
81.
    Did not match:
82.
    - @ConditionalOnClass did not find required class 'org.apache.commons.dbcp2.BasicDataSource' (OnClassCondition)
83.

84.
    DataSourceConfiguration.Generic:
85.
    Did not match:
86.
    - @ConditionalOnProperty (spring.datasource.type) did not find property 'spring.datasource.type' (OnPropertyCondition)
87.

88.
    DataSourceConfiguration.Tomcat:
89.
    Did not match:
90.
    - @ConditionalOnClass did not find required class 'org.apache.tomcat.jdbc.pool.DataSource' (OnClassCondition)
91.

92.
    DataSourceJmxConfiguration.TomcatDataSourceJmxConfiguration:
93.
    Did not match:
94.
    - @ConditionalOnClass did not find required class 'org.apache.tomcat.jdbc.pool.DataSourceProxy' (OnClassCondition)
95.

96.
    DataSourcePoolMetadataProvidersConfiguration.CommonsDbcp2PoolDataSourceMetadataProviderConfiguration:
97.
    Did not match:
98.
    - @ConditionalOnClass did not find required class 'org.apache.commons.dbcp2.BasicDataSource' (OnClassCondition)
99.

100.
     DataSourcePoolMetadataProvidersConfiguration.TomcatDataSourcePoolMetadataProviderConfiguration:
101.
     Did not match:
102.
     - @ConditionalOnClass did not find required class 'org.apache.tomcat.jdbc.pool.DataSource' (OnClassCondition)
103.

104.
     DevToolsDataSourceAutoConfiguration.DatabaseShutdownExecutorJpaDependencyConfiguration:
105.
     Did not match:
106.
     - @ConditionalOnClass did not find required class 'org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean' (OnClassCondition)
107.

108.
     DispatcherServletAutoConfiguration.DispatcherServletConfiguration#multipartResolver:
109.
     Did not match:
110.
     - @ConditionalOnBean (types: org.springframework.web.multipart.MultipartResolver; SearchStrategy: all) did not find any beans of type org.springframework.web.multipart.MultipartResolver (OnBeanCondition)
111.

112.
     EhCacheCacheConfiguration:
113.
     Did not match:
114.
     - @ConditionalOnClass did not find required class 'net.sf.ehcache.Cache' (OnClassCondition)
115.

116.
     ElasticsearchAutoConfiguration:
117.
     Did not match:
118.
     - @ConditionalOnClass did not find required classes 'org.elasticsearch.client.Client', 'org.springframework.data.elasticsearch.client.TransportClientFactoryBean' (OnClassCondition)
119.

120.
     ElasticsearchDataAutoConfiguration:
121.
     Did not match:
122.
     - @ConditionalOnClass did not find required classes 'org.elasticsearch.client.Client', 'org.springframework.data.elasticsearch.core.ElasticsearchTemplate' (OnClassCondition)
123.

124.
     ElasticsearchRepositoriesAutoConfiguration:
125.
     Did not match:
126.
     - @ConditionalOnClass did not find required classes 'org.elasticsearch.client.Client', 'org.springframework.data.elasticsearch.repository.ElasticsearchRepository' (OnClassCondition)
127.

128.
     EmbeddedLdapAutoConfiguration:
129.
     Did not match:
130.
     - @ConditionalOnClass did not find required class 'com.unboundid.ldap.listener.InMemoryDirectoryServer' (OnClassCondition)
131.

132.
     EmbeddedMongoAutoConfiguration:
133.
     Did not match:
134.
     - @ConditionalOnClass did not find required classes 'com.mongodb.MongoClient', 'de.flapdoodle.embed.mongo.MongodStarter' (OnClassCondition)
135.

136.
     EmbeddedWebServerFactoryCustomizerAutoConfiguration.JettyWebServerFactoryCustomizerConfiguration:
137.
     Did not match:
138.
     - @ConditionalOnClass did not find required classes 'org.eclipse.jetty.server.Server', 'org.eclipse.jetty.util.Loader', 'org.eclipse.jetty.webapp.WebAppContext' (OnClassCondition)
139.

140.
     EmbeddedWebServerFactoryCustomizerAutoConfiguration.UndertowWebServerFactoryCustomizerConfiguration:
141.
     Did not match:
142.
     - @ConditionalOnClass did not find required classes 'io.undertow.Undertow', 'org.xnio.SslClientAuthMode' (OnClassCondition)
143.

144.
     ErrorWebFluxAutoConfiguration:
145.
     Did not match:
146.
     - @ConditionalOnClass did not find required class 'org.springframework.web.reactive.config.WebFluxConfigurer' (OnClassCondition)
147.

148.
     FlywayAutoConfiguration:
149.
     Did not match:
150.
     - @ConditionalOnClass did not find required class 'org.flywaydb.core.Flyway' (OnClassCondition)
151.

152.
     FreeMarkerAutoConfiguration:
153.
     Did not match:
154.
     - @ConditionalOnClass did not find required class 'freemarker.template.Configuration' (OnClassCondition)
155.

156.
     GenericCacheConfiguration:
157.
     Did not match:
158.
     - @ConditionalOnBean (types: org.springframework.cache.Cache; SearchStrategy: all) did not find any beans of type org.springframework.cache.Cache (OnBeanCondition)
159.
     Matched:
160.
     - Cache org.springframework.boot.autoconfigure.cache.GenericCacheConfiguration automatic cache type (CacheCondition)
161.

162.
     GroovyTemplateAutoConfiguration:
163.
     Did not match:
164.
     - @ConditionalOnClass did not find required class 'groovy.text.markup.MarkupTemplateEngine' (OnClassCondition)
165.

166.
     GsonAutoConfiguration:
167.
     Did not match:
168.
     - @ConditionalOnClass did not find required class 'com.google.gson.Gson' (OnClassCondition)
169.

170.
     GsonHttpMessageConvertersConfiguration:
171.
     Did not match:
172.
     - @ConditionalOnClass did not find required class 'com.google.gson.Gson' (OnClassCondition)
173.

174.
     H2ConsoleAutoConfiguration:
175.
     Did not match:
176.
     - @ConditionalOnClass did not find required class 'org.h2.server.web.WebServlet' (OnClassCondition)
177.

178.
     HazelcastAutoConfiguration:
179.
     Did not match:
180.
     - @ConditionalOnClass did not find required class 'com.hazelcast.core.HazelcastInstance' (OnClassCondition)
181.

182.
     HazelcastCacheConfiguration:
183.
     Did not match:
184.
     - @ConditionalOnClass did not find required classes 'com.hazelcast.core.HazelcastInstance', 'com.hazelcast.spring.cache.HazelcastCacheManager' (OnClassCondition)
185.

186.
     HazelcastJpaDependencyAutoConfiguration:
187.
     Did not match:
188.
     - @ConditionalOnClass did not find required classes 'com.hazelcast.core.HazelcastInstance', 'org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean' (OnClassCondition)
189.

190.
     HibernateJpaAutoConfiguration:
191.
     Did not match:
192.
     - @ConditionalOnClass did not find required classes 'org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean', 'javax.persistence.EntityManager' (OnClassCondition)
193.

194.
     HttpHandlerAutoConfiguration:
195.
     Did not match:
196.
     - @ConditionalOnClass did not find required class 'org.springframework.web.reactive.DispatcherHandler' (OnClassCondition)
197.

198.
     HypermediaAutoConfiguration:
199.
     Did not match:
200.
     - @ConditionalOnClass did not find required classes 'org.springframework.hateoas.Resource', 'org.springframework.plugin.core.Plugin' (OnClassCondition)
201.

202.
     InfinispanCacheConfiguration:
203.
     Did not match:
204.
     - @ConditionalOnClass did not find required class 'org.infinispan.spring.provider.SpringEmbeddedCacheManager' (OnClassCondition)
205.

206.
     InfluxDbAutoConfiguration:
207.
     Did not match:
208.
     - @ConditionalOnClass did not find required class 'org.influxdb.InfluxDB' (OnClassCondition)
209.

210.
     IntegrationAutoConfiguration:
211.
     Did not match:
212.
     - @ConditionalOnClass did not find required class 'org.springframework.integration.config.EnableIntegration' (OnClassCondition)
213.

214.
     JCacheCacheConfiguration:
215.
     Did not match:
216.
     - @ConditionalOnClass did not find required class 'javax.cache.Caching' (OnClassCondition)
217.

218.
     JacksonAutoConfiguration.JodaDateTimeJacksonConfiguration:
219.
     Did not match:
220.
     - @ConditionalOnClass did not find required classes 'org.joda.time.DateTime', 'com.fasterxml.jackson.datatype.joda.ser.DateTimeSerializer', 'com.fasterxml.jackson.datatype.joda.cfg.JacksonJodaDateFormat' (OnClassCondition)
221.

222.
     JacksonHttpMessageConvertersConfiguration.MappingJackson2XmlHttpMessageConverterConfiguration:
223.
     Did not match:
224.
     - @ConditionalOnClass did not find required class 'com.fasterxml.jackson.dataformat.xml.XmlMapper' (OnClassCondition)
225.

226.
     JedisConnectionConfiguration:
227.
     Did not match:
228.
     - @ConditionalOnClass did not find required classes 'org.apache.commons.pool2.impl.GenericObjectPool', 'redis.clients.jedis.Jedis' (OnClassCondition)
229.

230.
     JerseyAutoConfiguration:
231.
     Did not match:
232.
     - @ConditionalOnClass did not find required class 'org.glassfish.jersey.server.spring.SpringComponentProvider' (OnClassCondition)
233.

234.
     JestAutoConfiguration:
235.
     Did not match:
236.
     - @ConditionalOnClass did not find required class 'io.searchbox.client.JestClient' (OnClassCondition)
237.

238.
     JmsAutoConfiguration:
239.
     Did not match:
240.
     - @ConditionalOnClass did not find required classes 'javax.jms.Message', 'org.springframework.jms.core.JmsTemplate' (OnClassCondition)
241.

242.
     JndiConnectionFactoryAutoConfiguration:
243.
     Did not match:
244.
     - @ConditionalOnClass did not find required class 'org.springframework.jms.core.JmsTemplate' (OnClassCondition)
245.

246.
     JndiDataSourceAutoConfiguration:
247.
     Did not match:
248.
     - @ConditionalOnProperty (spring.datasource.jndi-name) did not find property 'jndi-name' (OnPropertyCondition)
249.
     Matched:
250.
     - @ConditionalOnClass found required classes 'javax.sql.DataSource', 'org.springframework.jdbc.datasource.embedded.EmbeddedDatabaseType'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
251.

252.
     JooqAutoConfiguration:
253.
     Did not match:
254.
     - @ConditionalOnClass did not find required class 'org.jooq.DSLContext' (OnClassCondition)
255.

256.
     JpaRepositoriesAutoConfiguration:
257.
     Did not match:
258.
     - @ConditionalOnClass did not find required class 'org.springframework.data.jpa.repository.JpaRepository' (OnClassCondition)
259.

260.
     JsonbAutoConfiguration:
261.
     Did not match:
262.
     - @ConditionalOnClass did not find required class 'javax.json.bind.Jsonb' (OnClassCondition)
263.

264.
     JsonbHttpMessageConvertersConfiguration:
265.
     Did not match:
266.
     - @ConditionalOnClass did not find required class 'javax.json.bind.Jsonb' (OnClassCondition)
267.

268.
     JtaAutoConfiguration:
269.
     Did not match:
270.
     - @ConditionalOnClass did not find required class 'javax.transaction.Transaction' (OnClassCondition)
271.

272.
     KafkaAutoConfiguration:
273.
     Did not match:
274.
     - @ConditionalOnClass did not find required class 'org.springframework.kafka.core.KafkaTemplate' (OnClassCondition)
275.

276.
     LdapAutoConfiguration:
277.
     Did not match:
278.
     - @ConditionalOnClass did not find required class 'org.springframework.ldap.core.ContextSource' (OnClassCondition)
279.

280.
     LdapDataAutoConfiguration:
281.
     Did not match:
282.
     - @ConditionalOnClass did not find required class 'org.springframework.data.ldap.repository.LdapRepository' (OnClassCondition)
283.

284.
     LdapRepositoriesAutoConfiguration:
285.
     Did not match:
286.
     - @ConditionalOnClass did not find required class 'org.springframework.data.ldap.repository.LdapRepository' (OnClassCondition)
287.

288.
     LiquibaseAutoConfiguration:
289.
     Did not match:
290.
     - @ConditionalOnClass did not find required classes 'liquibase.integration.spring.SpringLiquibase', 'liquibase.change.DatabaseChange' (OnClassCondition)
291.

292.
     MailSenderAutoConfiguration:
293.
     Did not match:
294.
     - @ConditionalOnClass did not find required class 'javax.mail.internet.MimeMessage' (OnClassCondition)
295.

296.
     MailSenderValidatorAutoConfiguration:
297.
     Did not match:
298.
     - @ConditionalOnProperty (spring.mail.test-connection) did not find property 'test-connection' (OnPropertyCondition)
299.

300.
     MessageSourceAutoConfiguration:
301.
     Did not match:
302.
     - ResourceBundle did not find bundle with basename messages (MessageSourceAutoConfiguration.ResourceBundleCondition)
303.

304.
     MongoAutoConfiguration:
305.
     Did not match:
306.
     - @ConditionalOnClass did not find required class 'com.mongodb.MongoClient' (OnClassCondition)
307.

308.
     MongoDataAutoConfiguration:
309.
     Did not match:
310.
     - @ConditionalOnClass did not find required classes 'com.mongodb.MongoClient', 'org.springframework.data.mongodb.core.MongoTemplate' (OnClassCondition)
311.

312.
     MongoReactiveAutoConfiguration:
313.
     Did not match:
314.
     - @ConditionalOnClass did not find required class 'com.mongodb.reactivestreams.client.MongoClient' (OnClassCondition)
315.

316.
     MongoReactiveDataAutoConfiguration:
317.
     Did not match:
318.
     - @ConditionalOnClass did not find required classes 'com.mongodb.reactivestreams.client.MongoClient', 'org.springframework.data.mongodb.core.ReactiveMongoTemplate' (OnClassCondition)
319.

320.
     MongoReactiveRepositoriesAutoConfiguration:
321.
     Did not match:
322.
     - @ConditionalOnClass did not find required classes 'com.mongodb.reactivestreams.client.MongoClient', 'org.springframework.data.mongodb.repository.ReactiveMongoRepository' (OnClassCondition)
323.

324.
     MongoRepositoriesAutoConfiguration:
325.
     Did not match:
326.
     - @ConditionalOnClass did not find required classes 'com.mongodb.MongoClient', 'org.springframework.data.mongodb.repository.MongoRepository' (OnClassCondition)
327.

328.
     MustacheAutoConfiguration:
329.
     Did not match:
330.
     - @ConditionalOnClass did not find required class 'com.samskivert.mustache.Mustache' (OnClassCondition)
331.

332.
     MybatisAutoConfiguration.MapperScannerRegistrarNotFoundConfiguration:
333.
     Did not match:
334.
     - @ConditionalOnMissingBean (types: org.mybatis.spring.mapper.MapperFactoryBean; SearchStrategy: all) found beans of type 'org.mybatis.spring.mapper.MapperFactoryBean' &departmentMapper, &employeeMapper (OnBeanCondition)
335.

336.
     Neo4jDataAutoConfiguration:
337.
     Did not match:
338.
     - @ConditionalOnClass did not find required classes 'org.neo4j.ogm.session.SessionFactory', 'org.springframework.data.neo4j.transaction.Neo4jTransactionManager' (OnClassCondition)
339.

340.
     Neo4jRepositoriesAutoConfiguration:
341.
     Did not match:
342.
     - @ConditionalOnClass did not find required classes 'org.neo4j.ogm.session.Neo4jSession', 'org.springframework.data.neo4j.repository.Neo4jRepository' (OnClassCondition)
343.

344.
     NoOpCacheConfiguration:
345.
     Did not match:
346.
     - @ConditionalOnMissingBean (types: org.springframework.cache.CacheManager; SearchStrategy: all) found beans of type 'org.springframework.cache.CacheManager' cacheManager (OnBeanCondition)
347.
     Matched:
348.
     - Cache org.springframework.boot.autoconfigure.cache.NoOpCacheConfiguration automatic cache type (CacheCondition)
349.

350.
     OAuth2ClientAutoConfiguration:
351.
     Did not match:
352.
     - @ConditionalOnClass did not find required classes 'org.springframework.security.config.annotation.web.configuration.EnableWebSecurity', 'org.springframework.security.oauth2.client.registration.ClientRegistration' (OnClassCondition)
353.

354.
     ProjectInfoAutoConfiguration#buildProperties:
355.
     Did not match:
356.
     - @ConditionalOnResource did not find resource '${spring.info.build.location:classpath:META-INF/build-info.properties}' (OnResourceCondition)
357.

358.
     ProjectInfoAutoConfiguration#gitProperties:
359.
     Did not match:
360.
     - GitResource did not find git info at classpath:git.properties (ProjectInfoAutoConfiguration.GitResourceAvailableCondition)
361.

362.
     QuartzAutoConfiguration:
363.
     Did not match:
364.
     - @ConditionalOnClass did not find required class 'org.quartz.Scheduler' (OnClassCondition)
365.

366.
     RabbitAutoConfiguration:
367.
     Did not match:
368.
     - @ConditionalOnClass did not find required classes 'org.springframework.amqp.rabbit.core.RabbitTemplate', 'com.rabbitmq.client.Channel' (OnClassCondition)
369.

370.
     ReactiveUserDetailsServiceAutoConfiguration:
371.
     Did not match:
372.
     - @ConditionalOnClass did not find required class 'org.springframework.security.authentication.ReactiveAuthenticationManager' (OnClassCondition)
373.

374.
     ReactiveWebServerFactoryAutoConfiguration:
375.
     Did not match:
376.
     - not a reactive web application (OnWebApplicationCondition)
377.
     Matched:
378.
     - @ConditionalOnClass found required class 'org.springframework.http.ReactiveHttpInputMessage'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
379.

380.
     RedisAutoConfiguration#redisTemplate:
381.
     Did not match:
382.
     - @ConditionalOnMissingBean (names: redisTemplate; SearchStrategy: all) found beans named redisTemplate (OnBeanCondition)
383.

384.
     RemoteDevToolsAutoConfiguration:
385.
     Did not match:
386.
     - @ConditionalOnProperty (spring.devtools.remote.secret) did not find property 'secret' (OnPropertyCondition)
387.
     Matched:
388.
     - @ConditionalOnClass found required classes 'javax.servlet.Filter', 'org.springframework.http.server.ServerHttpRequest'; @ConditionalOnMissingClass did not find unwanted class (OnClassCondition)
389.

390.
     RepositoryRestMvcAutoConfiguration:
391.
     Did not match:
392.
     - @ConditionalOnClass did not find required class 'org.springframework.data.rest.webmvc.config.RepositoryRestMvcConfiguration' (OnClassCondition)
393.

394.
     SecurityAutoConfiguration:
395.
     Did not match:
396.
     - @ConditionalOnClass did not find required class 'org.springframework.security.authentication.DefaultAuthenticationEventPublisher' (OnClassCondition)
397.

398.
     SecurityFilterAutoConfiguration:
399.
     Did not match:
400.
     - @ConditionalOnClass did not find required classes 'org.springframework.security.web.context.AbstractSecurityWebApplicationInitializer', 'org.springframework.security.config.http.SessionCreationPolicy' (OnClassCondition)
401.

402.
     SendGridAutoConfiguration:
403.
     Did not match:
404.
     - @ConditionalOnClass did not find required class 'com.sendgrid.SendGrid' (OnClassCondition)
405.

406.
     ServletWebServerFactoryConfiguration.EmbeddedJetty:
407.
     Did not match:
408.
     - @ConditionalOnClass did not find required classes 'org.eclipse.jetty.server.Server', 'org.eclipse.jetty.util.Loader', 'org.eclipse.jetty.webapp.WebAppContext' (OnClassCondition)
409.

410.
     ServletWebServerFactoryConfiguration.EmbeddedUndertow:
411.
     Did not match:
412.
     - @ConditionalOnClass did not find required classes 'io.undertow.Undertow', 'org.xnio.SslClientAuthMode' (OnClassCondition)
413.

414.
     SessionAutoConfiguration:
415.
     Did not match:
416.
     - @ConditionalOnClass did not find required class 'org.springframework.session.Session' (OnClassCondition)
417.

418.
     SimpleCacheConfiguration:
419.
     Did not match:
420.
     - @ConditionalOnMissingBean (types: org.springframework.cache.CacheManager; SearchStrategy: all) found beans of type 'org.springframework.cache.CacheManager' cacheManager (OnBeanCondition)
421.
     Matched:
422.
     - Cache org.springframework.boot.autoconfigure.cache.SimpleCacheConfiguration automatic cache type (CacheCondition)

simpleCacheConfiguration 是被排除的为什么？

1.
   @Configuration
2.
   @ConditionalOnMissingBean(CacheManager.class)
3.
   @Conditional(CacheCondition.class)
4.
   class SimpleCacheConfiguration {

@ConditionaLOnMissingBean 这个注解，

意思说看看容器中有没有CacheManager 这种类型的组件，如果有这个类就GG 不会被加载容器中 ，

之前说过

1.
   static {
2.
   Map<CacheType, Class<?>> mappings = new EnumMap<>(CacheType.class);
3.
   mappings.put(CacheType.GENERIC, GenericCacheConfiguration.class);
4.
   mappings.put(CacheType.EHCACHE, EhCacheCacheConfiguration.class);
5.
   mappings.put(CacheType.HAZELCAST, HazelcastCacheConfiguration.class);
6.
   mappings.put(CacheType.INFINISPAN, InfinispanCacheConfiguration.class);
7.
   mappings.put(CacheType.JCACHE, JCacheCacheConfiguration.class);
8.
   mappings.put(CacheType.COUCHBASE, CouchbaseCacheConfiguration.class);
9.
   mappings.put(CacheType.REDIS, RedisCacheConfiguration.class);
10.
    mappings.put(CacheType.CAFFEINE, CaffeineCacheConfiguration.class);
11.
    mappings.put(CacheType.SIMPLE, SimpleCacheConfiguration.class);
12.
    mappings.put(CacheType.NONE, NoOpCacheConfiguration.class);
13.
    MAPPINGS = Collections.unmodifiableMap(mappings);
14.
    }

这些Configuraction 都是按照顺序加载的，我们看到redisCacheConfiguration 比SimpleCacheConfiguration 的顺序级别高，因此当加载到simpleCacheConfiguration 已经通过redisCacheConfiuration 创建了 RedisCacheManager  ，因此不会创建了simpleCacheConfiguraction

redisCacheManager 干什么？

他是通过redisCache来完成缓存的

1.
   protected RedisCache createRedisCache(String name, @Nullable RedisCacheConfiguration cacheConfig) {
2.
   return new RedisCache(name, cacheWriter, cacheConfig != null ? cacheConfig : defaultCacheConfig);
3.
   }

redisCache通过操作redis 来进行缓存数据

默认保存数据是一k-v的形式存储的，都是object，利用序列化保存

如何存为json ?

配置一个自定义个rediscacheManger

1.
   package com.zzq.springboot01cache.config;
2.

3.
   import com.sun.org.apache.bcel.internal.generic.RET;
4.
   import com.sun.org.apache.bcel.internal.generic.RETURN;
5.
   import com.zzq.springboot01cache.entity.Department;
6.
   import com.zzq.springboot01cache.entity.Employee;
7.
   import org.springframework.boot.autoconfigure.cache.CacheManagerCustomizer;
8.
   import org.springframework.cache.CacheManager;
9.
   import org.springframework.cache.annotation.CachingConfigurerSupport;
10.

11.
    import org.springframework.cache.interceptor.KeyGenerator;
12.
    import org.springframework.context.annotation.Bean;
13.
    import org.springframework.context.annotation.Configuration;
14.
    import org.springframework.core.io.ResourceLoader;
15.
    import org.springframework.data.redis.cache.RedisCacheConfiguration;
16.
    import org.springframework.data.redis.cache.RedisCacheManager;
17.
    import org.springframework.data.redis.connection.RedisConnectionFactory;
18.
    import org.springframework.data.redis.core.RedisTemplate;
19.
    import org.springframework.data.redis.serializer.GenericJackson2JsonRedisSerializer;
20.
    import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
21.
    import org.springframework.data.redis.serializer.RedisSerializationContext;
22.
    import org.springframework.data.redis.serializer.StringRedisSerializer;
23.

24.
    import java.net.UnknownHostException;
25.
    import java.time.Duration;
26.
    import java.util.Arrays;
27.

28.

29.
    @Configuration
30.
    public class MyredisConfig {
31.

32.
    @Bean("myKeyGenerator")
33.
    public KeyGenerator keyGenerator(){
34.
    return (target,method,params)->{
35.
    return method.getName()+"["+ Arrays.asList(params)+"]";
36.
    };
37.
    }
38.

39.
    @Bean
40.
    public RedisTemplate<Object, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory) {
41.
    RedisTemplate<Object, Object> redisTemplate = new RedisTemplate<>();
42.
    redisTemplate.setConnectionFactory(redisConnectionFactory);
43.
    // key序列化
44.
    redisTemplate.setKeySerializer(new StringRedisSerializer());
45.
    // value序列化
46.
    redisTemplate.setValueSerializer(new Jackson2JsonRedisSerializer(Object.class));
47.
    redisTemplate.afterPropertiesSet();
48.
    System.out.println("RedisTemplate loading.............");
49.
    return redisTemplate;
50.
    }
51.

52.

53.
    @Bean
54.
    public CacheManager cacheManager(RedisConnectionFactory factory) {
55.
    RedisCacheConfiguration cacheConfiguration =
56.
    RedisCacheConfiguration.defaultCacheConfig()
57.
    .entryTtl(Duration.ofDays(1))
58.
    .disableCachingNullValues()
59.
    .serializeValuesWith(RedisSerializationContext.SerializationPair.fromSerializer(new
60.
    GenericJackson2JsonRedisSerializer()));
61.
    return RedisCacheManager.builder(factory).cacheDefaults(cacheConfiguration).build();
62.
    }
63.

64.

65.

66.
    }

这个参考

rediscacheconfiguraction 写

1.

2.
   @Bean
3.
   public RedisCacheManager cacheManager(RedisConnectionFactory redisConnectionFactory,
4.
   ResourceLoader resourceLoader) {
5.
   RedisCacheManagerBuilder builder = RedisCacheManager
6.
   .builder(redisConnectionFactory)
7.
   .cacheDefaults(determineConfiguration(resourceLoader.getClassLoader()));
8.
   List<String> cacheNames = this.cacheProperties.getCacheNames();
9.
   if (!cacheNames.isEmpty()) {
10.
    builder.initialCacheNames(new LinkedHashSet<>(cacheNames));
11.
    }
12.
    return this.customizerInvoker.customize(builder.build());
13.
    }

转自：https://blog.csdn.net/qq_39148187/article/details/82469062
