SSM+easyUI(框架的搭建)

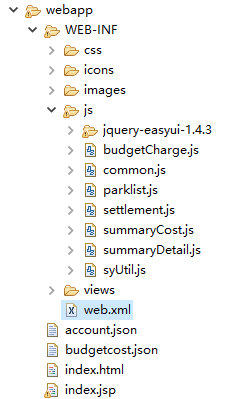

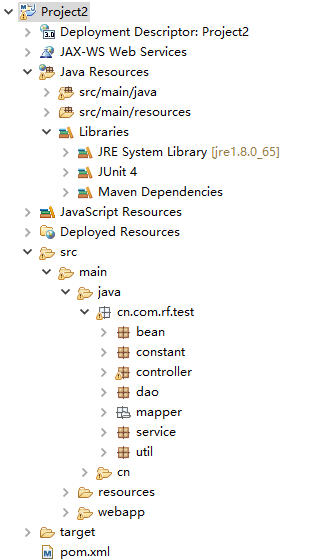

1.首先贴出我的项目结构:
2.maven 依赖所需要的jar包,从pom.xml中下载获得:
pom.xml中的依赖:

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>org.zsl.hnust</groupId>
    <artifactId>HNUST</artifactId>
    <packaging>war</packaging>
    <version>0.0.1-SNAPSHOT</version>
    <name>HNUST</name>
    <url>http://maven.apache.org</url>

    <properties>
        <!-- spring版本号 -->
        <spring.version>4.0.2.RELEASE</spring.version>
        <!-- mybatis版本号 -->
        <mybatis.version>3.2.6</mybatis.version>
        <!-- log4j日志文件管理包版本 -->
        <slf4j.version>1.7.7</slf4j.version>
        <log4j.version>1.2.17</log4j.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <!-- 表示开发的时候引入，发布的时候不会加载此包 -->
            <scope>test</scope>
        </dependency>
        <!-- spring核心包 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-oxm</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!-- mybatis核心包 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <!-- mybatis/spring包 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.2.2</version>
        </dependency>
        <!-- 导入java ee jar 包 -->
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-api</artifactId>
            <version>7.0</version>
        </dependency>
        <!-- 导入Mysql数据库链接jar包 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.30</version>
        </dependency>
        <!-- 导入dbcp的jar包，用来在applicationContext.xml中配置数据库 -->
        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>1.2.2</version>
        </dependency>
        <!-- JSTL标签类 -->
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>
        <!-- 日志文件管理包 -->
        <!-- log start -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>${log4j.version}</version>
        </dependency>


        <!-- 格式化对象，方便输出日志 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.1.41</version>
        </dependency>


        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>${slf4j.version}</version>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>${slf4j.version}</version>
        </dependency>
        <!-- log end -->
        <!-- 映入JSON -->
        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-mapper-asl</artifactId>
            <version>1.9.13</version>
        </dependency>
        <!-- 上传组件包 -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.4</version>
        </dependency>
        <dependency>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
            <version>1.9</version>
        </dependency>


    </dependencies>
    <build>
        <finalName>org.zsl.hnust</finalName>
    </build>
</project>

3.配置文件

3-1.jdbc(获得数据库连接):

driver=com.mysql.jdbc.Driver
url=jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=UTF-8
username=root
password=root

3-2.log4j(日志文件的配置):

log4j.rootLogger=INFO,Console,File

log4j.appender.Console=org.apache.log4j.ConsoleAppender

log4j.appender.Console.Target=System.out

log4j.appender.Console.layout = org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=[%c] - %m%n

log4j.appender.File = org.apache.log4j.RollingFileAppender

log4j.appender.File.File = logs/ssm.log

log4j.appender.File.MaxFileSize = 10MB

log4j.appender.File.Threshold = ALL
log4j.appender.File.layout = org.apache.log4j.PatternLayout
log4j.appender.File.layout.ConversionPattern =[%p] [%d{yyyy-MM-dd HH:mm:ss}][%c]%m%n

3-3.spring-mvc 配置文件(注解和资然文件的引入)

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
                        http://www.springframework.org/schema/context
                        http://www.springframework.org/schema/context/spring-context-3.1.xsd
                        http://www.springframework.org/schema/mvc
                        http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">
    <!-- 自动扫描该包，使SpringMVC认为包下用了@controller注解的类是控制器 -->
     <context:component-scan base-package="cn.com.rf.test.controller" />
    <!--引入资源文件  -->
      <mvc:default-servlet-handler/>
    <!-- 启用spring mvc 注解 -->
    <context:annotation-config />
    <!-- 默认的注解映射的支持 -->
    <mvc:annotation-driven />

    <!-- 引入资源文件 -->
    <mvc:resources location="/WEB-INF/js/" mapping="/js/**"/>
    <mvc:resources location="/WEB-INF/css/" mapping="/css/**"/>
    <mvc:resources location="/WEB-INF/images/" mapping="/images/**"/>
    <mvc:resources location="/WEB-INF/icons/" mapping="/icons/**"/>
    <mvc:resources location="/WEB-INF/js/" mapping="/js/**"/>
    <mvc:resources location="/WEB-INF/css/" mapping="/css/**"/>
    <mvc:resources location="/WEB-INF/images/" mapping="/images/**"/>
    <mvc:resources location="/WEB-INF/icons/" mapping="/icons/**"/>

    <!--避免IE执行AJAX时，返回JSON出现下载文件 -->
    <bean id="mappingJacksonHttpMessageConverter"
        class="org.springframework.http.converter.json.MappingJacksonHttpMessageConverter">
        <property name="supportedMediaTypes">
            <list>
                <value>text/html;charset=UTF-8</value>
            </list>
        </property>
    </bean>
    <!-- 启动SpringMVC的注解功能，完成请求和注解POJO的映射 -->
    <bean
        class="org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerAdapter">
        <property name="messageConverters">
            <list>
                <ref bean="mappingJacksonHttpMessageConverter" />   <!-- JSON转换器 -->
            </list>
        </property>
    </bean>

    <!-- 定义跳转的文件的前后缀 ，视图模式配置-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!-- 这里的配置我的理解是自动给后面action的方法return的字符串加上前缀和后缀，变成一个 可用的url地址 -->
        <property name="prefix" value="/WEB-INF/views/" />
        <property name="suffix" value=".jsp" /><!--可为空,方便实现自已的依据扩展名来选择视图解释类的逻辑  -->
    </bean>

    <!-- 配置文件上传，如果没有使用文件上传可以不用配置，当然如果不配，那么配置文件中也不必引入上传组件包 -->
    <bean id="multipartResolver"
        class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!-- 默认编码 -->
        <property name="defaultEncoding" value="utf-8" />
        <!-- 文件大小最大值 -->
        <property name="maxUploadSize" value="10485760000" />
        <!-- 内存中的最大值 -->
        <property name="maxInMemorySize" value="40960" />
    </bean>

</beans>

3-4.spring-mybatis(对数据库连接文件的引入以及对接口的加载):

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
                        http://www.springframework.org/schema/context
                        http://www.springframework.org/schema/context/spring-context-3.1.xsd
                        http://www.springframework.org/schema/mvc
                        http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">
    <!-- 自动扫描 -->
    <context:component-scan base-package="cn.com.rf.test" />
    <!-- 引入配置文件 -->
    <bean id="propertyConfigurer"
        class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
        <property name="location" value="classpath:jdbc.properties" />
    </bean>

    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
        destroy-method="close">
        <property name="driverClassName" value="${driver}" />
        <property name="url" value="${url}" />
        <property name="username" value="${username}" />
        <property name="password" value="${password}" />
        <!-- 初始化连接大小 -->
        <property name="initialSize" value="${initialSize}"></property>
        <!-- 连接池最大数量 -->
        <property name="maxActive" value="${maxActive}"></property>
        <!-- 连接池最大空闲 -->
        <property name="maxIdle" value="${maxIdle}"></property>
        <!-- 连接池最小空闲 -->
        <property name="minIdle" value="${minIdle}"></property>
        <!-- 获取连接最大等待时间 -->
        <property name="maxWait" value="${maxWait}"></property>
    </bean>

    <!-- spring和MyBatis完美整合，不需要mybatis的配置映射文件 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <!-- 自动扫描mapping.xml文件 -->
        <property name="mapperLocations" value="classpath:cn/com/rf/test/mapper/*.xml"></property>
    </bean>

    <!-- DAO接口所在包名，Spring会自动查找其下的类 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="cn.com.rf.test.dao" />
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
    </bean>

    <!-- (事务管理)transaction manager, use JtaTransactionManager for global tx -->
    <bean id="transactionManager"
        class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>

</beans>

4.web.xml文件(监听器,过滤器,拦截器,以及配置文件的引入)

<?xml version="1.0" encoding="UTF-8"?>
    <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns="http://java.sun.com/xml/ns/javaee"
        xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
        version="3.0">
        <display-name>Archetype Created Web Application</display-name>
     <!-- 避免引起项目冲突 -->
    <context-param>
    <param-name>webAppRootKey</param-name>
    <param-value>web.Project2.root</param-value>
  </context-param>
        <!-- Spring和mybatis的配置文件 -->
        <context-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-mybatis.xml</param-value>
        </context-param>
        <!-- 编码过滤器 -->
        <filter>
            <filter-name>encodingFilter</filter-name>
            <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
            <async-supported>true</async-supported>
            <init-param>
                <param-name>encoding</param-name>
                <param-value>UTF-8</param-value>
            </init-param>
        </filter>
        <filter-mapping>
            <filter-name>encodingFilter</filter-name>
            <url-pattern>/*</url-pattern>
        </filter-mapping>
        <!-- Spring监听器 -->
        <listener>
            <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
        </listener>
        <!-- 防止Spring内存溢出监听器 -->
        <listener>
            <listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
        </listener>

        <!-- Spring MVC servlet -->
        <servlet>
            <servlet-name>SpringMVC</servlet-name>
            <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
            <init-param>
                <param-name>contextConfigLocation</param-name>
                <param-value>classpath:spring-mvc.xml</param-value>
            </init-param>
            <load-on-startup>1</load-on-startup>
            <async-supported>true</async-supported>
        </servlet>
        <servlet-mapping>
            <servlet-name>SpringMVC</servlet-name>
            <!-- 此处可以可以配置成*.do，对应struts的后缀习惯 -->
            <url-pattern>/</url-pattern>
        </servlet-mapping>
     <welcome-file-list>
            <welcome-file>/index.jsp</welcome-file>
        </welcome-file-list>

    </web-app>

5.easyui(导入包放在webapp下面的js中,查看demo了解使用方法)

6.index.jsp应用easyui元素:

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/fmt" prefix="fmt"%>
<%
    String path = request.getContextPath();
    String basePath = request.getScheme() + "://" + request.getServerName() + ":" + request.getServerPort() + path + "/";
%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
    <title></title>
    <link rel="stylesheet" type="text/css" href="js/jquery-easyui-1.4.3/themes/default/easyui.css">
    <link rel="stylesheet" type="text/css" href="js/jquery-easyui-1.4.3/themes/icon.css">

    <script type="text/javascript" src="js/jquery-easyui-1.4.3/jquery.min.js"></script>
    <script type="text/javascript" src="js/jquery-easyui-1.4.3/jquery.easyui.min.js"></script>
    <script type="text/javascript" src="<%=basePath%>/js/jquery-easyui-1.4.3/locale/easyui-lang-zh_CN.js"></script>
    <script type="text/javascript">
        function login() {
            $("#loginForm").submit();
        }
    </script>
</head>
<div style="position:fixed;left:40%;top:30%;margin-left:width/2;margin-top:height/2;">
    <div class="easyui-panel" title="用户登录" style="400px;padding:30px 70px 20px 70px;">
        <form id="loginForm" action="login" class="ui-form" method="post">
            <div style="margin-bottom:10px">
                <input class="easyui-textbox" id="userName" name="userName" style="100%;height:40px;padding:12px" data-options="required:true,iconCls:'icon-man',iconWidth:38">
            </div>
            <div style="margin-bottom:20px">
                <input class="easyui-textbox" id="password" name="password" type="password" style="100%;height:40px;padding:12px" data-options="required:true,iconCls:'icon-lock',iconWidth:38">
            </div>
        <div style="margin-bottom:20px">
                <input type="checkbox" checked="checked" id="checked" name="checked">
                <span>记住用户</span>
            </div>
        </form>
        <div>
            <a class="easyui-linkbutton" data-options="iconCls:'icon-ok'" style="padding:5px 0px;100%;" onclick="login()">
                <span style="font-size:14px;">登录•</span>
            </a>
        </div>
    </div>
</div>
</html>
