  • Elasticsearch 聚合分析（Aggregation）

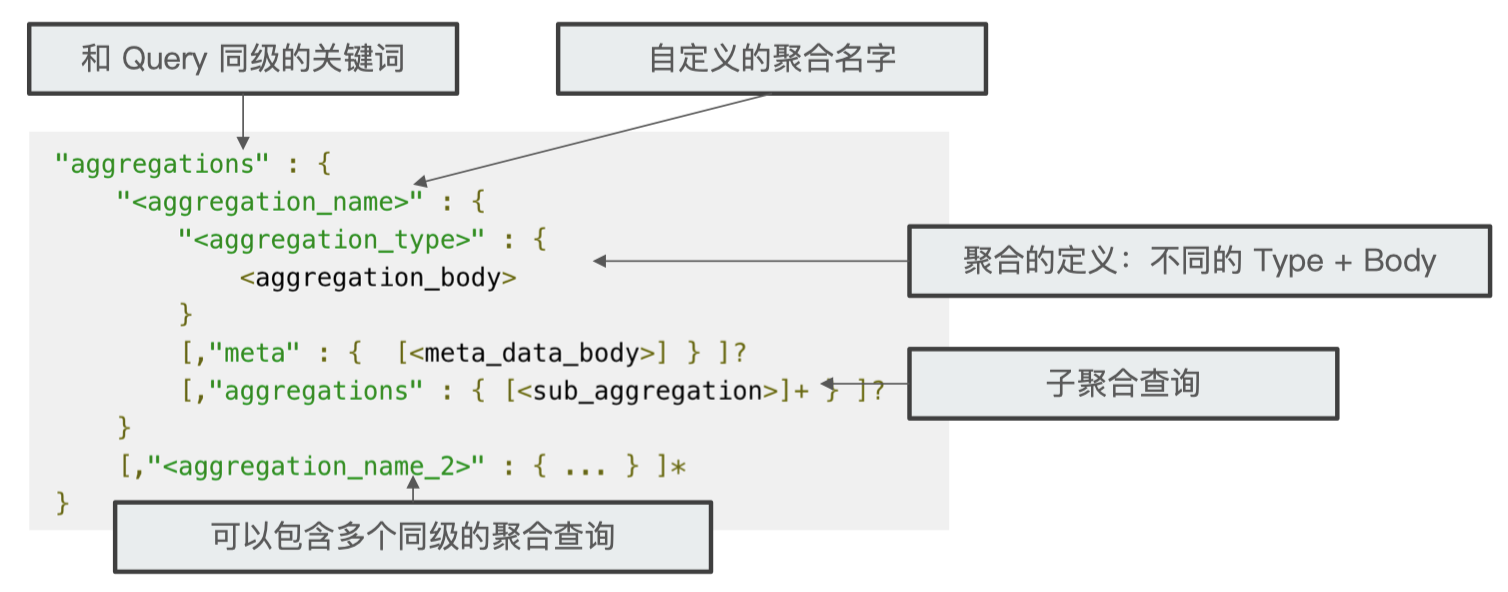

    Aggregation的语法

    Metric - 单值输出 & 多值输出

    Aggregation 属于 Search 的 一部分。一般情况下，建议将其 Size 指定为 0。以工资统计信息为例：

    工资统计信息

    先插入工资数据：

    DELETE /employees
PUT /employees/
{
  "mappings" : {
      "properties" : {
        "age" : {
          "type" : "integer"
        },
        "gender" : {
          "type" : "keyword"
        },
        "job" : {
          "type" : "text",
          "fields" : {
            "keyword" : {
              "type" : "keyword",
              "ignore_above" : 50
            }
          }
        },
        "name" : {
          "type" : "keyword"
        },
        "salary" : {
          "type" : "integer"
        }
      }
    }
}

PUT /employees/_bulk
{ "index" : {  "_id" : "1" } }
{ "name" : "Emma","age":32,"job":"Product Manager","gender":"female","salary":35000 }
{ "index" : {  "_id" : "2" } }
{ "name" : "Underwood","age":41,"job":"Dev Manager","gender":"male","salary": 50000}
{ "index" : {  "_id" : "3" } }
{ "name" : "Tran","age":25,"job":"Web Designer","gender":"male","salary":18000 }
{ "index" : {  "_id" : "4" } }
{ "name" : "Rivera","age":26,"job":"Web Designer","gender":"female","salary": 22000}
{ "index" : {  "_id" : "5" } }
{ "name" : "Rose","age":25,"job":"QA","gender":"female","salary":18000 }
{ "index" : {  "_id" : "6" } }
{ "name" : "Lucy","age":31,"job":"QA","gender":"female","salary": 25000}
{ "index" : {  "_id" : "7" } }
{ "name" : "Byrd","age":27,"job":"QA","gender":"male","salary":20000 }
{ "index" : {  "_id" : "8" } }
{ "name" : "Foster","age":27,"job":"Java Programmer","gender":"male","salary": 20000}
{ "index" : {  "_id" : "9" } }
{ "name" : "Gregory","age":32,"job":"Java Programmer","gender":"male","salary":22000 }
{ "index" : {  "_id" : "10" } }
{ "name" : "Bryant","age":20,"job":"Java Programmer","gender":"male","salary": 9000}
{ "index" : {  "_id" : "11" } }
{ "name" : "Jenny","age":36,"job":"Java Programmer","gender":"female","salary":38000 }
{ "index" : {  "_id" : "12" } }
{ "name" : "Mcdonald","age":31,"job":"Java Programmer","gender":"male","salary": 32000}
{ "index" : {  "_id" : "13" } }
{ "name" : "Jonthna","age":30,"job":"Java Programmer","gender":"female","salary":30000 }
{ "index" : {  "_id" : "14" } }
{ "name" : "Marshall","age":32,"job":"Javascript Programmer","gender":"male","salary": 25000}
{ "index" : {  "_id" : "15" } }
{ "name" : "King","age":33,"job":"Java Programmer","gender":"male","salary":28000 }
{ "index" : {  "_id" : "16" } }
{ "name" : "Mccarthy","age":21,"job":"Javascript Programmer","gender":"male","salary": 16000}
{ "index" : {  "_id" : "17" } }
{ "name" : "Goodwin","age":25,"job":"Javascript Programmer","gender":"male","salary": 16000}
{ "index" : {  "_id" : "18" } }
{ "name" : "Catherine","age":29,"job":"Javascript Programmer","gender":"female","salary": 20000}
{ "index" : {  "_id" : "19" } }
{ "name" : "Boone","age":30,"job":"DBA","gender":"male","salary": 30000}
{ "index" : {  "_id" : "20" } }
{ "name" : "Kathy","age":29,"job":"DBA","gender":"female","salary": 20000}

    # 多个 Metric 聚合，找到最低最高和平均工资
POST employees/_search
{
  "size": 0,
  "aggs": {
    "max_salary": {
      "max": {
        "field": "salary"
      }
    },
    "min_salary": {
      "min": {
        "field": "salary"
      }
    },
    "avg_salary": {
      "avg": {
        "field": "salary"
      }
    }
  }
}

    # Metric 聚合，找到最低的工资
POST employees/_search
{
  "size": 0,
  "aggs": {
    "min_salary": {
      "min": {
        "field":"salary"
      }
    }
  }
}

# Metric 聚合，找到最高的工资
POST employees/_search
{
  "size": 0,
  "aggs": {
    "max_salary": {
      "max": {
        "field":"salary"
      }
    }
  }
}

# 一个聚合，输出多值
POST employees/_search
{
  "size": 0,
  "aggs": {
    "stats_salary": {
      "stats": {
        "field":"salary"
      }
    }
  }
}

    Bucket - Terms & 数字范围

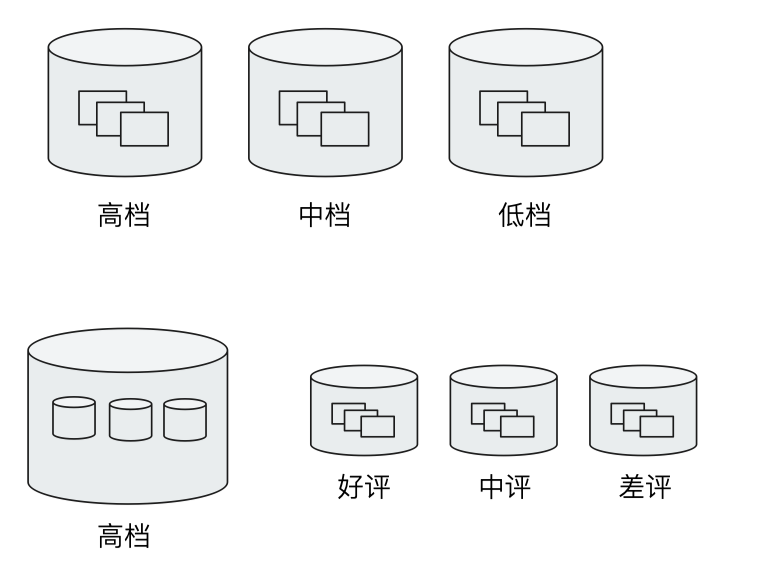

    Bucket

    按照⼀定的规则，将⽂档分配到不同的 桶中，从⽽达到分类的⽬的。ES 提供的 ⼀些常⻅见的 Bucket Aggregation:

    • terms
    • 数组类型：Range / Data Range，Histogram / Date Histogram
    • ⽀持嵌套：也就在桶⾥再做分桶

    Terms aggregation

    Terms aggretion 字段需要打开 fielddata，才能进行 Terms aggregation，keyword 默认支持 doc_values，Text 需要在 Mapping 中 enable。

    # 对keword 进行聚合
POST employees/_search
{
  "size": 0,
  "aggs": {
    "jobs": {
      "terms": {
        "field":"job.keyword"
      }
    }
  }
}


# 对 Text 字段进行 terms 聚合查询，失败
POST employees/_search
{
  "size": 0,
  "aggs": {
    "jobs": {
      "terms": {
        "field":"job"
      }
    }
  }
}

# 对 Text 字段打开 fielddata，支持terms aggregation
PUT employees/_mapping
{
  "properties" : {
    "job":{
       "type":     "text",
       "fielddata": true
    }
  }
}

# 对 Text 字段进行 terms 分词。分词后的terms
POST employees/_search
{
  "size": 0,
  "aggs": {
    "jobs": {
      "terms": {
        "field":"job"
      }
    }
  }
}

POST employees/_search
{
  "size": 0,
  "aggs": {
    "jobs": {
      "terms": {
        "field":"job.keyword"
      }
    }
  }
}

    Cardinality，类似 SQL 中的 Distinct

    # 对job.keyword 和 job 进行 terms 聚合，分桶的总数并不一样
POST employees/_search
{
  "size": 0,
  "aggs": {
    "cardinate": {
      "cardinality": {
        "field": "job"
      }
    }
  }
}

    Bucket Size & Top Hits Demo

    • 应⽤场景：当获取分桶后，桶内最匹配的顶部⽂档列表
    • Size：按年龄分桶，找出指定数据量的分桶信息
    • Top Hits：查看各个⼯种中，年纪最⼤的 3 名员⼯
    # 对性别的 keyword 进行聚合
POST employees/_search
{
  "size": 0,
  "aggs": {
    "gender": {
      "terms": {
        "field":"gender"
      }
    }
  }
}


#指定 bucket 的 size
POST employees/_search
{
  "size": 0,
  "aggs": {
    "ages_5": {
      "terms": {
        "field":"age",
        "size":3
      }
    }
  }
}



# 指定size，不同工种中，年纪最大的3个员工的具体信息
POST employees/_search
{
  "size": 0,
  "aggs": {
    "jobs": {
      "terms": {
        "field":"job.keyword"
      },
      "aggs":{
        "old_employee":{
          "top_hits":{
            "size":3,
            "sort":[
              {
                "age":{
                  "order":"desc"
                }
              }
            ]
          }
        }
      }
    }
  }
}

    Range & Histogram 聚合

    #Salary Ranges 分桶，可以自己定义 key
POST employees/_search
{
  "size": 0,
  "aggs": {
    "salary_range": {
      "range": {
        "field":"salary",
        "ranges":[
          {
            "to":10000
          },
          {
            "from":10000,
            "to":20000
          },
          {
            "key":">20000",
            "from":20000
          }
        ]
      }
    }
  }
}


#Salary Histogram,工资0到10万，以 5000一个区间进行分桶
POST employees/_search
{
  "size": 0,
  "aggs": {
    "salary_histrogram": {
      "histogram": {
        "field":"salary",
        "interval":5000,
        "extended_bounds":{
          "min":0,
          "max":100000

        }
      }
    }
  }
}

    多次嵌套

    # 嵌套聚合1，按照工作类型分桶，并统计工资信息
POST employees/_search
{
  "size": 0,
  "aggs": {
    "Job_salary_stats": {
      "terms": {
        "field": "job.keyword"
      },
      "aggs": {
        "salary": {
          "stats": {
            "field": "salary"
          }
        }
      }
    }
  }
}

# 多次嵌套。根据工作类型分桶，然后按照性别分桶，计算工资的统计信息
POST employees/_search
{
  "size": 0,
  "aggs": {
    "Job_gender_stats": {
      "terms": {
        "field": "job.keyword"
      },
      "aggs": {
        "gender_stats": {
          "terms": {
            "field": "gender"
          },
          "aggs": {
            "salary_stats": {
              "stats": {
                "field": "salary"
              }
            }
          }
        }
      }
    }
  }
}

    Pipeline 聚合分析

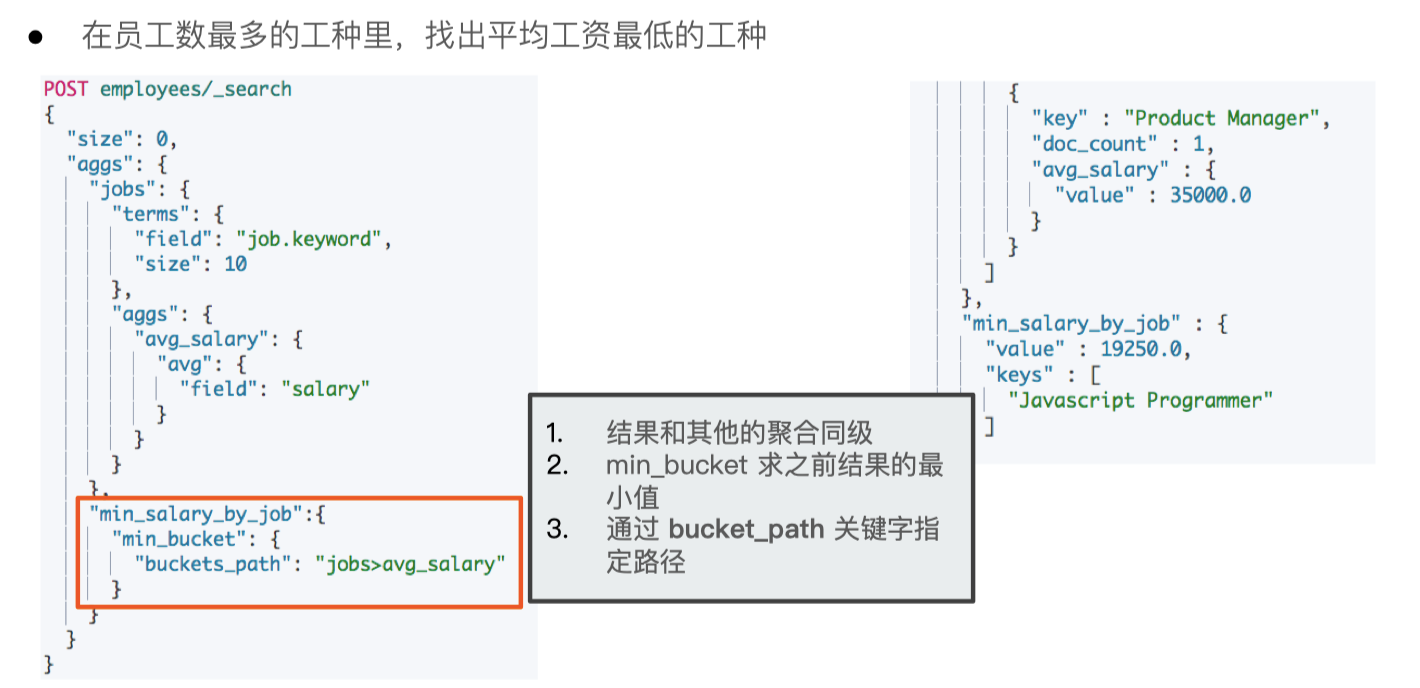

    Pipeline：min_bucket

    Parent Pipeline：Derivative

    # 平均工资最低的工作类型
POST employees/_search
{
  "size": 0,
  "aggs": {
    "jobs": {
      "terms": {
        "field": "job.keyword",
        "size": 10
      },
      "aggs": {
        "avg_salary": {
          "avg": {
            "field": "salary"
          }
        }
      }
    },
    "min_salary_by_job":{
      "min_bucket": {
        "buckets_path": "jobs>avg_salary"
      }
    }
  }
}


# 平均工资最高的工作类型
POST employees/_search
{
  "size": 0,
  "aggs": {
    "jobs": {
      "terms": {
        "field": "job.keyword",
        "size": 10
      },
      "aggs": {
        "avg_salary": {
          "avg": {
            "field": "salary"
          }
        }
      }
    },
    "max_salary_by_job":{
      "max_bucket": {
        "buckets_path": "jobs>avg_salary"
      }
    }
  }
}


# 平均工资的平均工资
POST employees/_search
{
  "size": 0,
  "aggs": {
    "jobs": {
      "terms": {
        "field": "job.keyword",
        "size": 10
      },
      "aggs": {
        "avg_salary": {
          "avg": {
            "field": "salary"
          }
        }
      }
    },
    "avg_salary_by_job":{
      "avg_bucket": {
        "buckets_path": "jobs>avg_salary"
      }
    }
  }
}


# 平均工资的统计分析
POST employees/_search
{
  "size": 0,
  "aggs": {
    "jobs": {
      "terms": {
        "field": "job.keyword",
        "size": 10
      },
      "aggs": {
        "avg_salary": {
          "avg": {
            "field": "salary"
          }
        }
      }
    },
    "stats_salary_by_job":{
      "stats_bucket": {
        "buckets_path": "jobs>avg_salary"
      }
    }
  }
}


# 平均工资的百分位数
POST employees/_search
{
  "size": 0,
  "aggs": {
    "jobs": {
      "terms": {
        "field": "job.keyword",
        "size": 10
      },
      "aggs": {
        "avg_salary": {
          "avg": {
            "field": "salary"
          }
        }
      }
    },
    "percentiles_salary_by_job":{
      "percentiles_bucket": {
        "buckets_path": "jobs>avg_salary"
      }
    }
  }
}

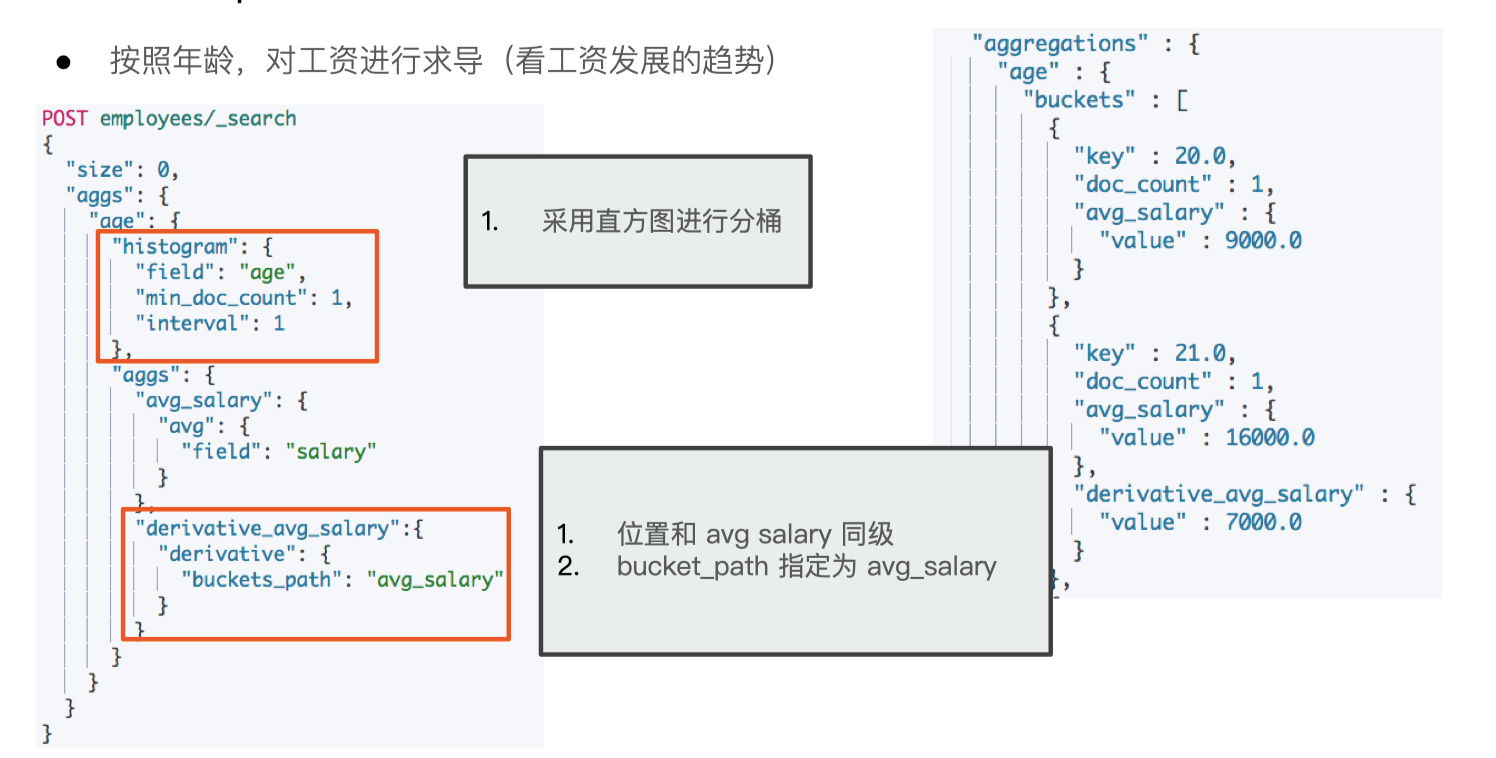

#按照年龄对平均工资求导
POST employees/_search
{
  "size": 0,
  "aggs": {
    "age": {
      "histogram": {
        "field": "age",
        "min_doc_count": 1,
        "interval": 1
      },
      "aggs": {
        "avg_salary": {
          "avg": {
            "field": "salary"
          }
        },
        "derivative_avg_salary":{
          "derivative": {
            "buckets_path": "avg_salary"
          }
        }
      }
    }
  }
}


#Cumulative_sum
POST employees/_search
{
  "size": 0,
  "aggs": {
    "age": {
      "histogram": {
        "field": "age",
        "min_doc_count": 1,
        "interval": 1
      },
      "aggs": {
        "avg_salary": {
          "avg": {
            "field": "salary"
          }
        },
        "cumulative_salary":{
          "cumulative_sum": {
            "buckets_path": "avg_salary"
          }
        }
      }
    }
  }
}

#Moving Function
POST employees/_search
{
  "size": 0,
  "aggs": {
    "age": {
      "histogram": {
        "field": "age",
        "min_doc_count": 1,
        "interval": 1
      },
      "aggs": {
        "avg_salary": {
          "avg": {
            "field": "salary"
          }
        },
        "moving_avg_salary":{
          "moving_fn": {
            "buckets_path": "avg_salary",
            "window":10,
            "script": "MovingFunctions.min(values)"
          }
        }
      }
    }
  }
}
