提取PDF表格
摘要：本文介绍一个提取PDF中的表格内容的程序。首先，程序给出使用示例，最后给出代码开发思路及细节。
作者：yooongchun
微信：18217235290
0.需求说明
- PDF中存在大量表格，需要从表格中提取出指定类型的表格，这些表格主要通过表头和表中的关键字来确定。
1.PDF示例
2.提取规则

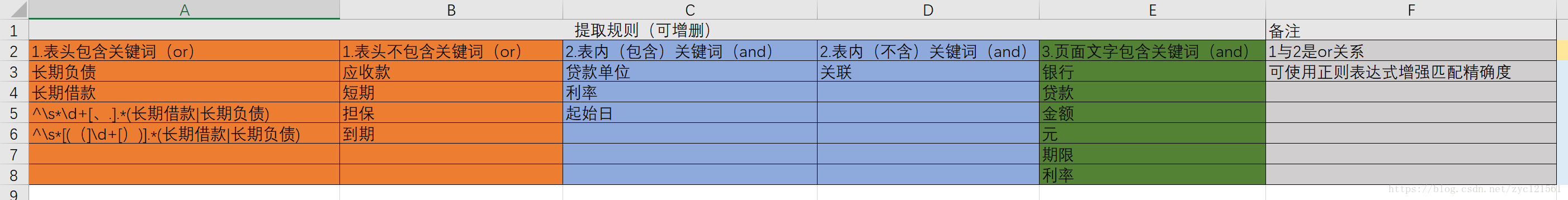

提取规则通过Excel指定，如下示例：
3.提取结果示例

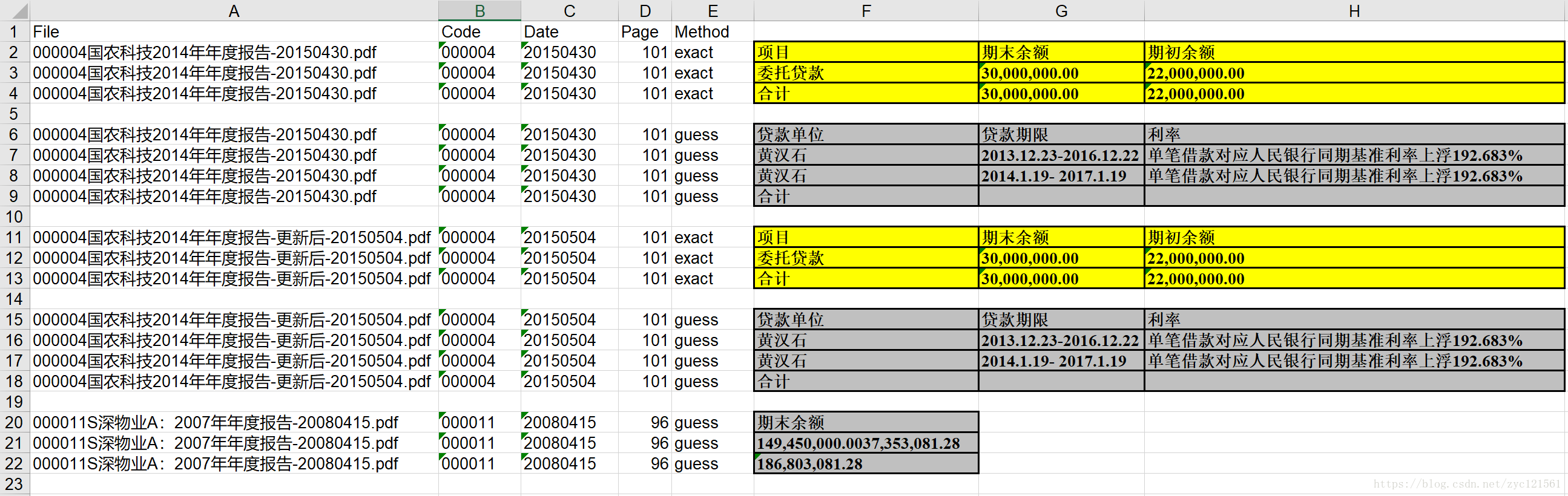

提取的结果保存在Excel中，结果如下：
4.使用方法
- 首先准备好
Demo.xlsx文件（下载），同时下载PDFparser.exe程序（下载），将二者放在同一个目录下，然后将PDF文件准备好放在任意文件夹xxx中，将xxx文件夹和以上两个文件放在同一目录下，双击运行程序即可。
5.代码说明
- 程序使用
pdfplumber模块进行PDF解析以获取表格和文本 - 程序使用
xlwt模块和xlrd模块进行Excel的读写 - 程序使用
多进程+多线程模式加快速度 - 程序使用
re模块来使用Python正则表达式
6.代码细节
-
PDF解析
# 该类用来实现PDF表格和文字内容的提取 class Extractor(object): def __init__(self, file_path, rules): ''' :param file_path:PDF file path :param rules: extract rules ''' self.file_path = file_path self.rules = rules # 加载PDF文件 def parse_pages(self): try: pages = [] pdf = pdfplumber.open(self.file_path) print('parse file:{} page num:{}'.format(os.path.basename(self.file_path), len(pdf.pages))) for index, page in enumerate(pdf.pages): tables = page.extract_tables() if len(tables) < 1: continue pages.append({'text': page.extract_text(), 'tables': tables, 'page': index + 1}) return pages except Exception as e: print(e) return None # 提取特定类型表头的表格，规则有rules参数指定 def extract_table_with_specific_header(self, pages): if pages is None or len(pages) < 1: # print('no-page...') return target_tables = [] # 遍历所有页面 for index, page in enumerate(pages): text = page['text'] tables = page['tables'] page_id = page['page'] - 1 lines = re.split(r' +', text) # 遍历当前页面的所有行 for ind, line in enumerate(lines): # 判定表头符合规则的表格 if sum([1 for rule in self.rules['in-header'] if re.search(rule, line)]) > 0 and sum([1 for rule in self.rules['not-in-header'] if re.search(rule, line)]) == 0: if ind >= len(lines) - 1: break cnt = ind + 1 next = lines[ind + 1] if ind < len(lines) - 2 and re.search(r'单位[：:]', next): next = lines[ind + 2] cnt += 1 for ti, table in enumerate(tables): if not table: continue first = ''.join([word for word in table[0] if word is not None]) # 表格是完整的情况 if first == re.sub(r's+', '', next): tables[ti] = False if index + 1 < len(pages) and len(pages[index + 1]['tables']) > 0: table_next = pages[index + 1]['tables'][0] fi = ''.join([item for item in table_next[0] if item is not None]) if re.sub(r's+', '', fi) in re.sub(r's+', '', pages[index + 1]['text'][1]): table += table_next target_tables.append({'page': page_id + 1, 'method': 'exact', 'table': table, 'table-id': str(page_id + 1) + str(ti + 1)}) # 表格可能不完整的情况 elif first in re.sub(r's+', '', next): tables[ti] = False if index + 1 < len(pages) and len(pages[index + 1]['tables']) > 0: table_next = pages[index + 1]['tables'][0] fi = ''.join([item for item in table_next[0] if item is not None]) if re.sub(r's+', '', fi) in re.sub(r's+', '', pages[index + 1]['text'][1]): table += table_next target_tables.append({'page': page_id + 1, 'method': 'guess', 'table': table, 'table-id': str(page_id + 1) + '-' + str(ti + 1)}) return target_tables # 提取表格中存在指定类型信息的表格，规则由参数rules指定 def extract_table_with_specific_info(self, pages): if pages is None or len(pages) < 1: # print('no-page...') return target_tables = [] for index, page in enumerate(pages): tables = page['tables'] page_id = page['page'] - 1 for ti, table in enumerate(tables): st = str(table) if len(self.rules['in-table']) == sum([1 for in_tab in self.rules['in-table'] if in_tab in st]): if len(self.rules['not-in-table']) == sum( [1 for not_tab in self.rules['not-in-table'] if not not_tab in st]): target_tables.append({'page': page_id + 1, 'method': 'content-in-table', 'table': table, 'table-id': str(page_id + 1) + str(ti + 1)}) return target_tables # 提取存在指定关键词的页面，关键词有rules指定 def extract_specific_page(self, pages): if pages is None or len(pages) < 1: # print('no-page...') return target_pages = [] for index, page in enumerate(pages): text = page['text'] page_id = page['page'] if len(self.rules['in-page']) == sum([1 for rule in self.rules['in-page'] if re.search(rule, text)]): target_pages.append({'page': page_id, 'text': text}) return target_pages # 执行以上所有过程，返回提取结果 def run(self): pages = self.parse_pages() if pages is None or len(pages) < 1: print('parse pdf error:', os.path.basename(self.file_path)) return try: target_1 = self.extract_table_with_specific_header(pages) target_2 = self.extract_table_with_specific_info(pages) target_3 = self.extract_specific_page(pages) tables = [] s = [] for table in target_1: if table['table-id'] not in s: s.append(table['table-id']) tables.append(table) for table in target_2: if table['table-id'] not in s: s.append(table['table-id']) tables.append(table) return tables, target_3 except Exception as e: print(e) -
加载Excel和缓存结果
# 该类用来加载Excel，遍历地址获取PDF文件路径及缓存结果 class Util(): def __init__(self, folder, out, demo): self.folder = folder self.out = out self.demo = demo # 加载Demo文件，获取rules def load_demo(self): print('load demo Excel:', os.path.basename(self.demo)) book = xlrd.open_workbook(self.demo) sheet = book.sheet_by_index(0) in_header = sheet.col_values(0, 2, sheet.nrows) not_in_header = sheet.col_values(1, 2, sheet.nrows) in_table = sheet.col_values(2, 2, sheet.nrows) not_in_table = sheet.col_values(3, 2, sheet.nrows) in_page = sheet.col_values(4, 2, sheet.nrows) rules = {'in-header': in_header, 'not-in-header': not_in_header, 'in-table': in_table, 'not-in-table': not_in_table, 'in-page': in_page} for k, v in rules.items(): rules[k] = [i for i in v if not re.sub(r's+', '', i) == ''] return rules # 加载PDF文件，采用迭代遍历 def load_folder(self): print('load folder:', self.folder) paths = [] for dirpath, dirnames, filenames in os.walk(self.folder): for file in filenames: path = os.path.join(dirpath, file) if os.path.isfile(path) and ( os.path.splitext(path)[1] == '.pdf' or os.path.splitext(path)[1] == '.PDF'): paths.append(path) return paths # 缓存结果 def save_tmp(self, info, name, code, year): print('save tmp file:', name) if not os.path.isdir('tmp'): os.mkdir('tmp') tables = info[0] pages = info[1] # Excel样式 style = xlwt.XFStyle() # background color pattern = xlwt.Pattern() pattern.pattern = xlwt.Pattern.SOLID_PATTERN pattern.pattern_fore_colour = 5 style.pattern = pattern # border borders = xlwt.Borders() borders.left = xlwt.Borders.THICK borders.right = xlwt.Borders.THICK borders.top = xlwt.Borders.THICK borders.bottom = xlwt.Borders.THICK style.borders = borders # font font = xlwt.Font() font.name = 'Times New Roman' font.bold = True font.underline = False font.italic = False style.font = font # sheet style-2 style2 = xlwt.XFStyle() # background color pattern = xlwt.Pattern() pattern.pattern = xlwt.Pattern.SOLID_PATTERN pattern.pattern_fore_colour = 22 style2.pattern = pattern # border borders = xlwt.Borders() borders.left = xlwt.Borders.THICK borders.right = xlwt.Borders.THICK borders.top = xlwt.Borders.THICK borders.bottom = xlwt.Borders.THICK style2.borders = borders # font font = xlwt.Font() font.name = 'Times New Roman' font.bold = True font.underline = False font.italic = False style2.font = font # sheet style-3 style3 = xlwt.XFStyle() # background color pattern2 = xlwt.Pattern() pattern2.pattern = xlwt.Pattern.SOLID_PATTERN pattern2.pattern_fore_colour = 3 style3.pattern = pattern2 # border borders = xlwt.Borders() borders.left = xlwt.Borders.THICK borders.right = xlwt.Borders.THICK borders.top = xlwt.Borders.THICK borders.bottom = xlwt.Borders.THICK style3.borders = borders # font font = xlwt.Font() font.name = 'Times New Roman' font.bold = True font.underline = False font.italic = False style3.font = font # 将数据写如Excel book = xlwt.Workbook() sheet1 = book.add_sheet('tables') sheet2 = book.add_sheet('pages') for ind, page in enumerate(pages): page_num = page['page'] text = page['text'] sheet2.write(ind, 0, name) sheet2.write(ind, 1, code) sheet2.write(ind, 2, year) sheet2.write(ind, 3, page_num) sheet2.write(ind, 4, 'search page') sheet2.write(ind, 5, text, style) # save table i = 0 for ti, table in enumerate(tables): page = table['page'] method = table['method'] table_content = table['table'] if method == 'exact': sty = style elif method == 'guess': sty = style2 else: sty = style3 for index, row in enumerate(table_content): sheet1.write(i, 0, name) sheet1.write(i, 1, code) sheet1.write(i, 2, year) sheet1.write(i, 3, page) sheet1.write(i, 4, method) for ind, one in enumerate(row): sheet1.write(i, 5 + ind, one if one is not None else '', sty) i += 1 i += 1 book.save('tmp\' + name + '.tmp.xls') -
执行提取的函数
# 单个文件运行的完整流程，从加载文件到缓存结果的全过程，如果只想使用单线程运行程序，则在主函数中调用该函数即可 def run(rules, file, util): extractor = Extractor(file, rules) info = extractor.run() code = re.findall(r'd{6}', os.path.basename(file))[0] year = re.findall(r'd{8}', os.path.basename(file))[0] if info is None or len(info[0]) < 1: with open('noResult.txt', 'a', encoding='utf-8') as fp: fp.write(file + ' ') else: util.save_tmp(info, os.path.basename(file), code, year) -
多进程+多线程
# ------------------- # 以下两个函数是为了加快执行速度而启用的多线程+多进程模式，计算密集型任务状态下进程越多越好（不多于机器CPU核心数） # ----------------- # 多线程：每次会启动跟files数量相对应的线程来执行，但只能执行在一个CPU核心中 # multiple threads def batch_processor(func, rules, files, util): thread_pool = [] for index, file in enumerate(files): th = threading.Thread(target=func, args=(rules, file, util)) # print('running thread:', th.name) th.start() thread_pool.append(th) for th in thread_pool: # print('waiting for thread:', th.name) th.join() # 多进程：启动4个进程执行，每个进程中运行多线程，CPU有几个核心就使用几个进程，一般机器多为双核心四进程，此时4进程可占满CPU运行，效能最大 # multiple processors def multi_processor_run(func, sub_func, files, rules, util): pool = multiprocessing.Pool(processes=4) cnt = 0 batch_size = 5 while cnt < len(files): rear = cnt + batch_size if rear > len(files): rear = len(files) batch = files[cnt + 0:rear] pool.apply_async(func, (sub_func, rules, batch, util)) cnt += batch_size pool.close() pool.join() -
整理结果并保存
# 该函数将缓存在本地目录tmp文件夹下的所有临时Excel文件结果整合到一个Excel中 # re-format result def re_format(sheet_size): print('re-format file...') files = os.listdir('tmp') paths = [] new_book = xlwt.Workbook() for file in files: if os.path.isfile(os.path.join('tmp', file)) and '.tmp.xls' in file: paths.append(os.path.join('tmp', file)) style = xlwt.XFStyle() # background color pattern = xlwt.Pattern() pattern.pattern = xlwt.Pattern.SOLID_PATTERN pattern.pattern_fore_colour = 5 style.pattern = pattern # border borders = xlwt.Borders() borders.left = xlwt.Borders.THICK borders.right = xlwt.Borders.THICK borders.top = xlwt.Borders.THICK borders.bottom = xlwt.Borders.THICK style.borders = borders # font font = xlwt.Font() font.name = 'Times New Roman' font.bold = True font.underline = False font.italic = False style.font = font # sheet style-2 style2 = xlwt.XFStyle() # background color pattern = xlwt.Pattern() pattern.pattern = xlwt.Pattern.SOLID_PATTERN pattern.pattern_fore_colour = 22 style2.pattern = pattern # border borders = xlwt.Borders() borders.left = xlwt.Borders.THICK borders.right = xlwt.Borders.THICK borders.top = xlwt.Borders.THICK borders.bottom = xlwt.Borders.THICK style2.borders = borders # font font = xlwt.Font() font.name = 'Times New Roman' font.bold = True font.underline = False font.italic = False style2.font = font # sheet style-3 style3 = xlwt.XFStyle() # background color pattern2 = xlwt.Pattern() pattern2.pattern = xlwt.Pattern.SOLID_PATTERN pattern2.pattern_fore_colour = 3 style3.pattern = pattern2 # border borders = xlwt.Borders() borders.left = xlwt.Borders.THICK borders.right = xlwt.Borders.THICK borders.top = xlwt.Borders.THICK borders.bottom = xlwt.Borders.THICK style3.borders = borders # font font = xlwt.Font() font.name = 'Times New Roman' font.bold = True font.underline = False font.italic = False style3.font = font tab_cnt = 1 page_cnt = 1 tab_rows = 0 page_rows = 0 sheet2 = new_book.add_sheet('pages-' + str(0)) sheet1 = new_book.add_sheet('tables-' + str(0)) sheet1.write(0, 0, 'File') sheet1.write(0, 1, 'Code') sheet1.write(0, 2, 'Date') sheet1.write(0, 3, 'Page') sheet1.write(0, 4, 'Method') sheet2.write(0, 0, 'File') sheet2.write(0, 1, 'Code') sheet2.write(0, 2, 'Date') sheet2.write(0, 3, 'Page') sheet2.write(0, 4, 'Method') for index, file in enumerate(paths): book = xlrd.open_workbook(file) sheet = book.sheet_by_name('tables') sheet_pages = book.sheet_by_name('pages') tab_rows += sheet.nrows page_rows += sheet_pages.nrows for row in range(sheet.nrows): if len(sheet.row_values(row)) < 5: sty1 = None elif sheet.row_values(row)[4] == 'exact': sty1 = style elif sheet.row_values(row)[4] == 'guess': sty1 = style2 elif sheet.row_values(row)[4] == 'content-in-table': sty1 = style3 else: sty1 = None for col, val in enumerate(sheet.row_values(row)): if col > 4: if sty1 is not None: sheet1.write(tab_cnt, col, val, sty1) else: sheet1.write(tab_cnt, col, val) else: sheet1.write(tab_cnt, col, val) tab_cnt += 1 tab_cnt += 1 for row in range(sheet_pages.nrows): if len(sheet_pages.row_values(row)) < 5: sty2 = None elif sheet_pages.row_values(row)[4] == 'exact': sty2 = style elif sheet_pages.row_values(row)[4] == 'guess': sty2 = style2 elif sheet_pages.row_values(row)[4] == 'content-in-table': sty2 = style3 else: sty2 = None for col, val in enumerate(sheet_pages.row_values(row)): if col > 4: if sty2 is not None: sheet2.write(page_cnt, col, val, sty2) else: sheet2.write(page_cnt, col, val) else: sheet2.write(page_cnt, col, val) page_cnt += 1 page_cnt += 1 if tab_rows >= sheet_size: tab_rows = 0 tab_cnt = 1 sheet1 = new_book.add_sheet('tables-' + str(index)) sheet1.write(0, 0, 'File') sheet1.write(0, 1, 'Code') sheet1.write(0, 2, 'Date') sheet1.write(0, 3, 'Page') sheet1.write(0, 4, 'Method') if page_rows >= sheet_size: page_rows = 0 page_cnt = 1 sheet2 = new_book.add_sheet('pages-' + str(index)) sheet2.write(0, 0, 'File') sheet2.write(0, 1, 'Code') sheet2.write(0, 2, 'Date') sheet2.write(0, 3, 'Page') sheet2.write(0, 4, 'Method') new_book.save('tables.xls') -
函数入口
# 程序执行入口：主函数 if __name__ == '__main__': # 此命令是为在Windows环境下打包exe时正确引入多进程模块而添加的，在Python解释器中运行代码这一行是不必要的，当然添加之后也无妨 multiprocessing.freeze_support() # 程序运行需要的参数 # paras base_dir = r'./' # 程序工作目录设定为本程序所在的目录 out_path = base_dir + r' esult.xls' # 输出结果文件名称 demo = base_dir + r'Demo.xlsx' # Demo文件名称 # 新建noResult.txt文件，用来保存没有结果的PDF文件名称 with open('noResult.txt', 'w', encoding='utf-8')as fp: fp.write(str(datetime.now()) + ' ') # 初始化Util类 util = Util(base_dir + '\test', out_path, demo) rules = util.load_demo() folder = util.load_folder() # 执行多进程，，但仅执行单线程模式时这里可替换为run函数 multi_processor_run(batch_processor, run, folder, rules, util) # 保存结果：5000代表每个Excel的单个sheet最多5000行，超过则会新建sheet # save... re_format(5000) # 移除临时文件，这些临时文件在程序运行过程中会保存在当前目录的tmp文件夹内，其中每个Excel文件保存的是单个PDF文件的结果，最终这些结果将会通过re_format函数整合到一个Excel中，当想要保留这些结果时，可将下面一行代码注释掉 shutil.rmtree('tmp')
